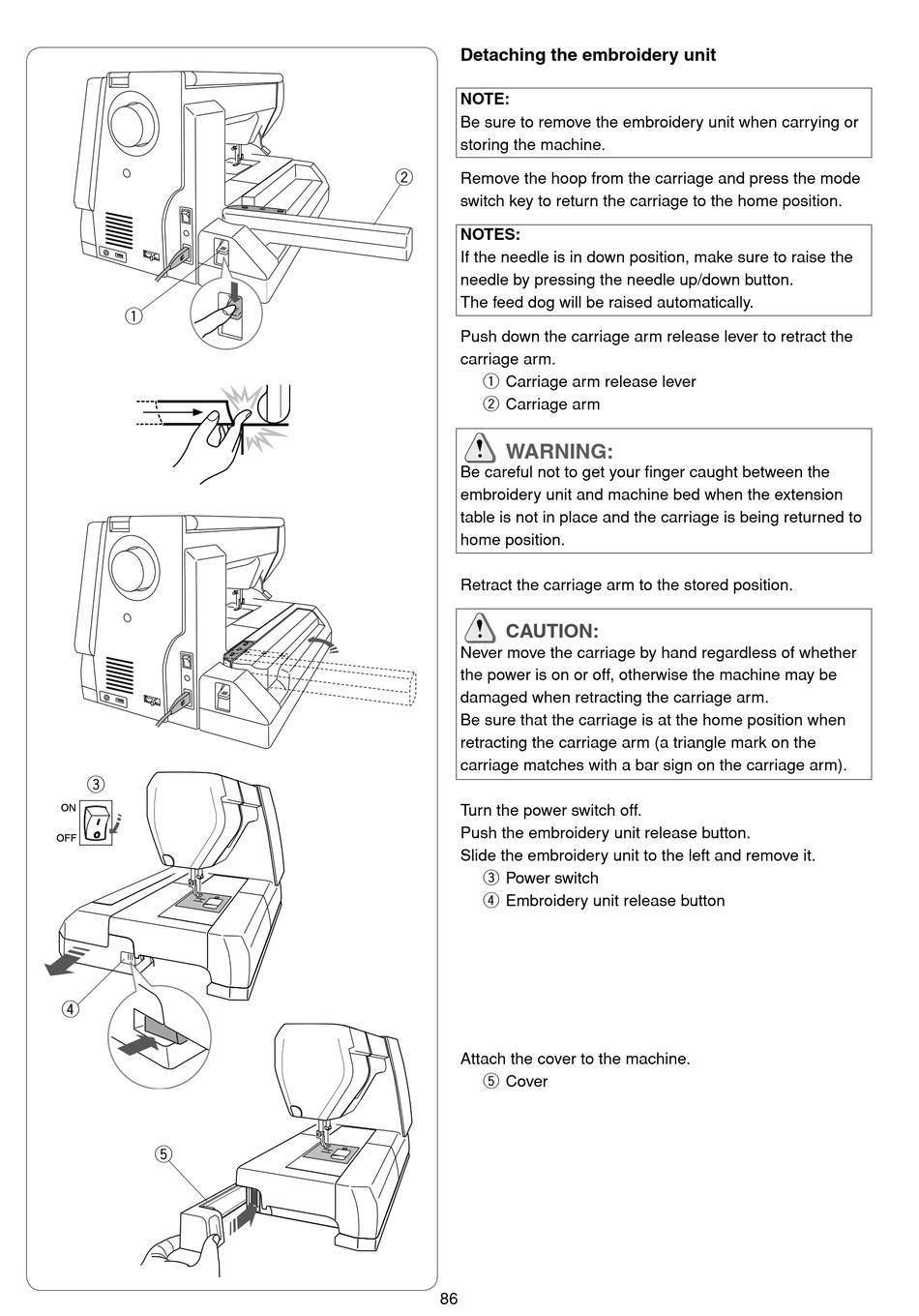

Detaching the embroidery unit

NOTE:
Be sure to remove the embroidery unit when carrying or
storing the machine.
w
Remove the hoop from the carriage and press the mode
switch key to return the carriage to the home position.
NOTES:
If the needle is in down position, make sure to raise the
needle by pressing the needle up/down button.
The feed dog will be raised automatically.
Push down the carriage arm release lever to retract the
carriage arm.
q Carriage arm release lever
w Carriage arm
WARNING:
Be careful not to get your finger caught between the
embroidery unit and machine bed when the extension
table is not in place and the carriage is being returned to
home position.
Retract the carriage arm to the stored position.
CAUTION:
Never move the carriage by hand regardless of whether
the power is on or off, otherwise the machine may be
damaged when retracting the carriage arm.
Be sure that the carriage is at the home position when
retracting the carriage arm (a triangle mark on the
carriage matches with a bar sign on the carriage arm).
Turn the power switch off.
Push the embroidery unit release button.
Slide the embroidery unit to the left and remove it.
e Power switch
r Embroidery unit release button
Attach the cover to the machine.
t Cover
