q
w
Opening size
e
r

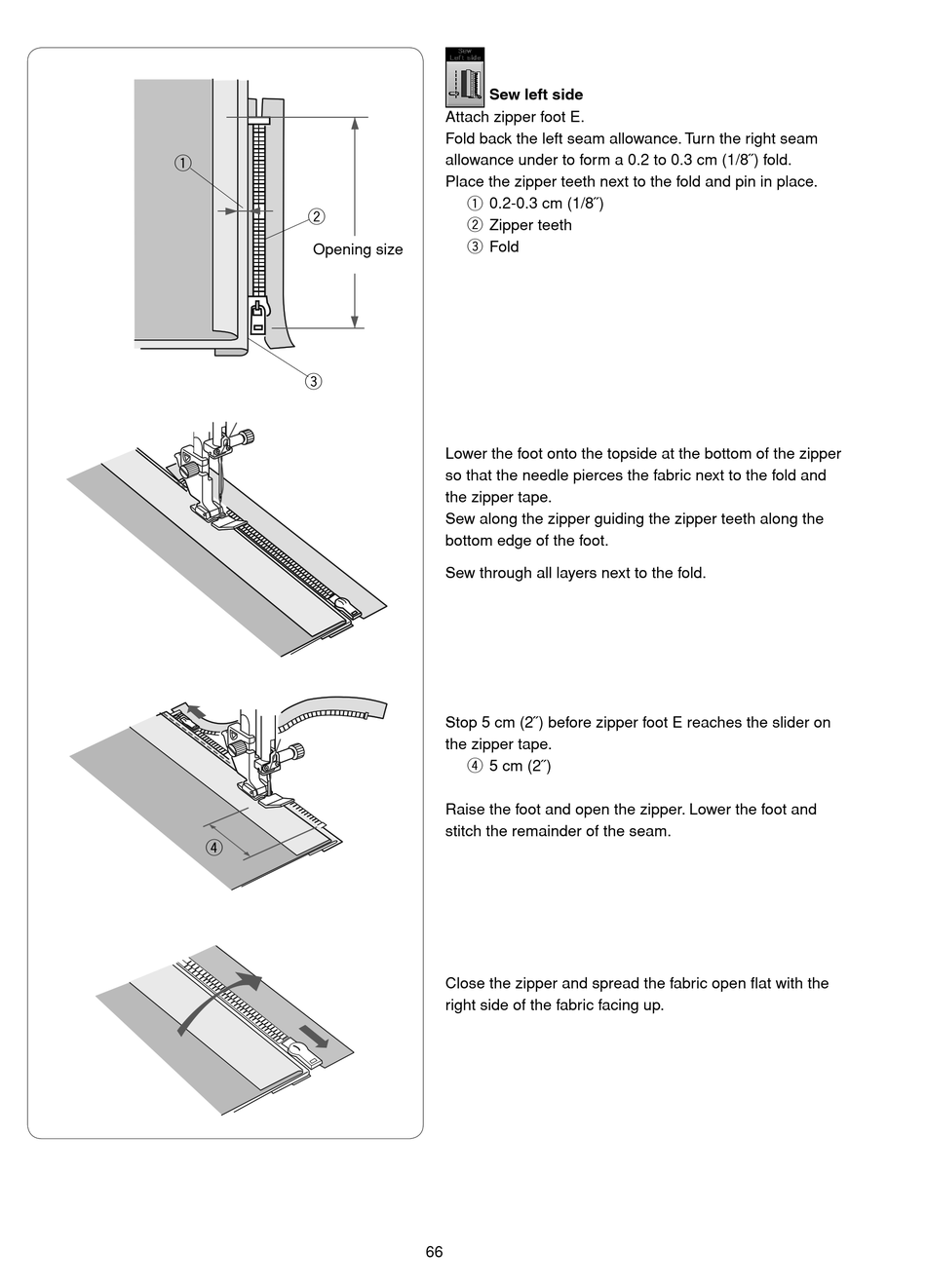

Sew left side
Attach zipper foot E.
Fold back the left seam allowance. Turn the right seam
allowance under to form a 0.2 to 0.3 cm (1/8˝) fold.
Place the zipper teeth next to the fold and pin in place.
q 0.2-0.3 cm (1/8˝)
w Zipper teeth
e Fold
Lower the foot onto the topside at the bottom of the zipper
so that the needle pierces the fabric next to the fold and
the zipper tape.
Sew along the zipper guiding the zipper teeth along the
bottom edge of the foot.
Sew through all layers next to the fold.
Stop 5 cm (2˝) before zipper foot E reaches the slider on
the zipper tape.
r 5 cm (2˝)
Raise the foot and open the zipper. Lower the foot and
stitch the remainder of the seam.
Close the zipper and spread the fabric open flat with the
right side of the fabric facing up.
66
