q
w
e
r
t
i
u
y
!4
q
w
e
r
t
y
o
u
i
o
!0
!1
!2
!1
!0
!3
!4
!2
!3

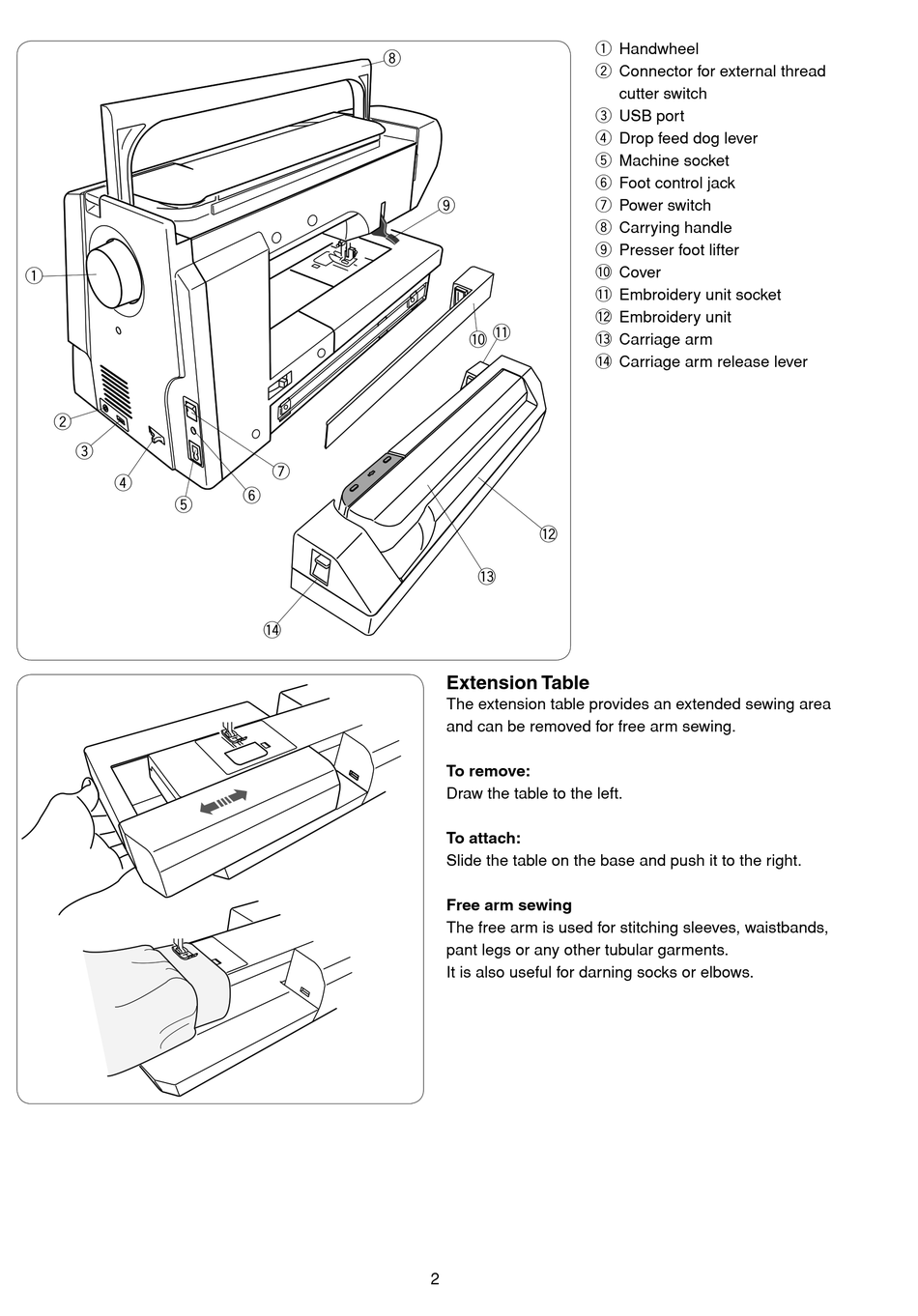

Extension Table

The extension table provides an extended sewing area
and can be removed for free arm sewing.
To remove:
Draw the table to the left.
To attach:
Slide the table on the base and push it to the right.
Free arm sewing
The free arm is used for stitching sleeves, waistbands,
pant legs or any other tubular garments.
It is also useful for darning socks or elbows.
2
Handwheel
Connector for external thread
cutter switch
USB port
Drop feed dog lever
Machine socket
Foot control jack
Power switch
Carrying handle
Presser foot lifter
Cover
Embroidery unit socket
Embroidery unit
Carriage arm
Carriage arm release lever
