q
r
e

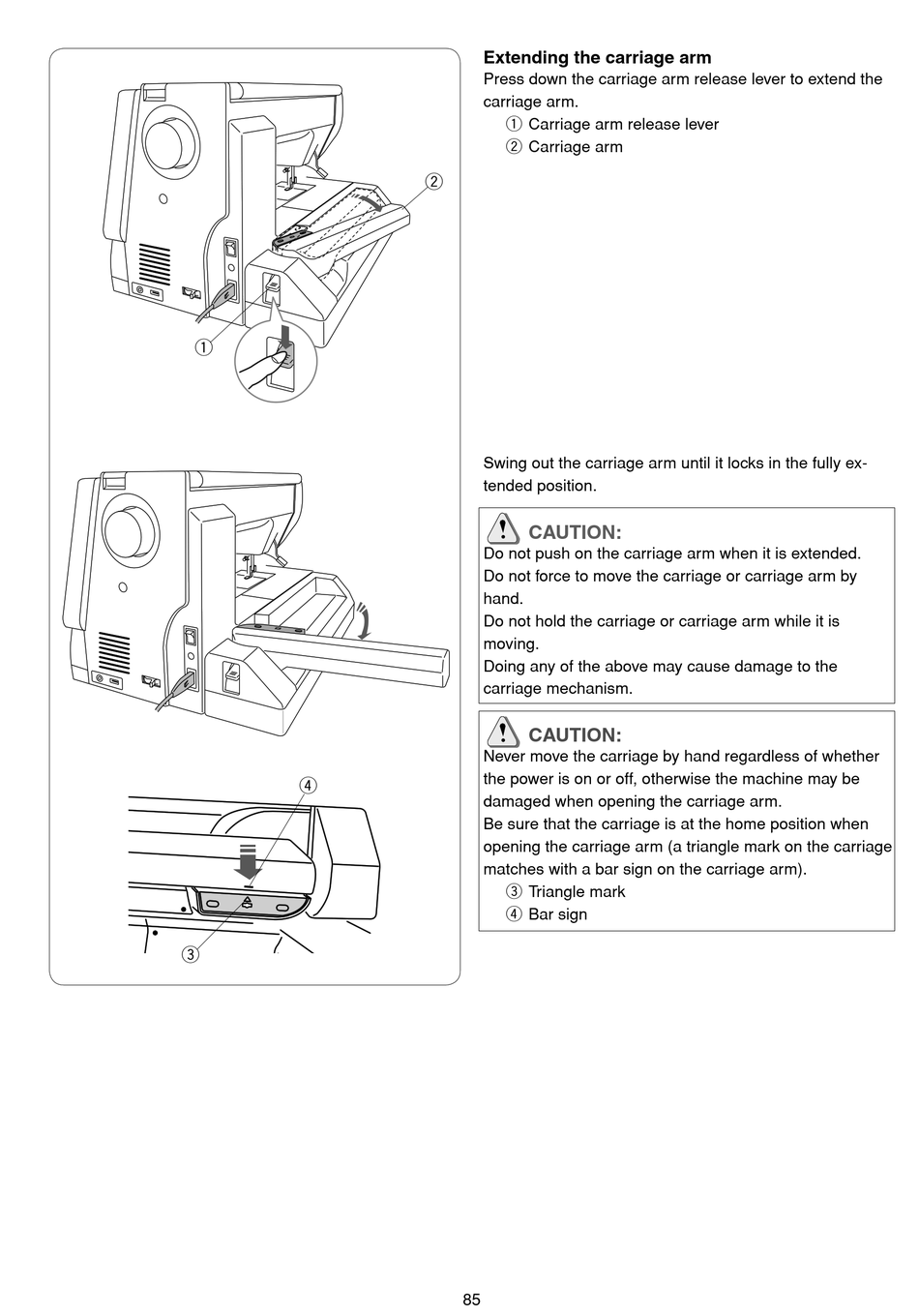

Extending the carriage arm

Press down the carriage arm release lever to extend the
carriage arm.
q Carriage arm release lever
w Carriage arm
w
Swing out the carriage arm until it locks in the fully ex-
tended position.
CAUTION:
Do not push on the carriage arm when it is extended.
Do not force to move the carriage or carriage arm by
hand.
Do not hold the carriage or carriage arm while it is
moving.
Doing any of the above may cause damage to the
carriage mechanism.
CAUTION:
Never move the carriage by hand regardless of whether
the power is on or off, otherwise the machine may be
damaged when opening the carriage arm.
Be sure that the carriage is at the home position when
opening the carriage arm (a triangle mark on the carriage
matches with a bar sign on the carriage arm).
e Triangle mark
r Bar sign
85
