25 cm
(10˝)
q
w
e
57.5 cm
(22-5/8˝)
r

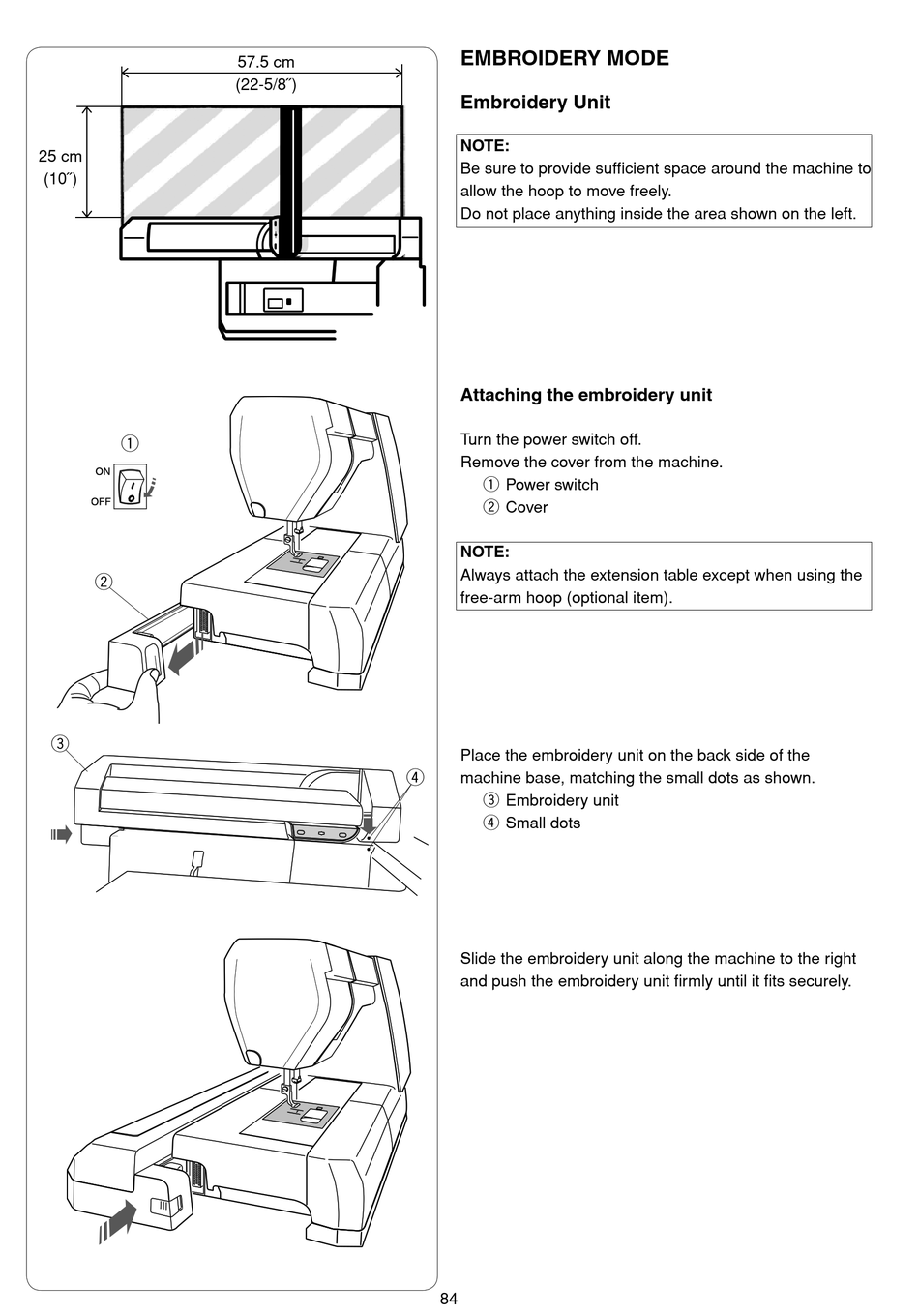

EMBROIDERY MODE
Embroidery Unit
NOTE:
Be sure to provide sufficient space around the machine to
allow the hoop to move freely.
Do not place anything inside the area shown on the left.

Attaching the embroidery unit

Turn the power switch off.
Remove the cover from the machine.
q Power switch
w Cover
NOTE:
Always attach the extension table except when using the
free-arm hoop (optional item).
Place the embroidery unit on the back side of the
machine base, matching the small dots as shown.
e Embroidery unit
r Small dots
Slide the embroidery unit along the machine to the right
and push the embroidery unit firmly until it fits securely.
84
