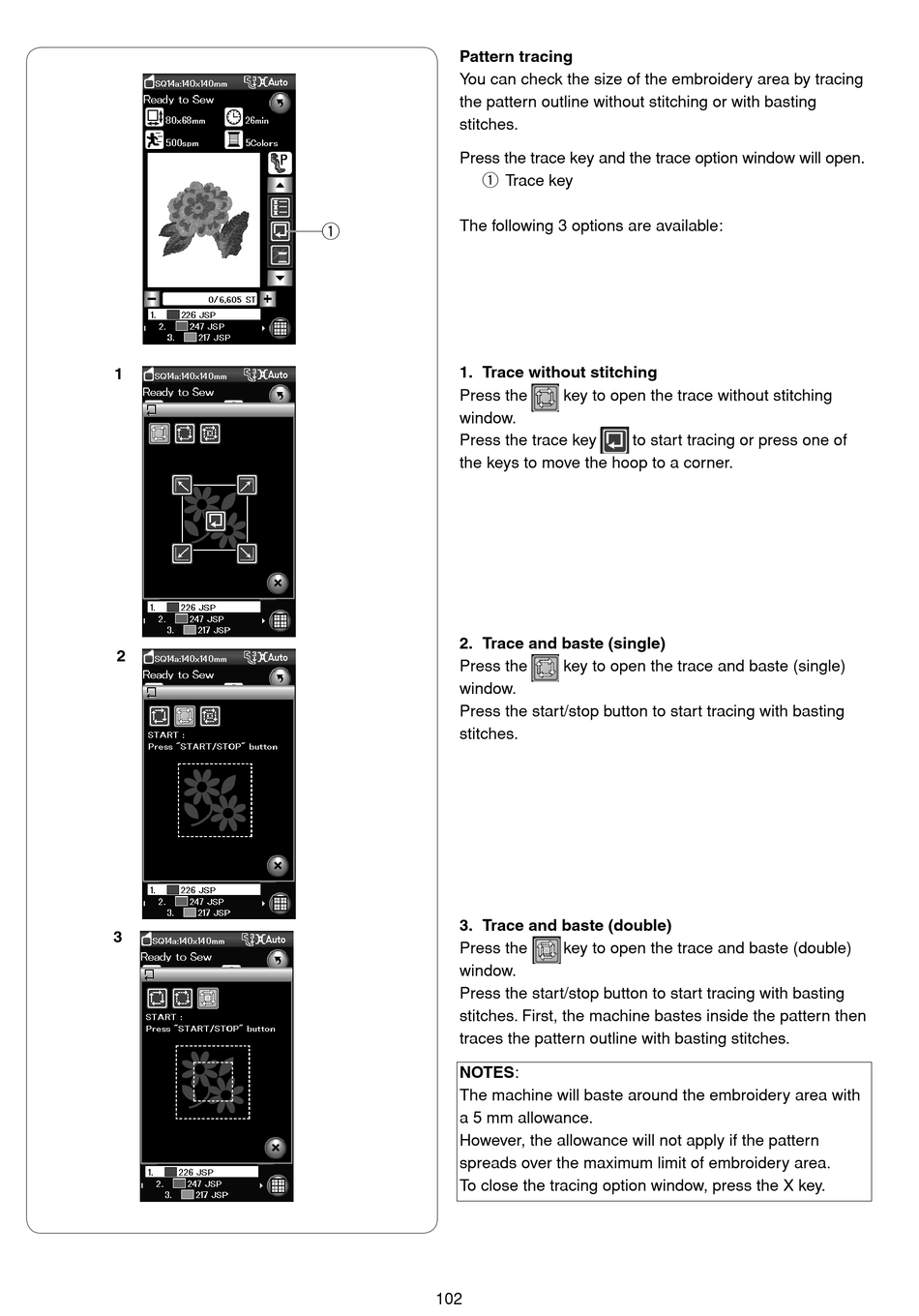

Pattern tracing

You can check the size of the embroidery area by tracing

the pattern outline without stitching or with basting

stitches.

Press the trace key and the trace option window will open.

q Trace key

The following 3 options are available:

1. Trace without stitching

Press the

window.

Press the trace key

the keys to move the hoop to a corner.

2. Trace and baste (single)

Press the

window.

Press the start/stop button to start tracing with basting

stitches.

3. Trace and baste (double)

Press the

window.

Press the start/stop button to start tracing with basting

stitches. First, the machine bastes inside the pattern then

traces the pattern outline with basting stitches.

NOTES:

The machine will baste around the embroidery area with

a 5 mm allowance.

However, the allowance will not apply if the pattern

spreads over the maximum limit of embroidery area.

To close the tracing option window, press the X key.

102

key to open the trace without stitching

to start tracing or press one of

key to open the trace and baste (single)

key to open the trace and baste (double)
