ELNA eXpressive 860 Instruction Manual page 107

q
r
y
w e
t
u
i
o
103

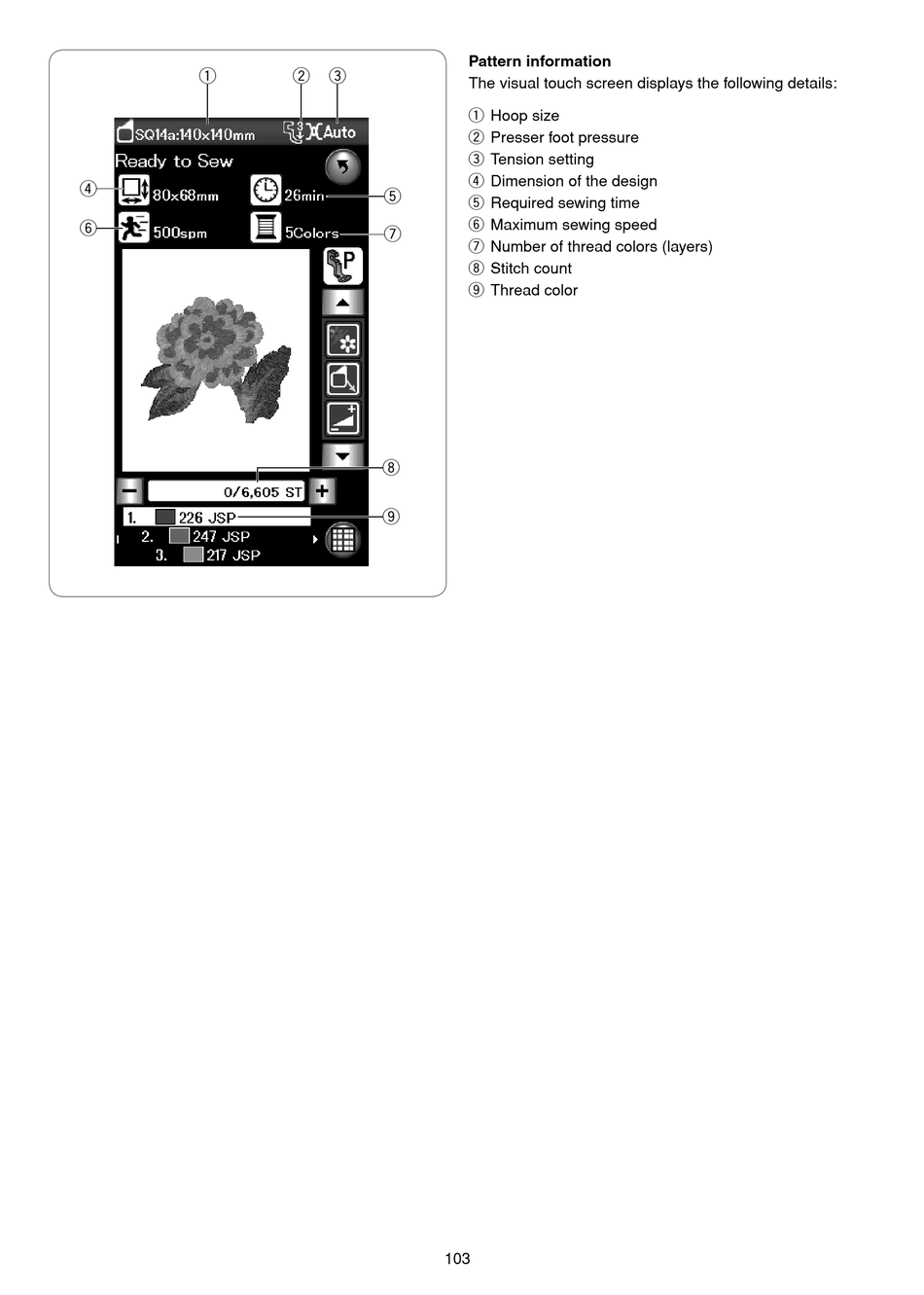

Pattern information
The visual touch screen displays the following details:
q Hoop size
w Presser foot pressure
e Tension setting
r Dimension of the design
t Required sewing time
y Maximum sewing speed
u Number of thread colors (layers)
i Stitch count
o Thread color
