When you first open the Control window the software automatically gets the

status of the system, including the security access settings.

Communication Error

If a Communication Error box appears when running the software – see Figure

51.

Check that:

The RS232 Serial cable is connected to the Serial port of the computer

and the RJ11 Service port of Smart 16 IP.

The Com Port settings in Options / Com Port are set correctly. After

changing the Com port restart the Control software.

From the View menu choose to display:

All computers, or only active switched on computers.

The Legend

The toolbar

Selecting a computer

To select a computer:

Click on the computers icon. The system switches to that computer. The

connected icon appears with a red background

selected computer from the keyboard and mouse connected to the Smart Switch.

The toolbar buttons are explained below.

OPERATING GUIDE

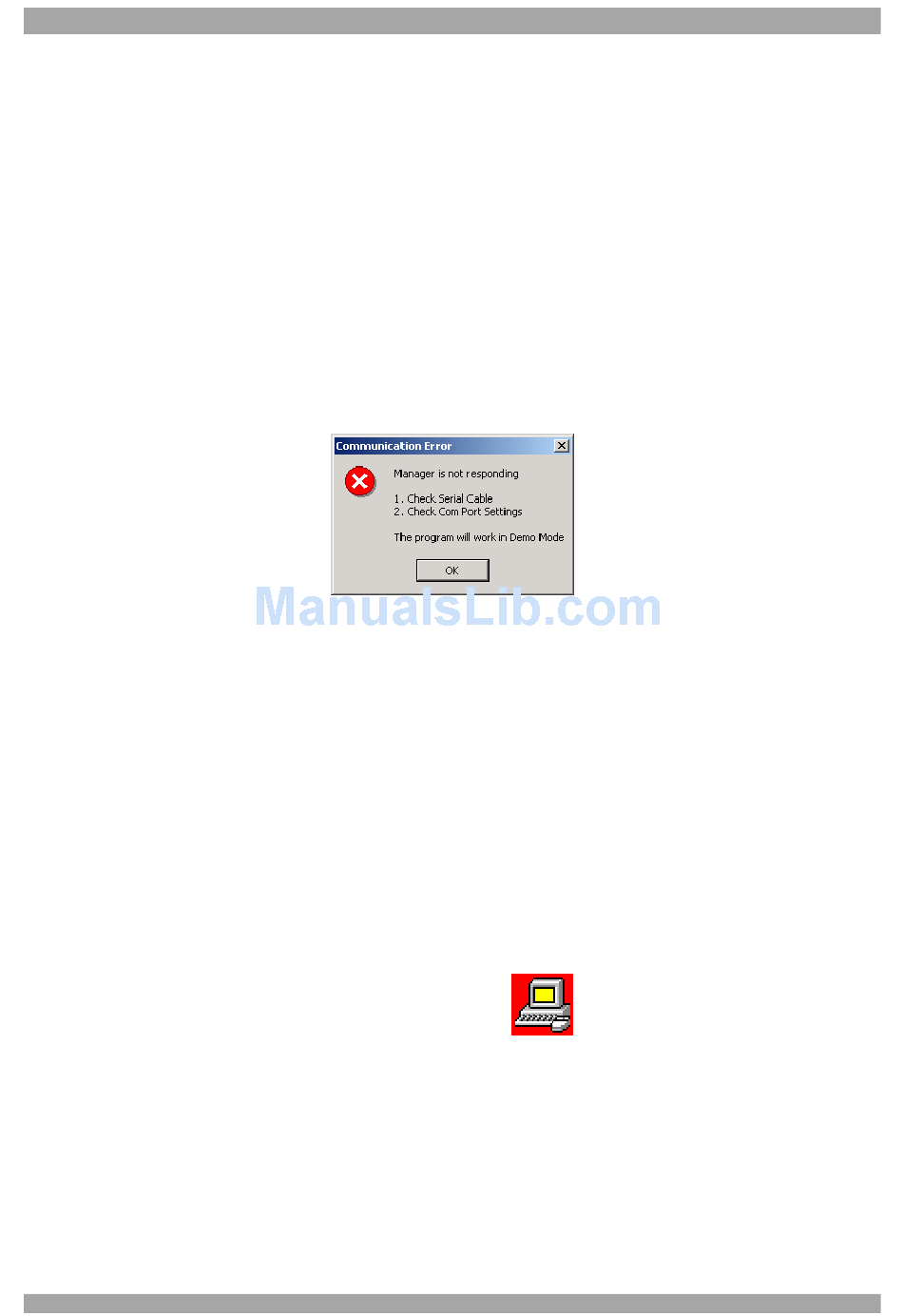

Figure 51 Communication Error

. Control and monitor the
