Minicom Smart CAT5 Switch 16 IP Operating Manual

Hide thumbs Also See for Smart CAT5 Switch 16 IP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual, Installation Manual
Smart CAT5 Switch 16 IP
Supported by:
Technology Corporation
International HQ
Jerusalem, Israel
Tel: + 972 2 535 9666
minicom@minicom.com
www.minicom.com

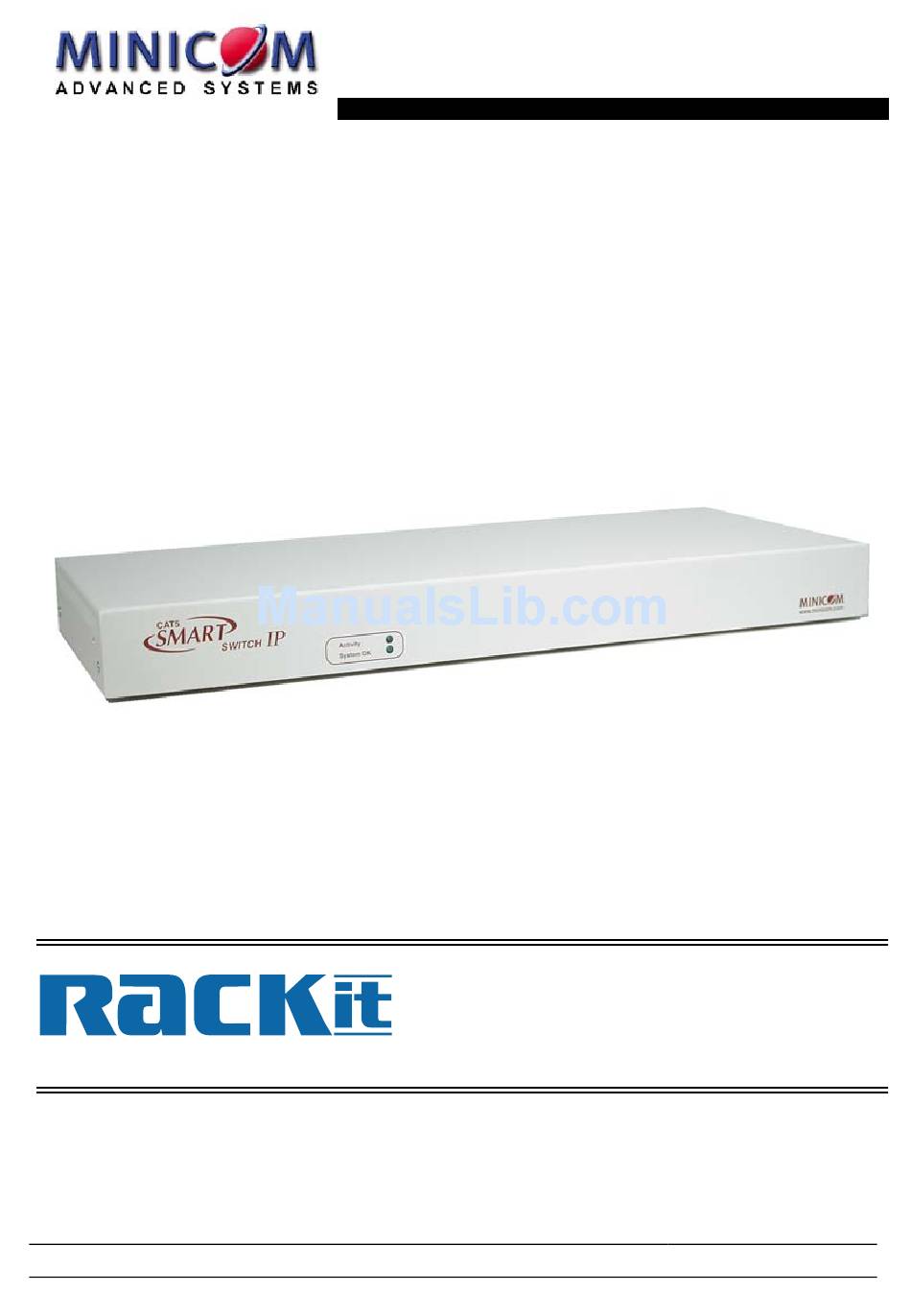

Operating Guide
®
North American HQ
Linden, New Jersey
Tel: + 1 908 4862100
info.usa@minicom.com
Rackit
274 Madison Avenue, New York, NY 10016
Tel: (212) 679-0050 • Fax: (212) 679-0040
1 . 8 0 0 . 6 3 6 . 3 4 3 4
European HQ
Dübendorf, Switzerland
Tel: + 41 1 823 8000
info.europe@minicom.com
Customer support - support@minicom.com
Technology Corporation
®
Italy
Rome
Tel: + 39 06 8209 7902
info.italy@minicom.com
5UM20114 V1.3 12/03
