4. Set the port settings to the following values:
·
Bits/second - 115200
·
Data bits - 8
·
Parity - None
·
Stop bits - 1
·
Flow Control - None
5. Click OK. The Hyperterminal appears. See Figure 3.
6. Press Enter. Some device information and a prompt appear.
7. Type config and press Enter.
be disabled or enabled. Disable DHCP to configure a static IP address.
can change the IP address, net mask and default gateway. Pressing
Enter without entering values keeps the default values. To contact
Smart 16 IP from outside the LAN configure a gateway. To remove an
already configured gateway, type 0.0.0.0.
The last question – enable IP access control – concerns switching IP packet
filtering on or off. This can re-enable access to Smart 16 IP after an incorrect
IP access configuration has been activated. Page 39 has more information on
IP access control.
8. Configure the network card parameters:
·
Auto or 10 or 100 Mbit/sec
·
Auto or Half or Full Duplex
Match the network parameters to the network switch to which the Smart Smart
16 IP connects to.
9. Confirm the settings. Smart 16 IP resets the configuration.
OPERATING GUIDE

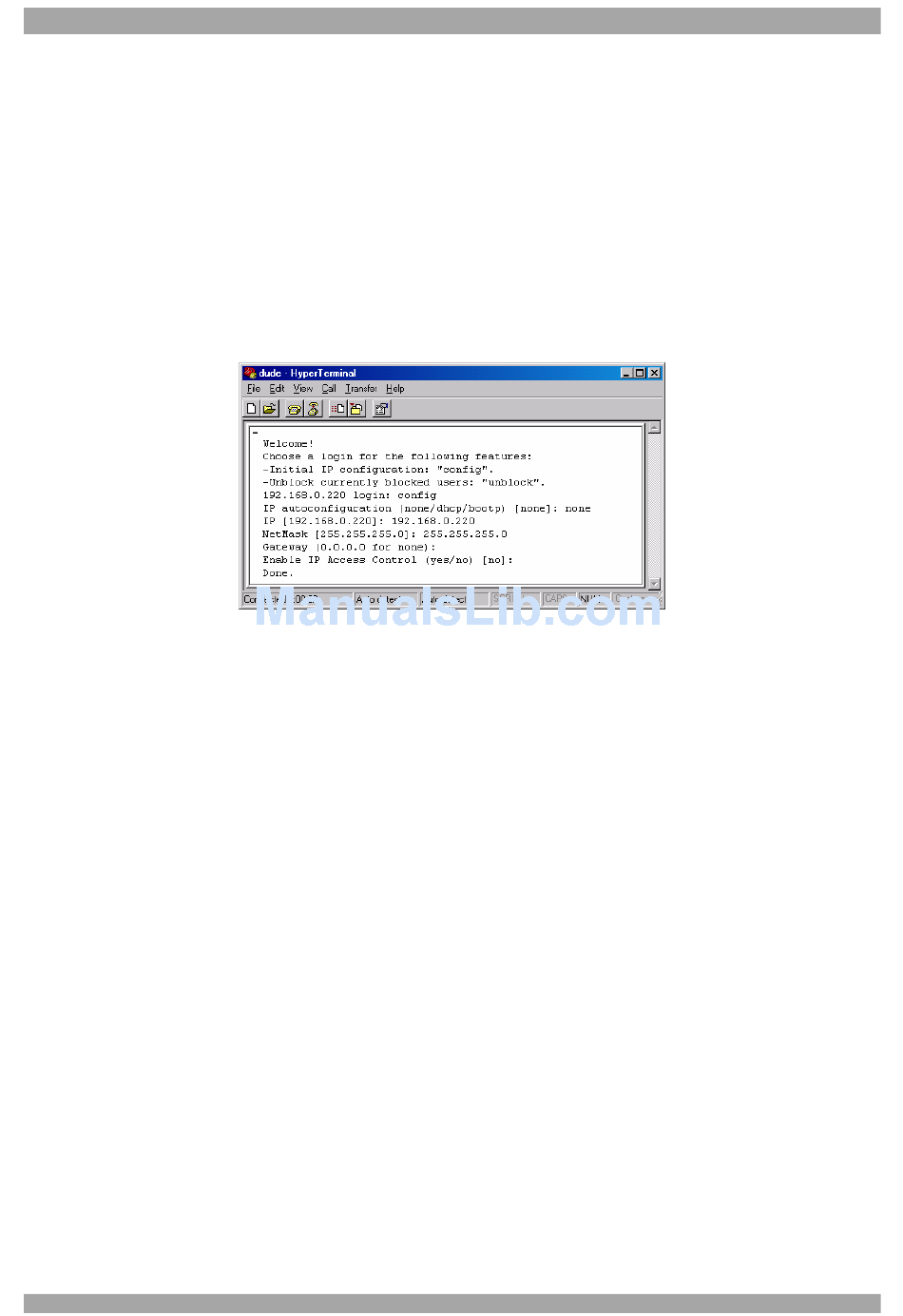

Figure 3 Hyperterminal
