OPERATING GUIDE
Custom Video Modes
Smart 16 IP recognizes a limited number of common video modes. When running
X-Window on the host system, don't use any custom modelines with special video
modes. If you do, Smart 16 IP may not be able to detect these. Use any standard
VESA video mode. Refer to Appendix A on page 83 for a list of all known
modes.
You can adjust up to 4 Custom Video Modes if your video mode differs from the
standard VESA video mode.
Add video modes to Smart 16 IP, which are not recognized using the factory
settings, when for example using special modelines in an X-Window
configuration on the host or with uncommon hosts or operating systems.
Click Add Custom Video Modes. The Custom Video Modes window appears see
Figure 18.
Note! This option may affect the correct video transmission and is for advanced
users only.

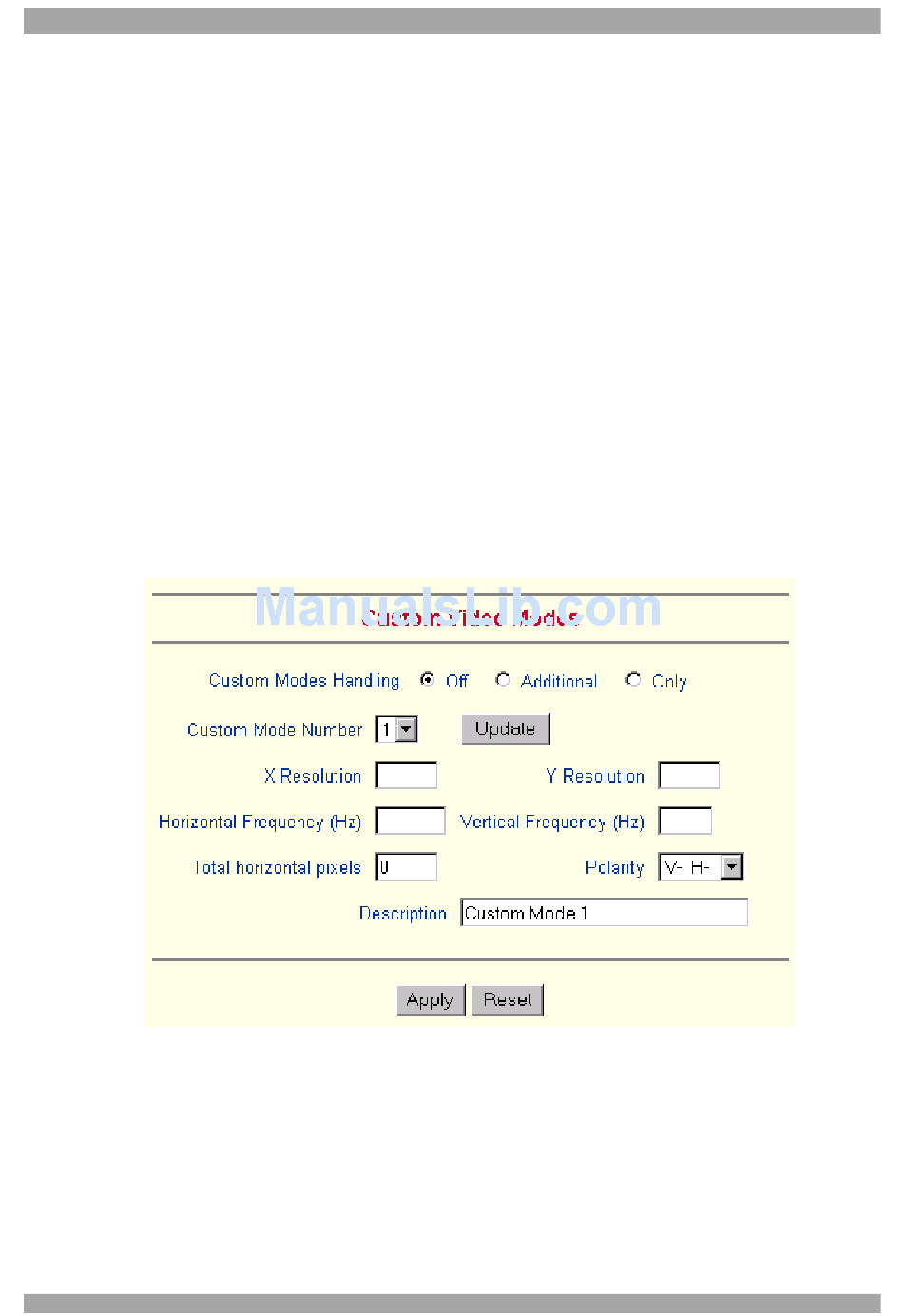

Figure 18 Custom Video Modes window
Custom Modes Handling – switch custom modes off, or use in addition to the
standard video resolutions, or use exclusively - Only. With Only you can force a
special video mode for Smart 16 IP.
To change the parameters for a mode, choose the number and press Update.
X Resolution - Visible number of horizontal pixels.
