Smart 16 IP registers itself to the Dynamic DNS server slightly different from the
time configured. To reduce load peaks on the server we add a random time (0-10
min) to the absolute time value.
24.

Serial Port Settings

From the Smart 16 IP Menu choose Serial Port Settings. The Serial Port Settings
appear. See Figure 24.

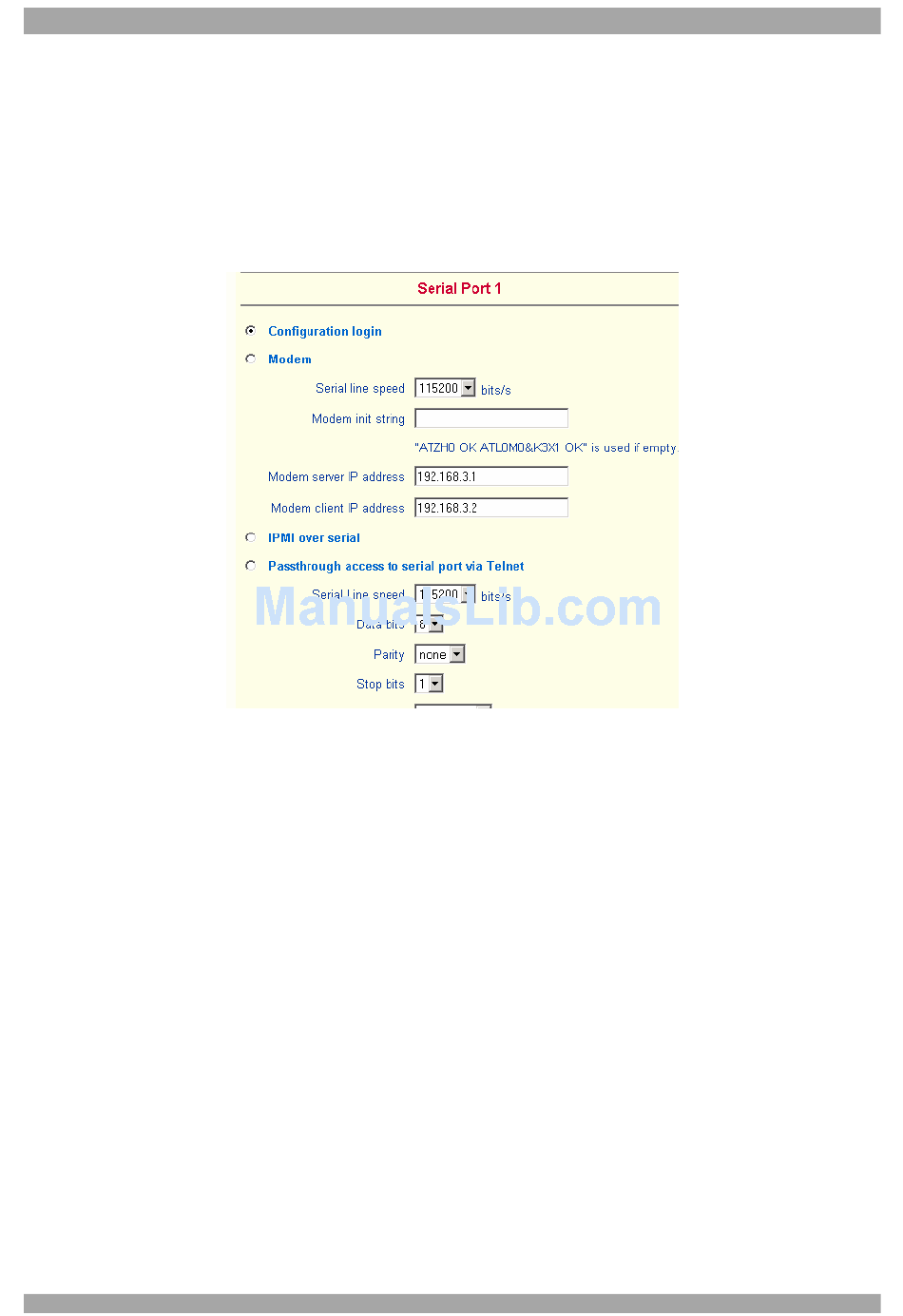

Figure 24 Serial Port Settings
In the Smart 16 IP Serial Settings specify the devices connected to the two Serial
ports.
Serial Port 1
The port options are listed below
Configuration login –If this option is checked you can only use the port for the
initial configuration and no other function.
Modem - Smart 16 IP has the option of remote access using a telephone line.
Connect the modem to Serial 1 port. Using a telephone line means building up a
dedicated point-to-point connection from your console computer to the Smart 16
IP. The Smart 16 IP acts as an Internet Service Provider (ISP) to which you can
dial in. The connection is established using the Point-to-Point Protocol (PPP).
Before connecting to Smart 16 IP, configure your console computer accordingly.
For instance on Windows based operating systems you can configure a dial-up
network connection, which defaults to the right settings like PPP.
