OPERATING GUIDE
16. Keyboard & Mouse Settings
Smart 16 IP supports different keyboard and mouse types.
Click Keyboard & Mouse Settings. The settings appear as in Figure 12.

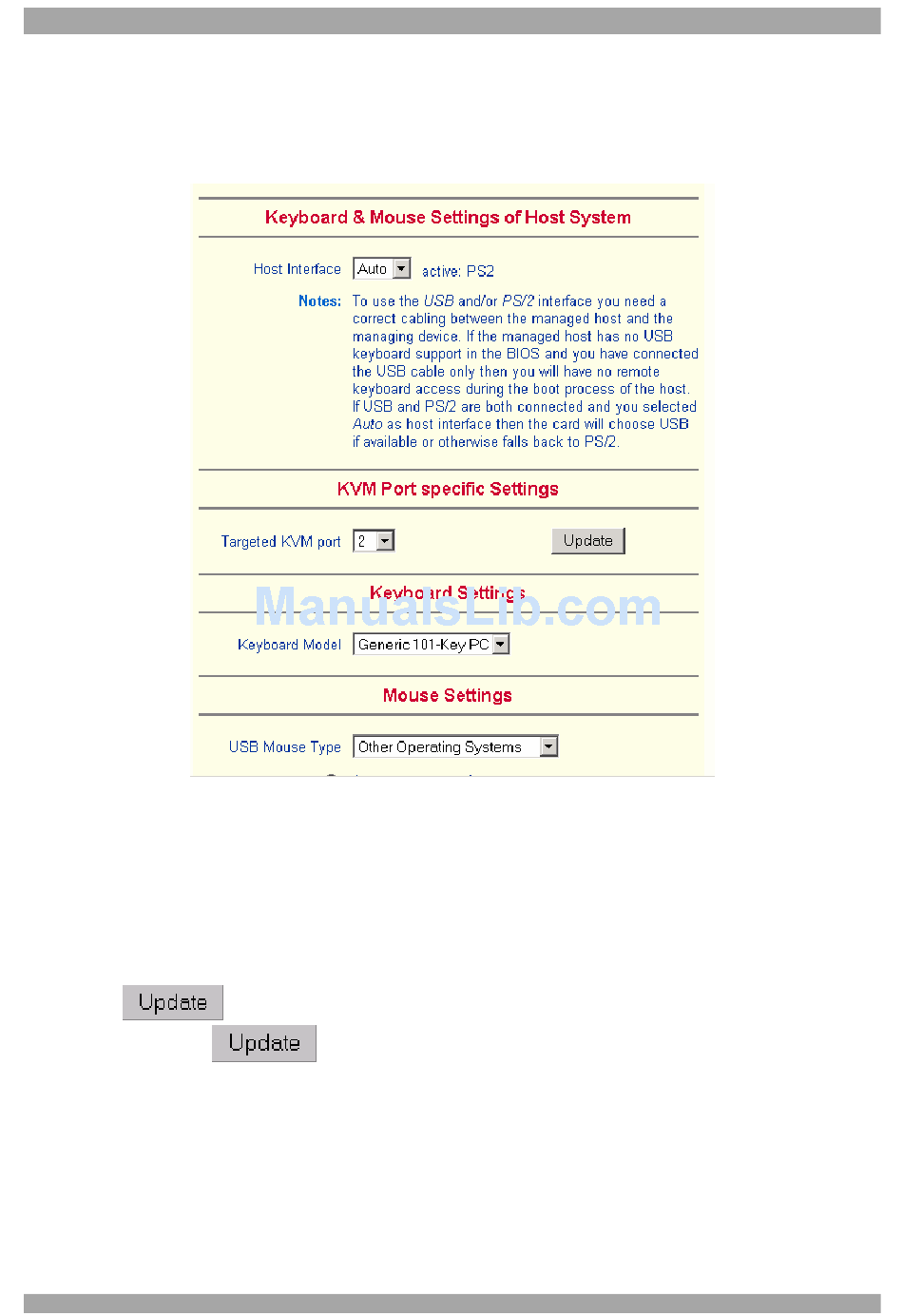

Figure 12 Keyboard & Mouse Settings
The elements of the Keyboard & Mouse Settings are explained below.
Host Interface – Only Auto or PS/2 are active. USB is for future applications.
Targeted KVM port
1. Choose a port to which a Host computer is connected.
2. Press to display the current values for the selected KVM port.
Without pressing alterations will NOT be made to the chosen port.
Keyboard Model - Choose the keyboard model for the chosen port. Select
Generic 106-key PC when connecting to computers with a Japanese OS.
18
