SMART CAT5 SWITCH 16 IP

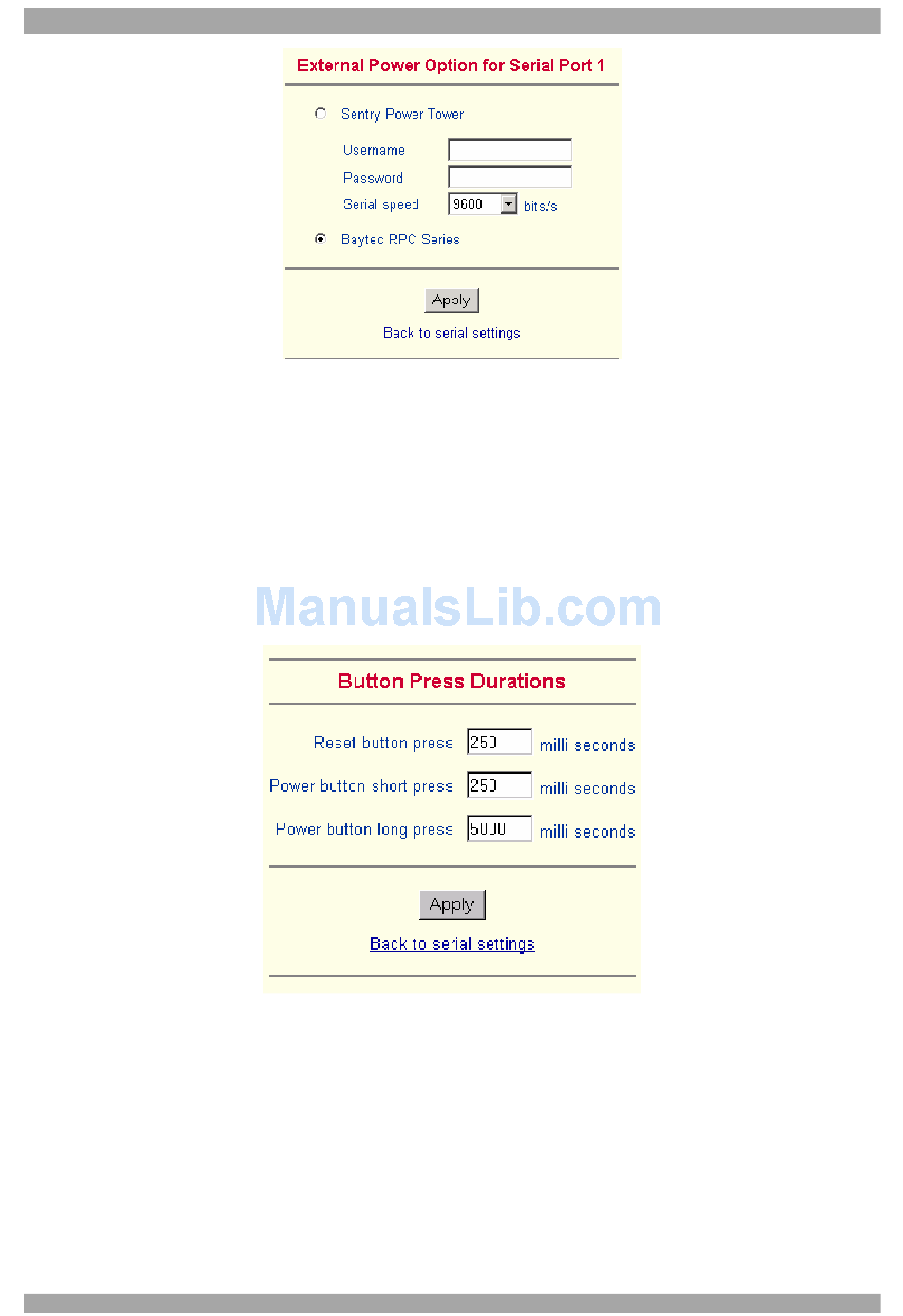

Figure 25 External Power Option for Serial port 1

Serial Port 2

This port provides the power control options, see page 16. Choose a suitable
setting and fill in additional required options. Smart 16 IP supports the following:
Internal Power Option - This option gives access to the ATX power and reset
functions of a single connected system. You can change the duration of each
button press. To do so, click Change button press durations. The box below
appears. Adjust the time as desired.
Figure 26 Button Press Durations box
External Power Option
To configure the External Power Option connected to Serial port 2, click change
external power switch option. The following appears.
35
