OPERATING GUIDE

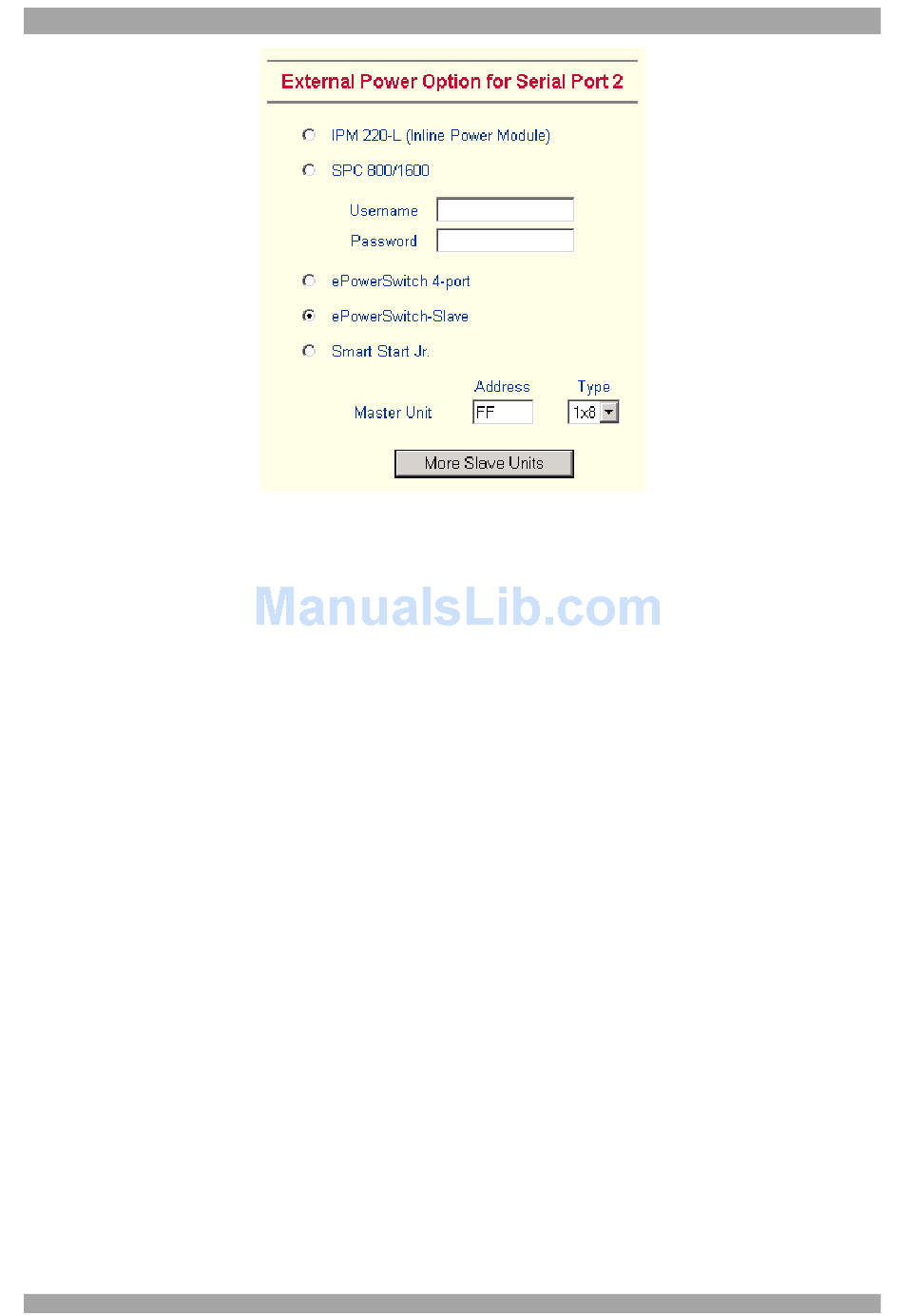

Figure 27 Serial Port 2 external power option
IPM 220-L (Inline Power Module) - External module option to switch power of
a single system by putting it in the power supply line of the controlled system.
SPC 800/1600 - Using the Avocent SPC, power on and off servers or devices
TM
connected to it. To use this device enter a username and password, which exist on
the SPC and have the privileges to switch power for each port.
ePowerSwitch 4 port – This also refers to the Minicom DX Power Switch 4
Port. Using this power switch, power on and off up to 4 servers or devices
connected to it.
ePowerSwitch-Slave – This also refers to the Minicom DX Power Switch S 8
port. Both switches are cascadable to up to 4 power switches with 8 ports. Smart
16 IP must be connected to the first switch of the cascade via a serial connection.
Smart Start Jr. – Check the box if this option is connected. Add Slave units if
required.
25.

Security Settings

From the Smart 16 IP Menu choose Security Settings. The Security Settings
appears. See Figure 28.
36
