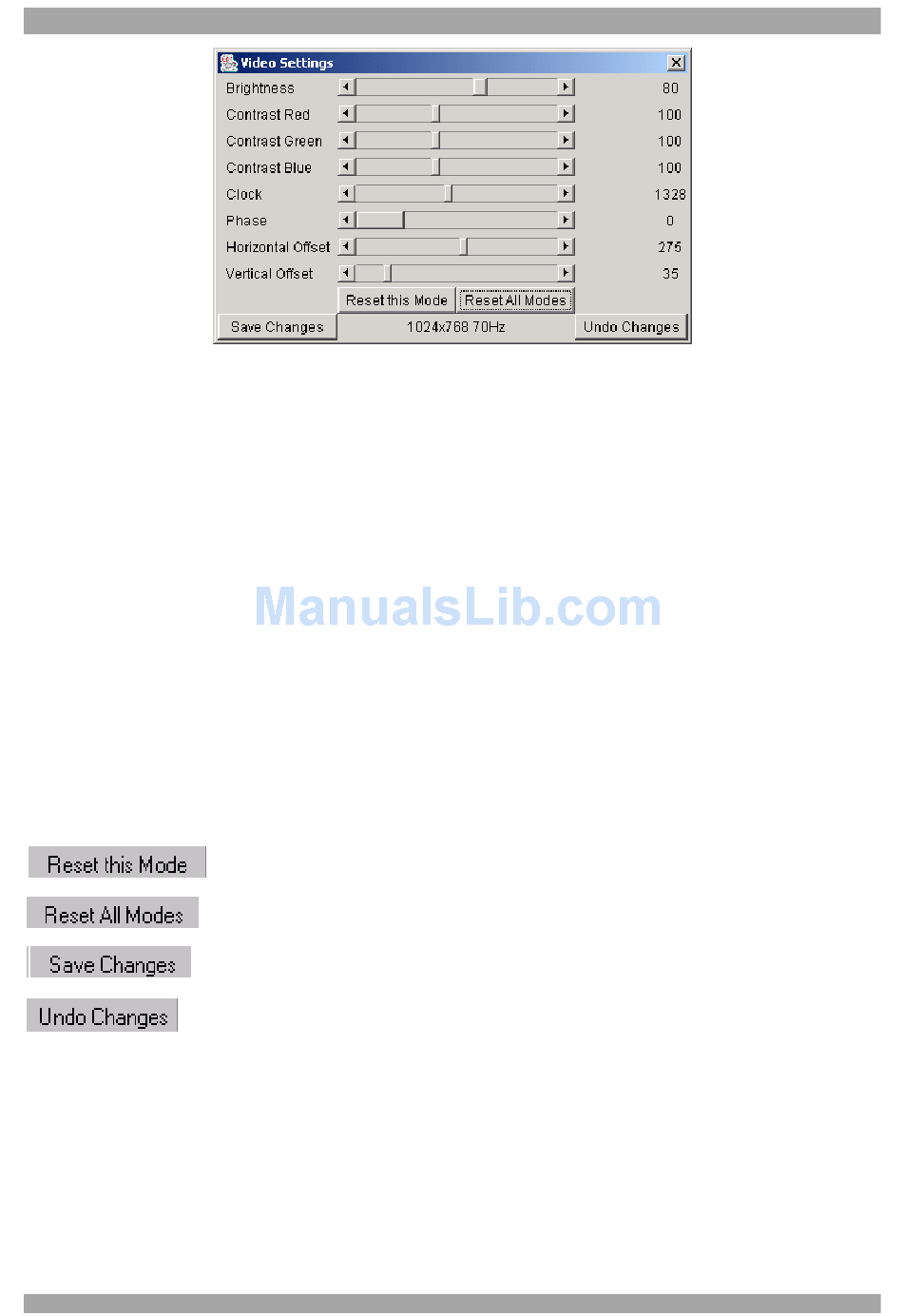

Figure 40 Video settings
The parameters have the following functions:
Brightness - Brightness control.
Contrast Red/Green/Blue- RGB contrast control.
Clock - Sets the horizontal frequency for a video line, this depends on the video
mode. Different video cards may require different values. The default settings and
auto adjustment procedure should be adequate for all common configurations. If
not change this setting together with the sampling phase.
Phase - Sets the phase for video sampling.
Horizontal Offset - Moves the picture in a horizontal direction.
Vertical Offset - Moves the picture in a vertical direction.
Brightness and contrast affect all modes and KVM ports globally; the other
settings are changed specifically for each mode on each KVM port.
- Resets mode to factory defaults.
- Resets all modes to factory defaults.
- Saves changes.
- Undoes changes that have not yet been saved.

Video Settings access

In the User/Group Permissions section on page 28, it explains how to set access
levels for all parameters including Video Settings access. A Remote Console user
can always change Brightness, Contrast and picture positions, whatever his Video
Settings access rights. A user who has permission to change the Video Settings
can also change the Clock and Phase parameters and use the reset buttons.
