The General Settings - Minicom Smart CAT5 Switch 16 IP Operating Manual

Note! When the OSD is password protected (explained below) only the
Administrator has access to the F2 settings window.
46.

The General settings

With the blue line on the word GENERAL, press Enter. The General settings
window appears see Figure 43.
From this window you can do the following:
Security
The OSD comes with an advanced password security system that contains 3
different security levels. Each security level has different access rights to the
system.
These levels are as follows:
Administrator (Status A)
The Administrator can:
·
Set and modify all Passwords and security profiles
·
Fully access any computer
·
Use all OSD functions
Supervisor (Status S)
The Supervisor can:
·
Fully access any computer
·
Access the following OSD functions only –F4 Scan, F5 Tune and F6
Moving the Confirmation label.
SMART CAT5 SWITCH 16 IP

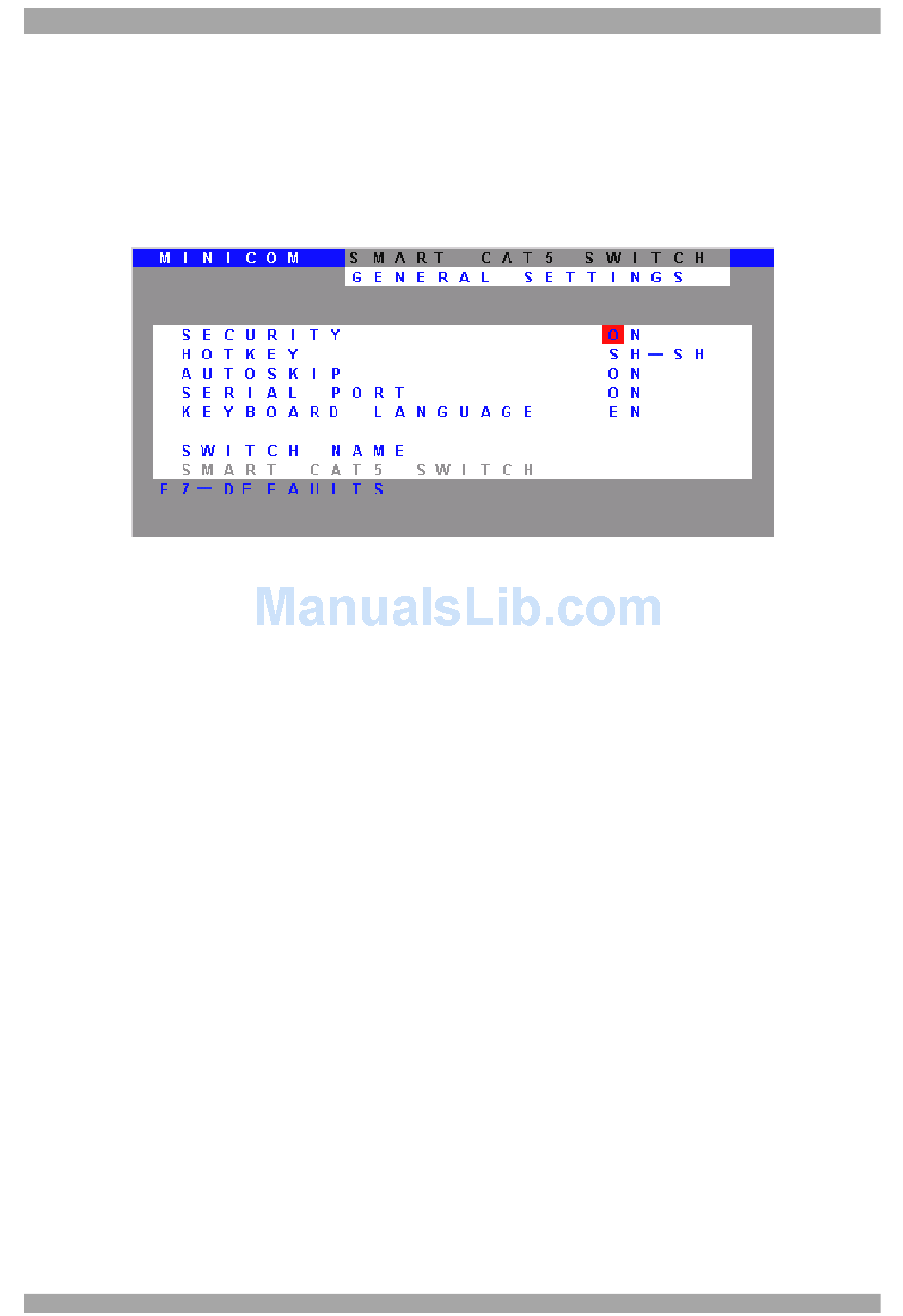

Figure 43 General Settings window
61
.
