4. Configuration via local console

There are 3 ways of configuring via local console:
·
Serial connection
·
Ethernet Crossover connection
·
IP Device Setup utility
Via Serial connection
Connect the NULL modem cable to the computer and to Smart 16 IP's Serial 1
port. Use any Terminal software to connect to Smart 16 IP. The screen shots
below use Windows Hyperterminal.
1. Choose Start/Programs/Accessories/Communications/Hyperterminal.
2. When prompted enter a name and click OK. The Connect To box appears. See
Figure 1.
3. Fill in the connection details. Select COM 1 in the Connect using box and
click OK. The COM 1 properties box appears. See Figure 2.
SMART CAT5 SWITCH 16 IP

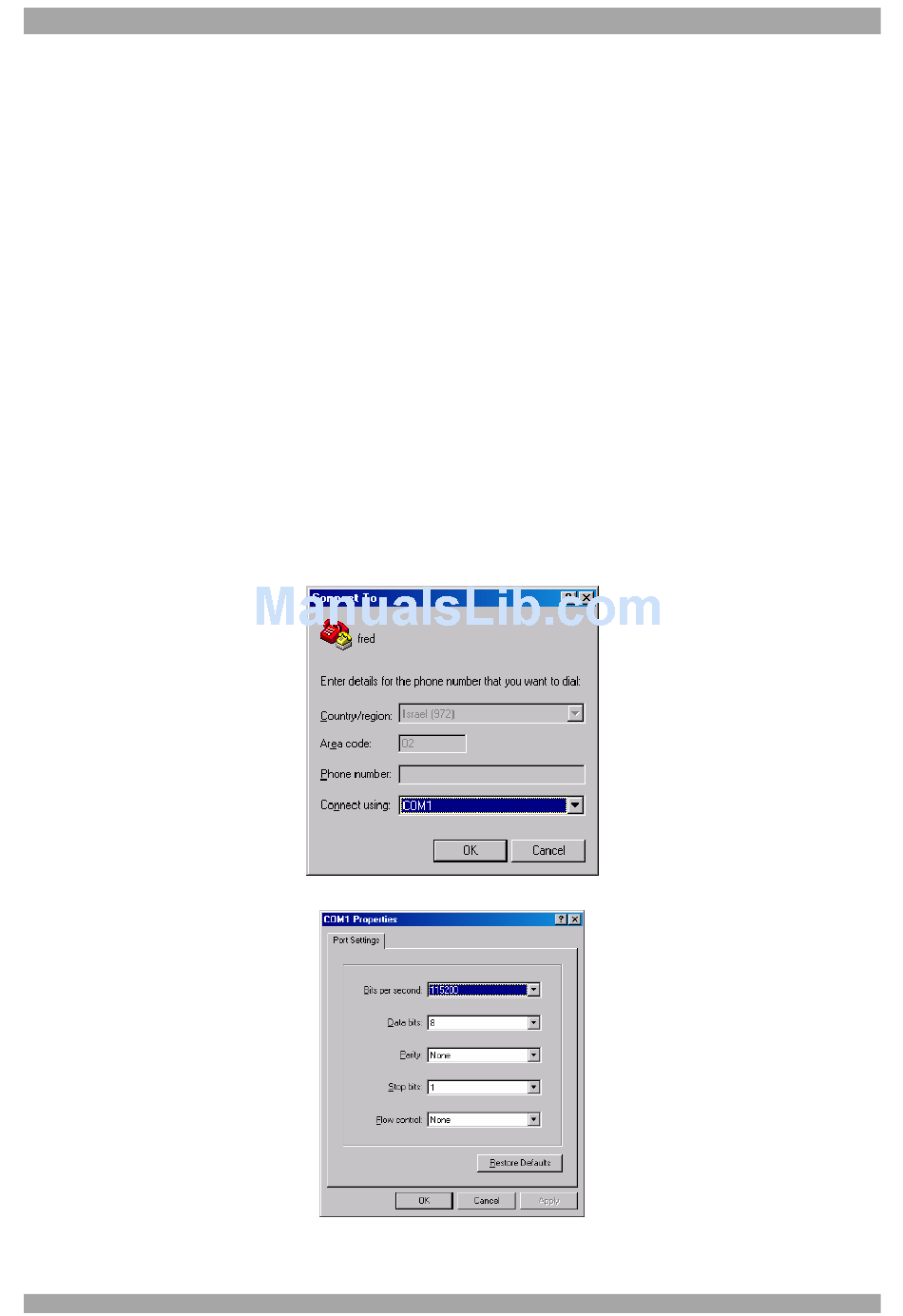

Figure 1 Connect To box
Figure 2 COM 1 Properties box
