Zone Inputs

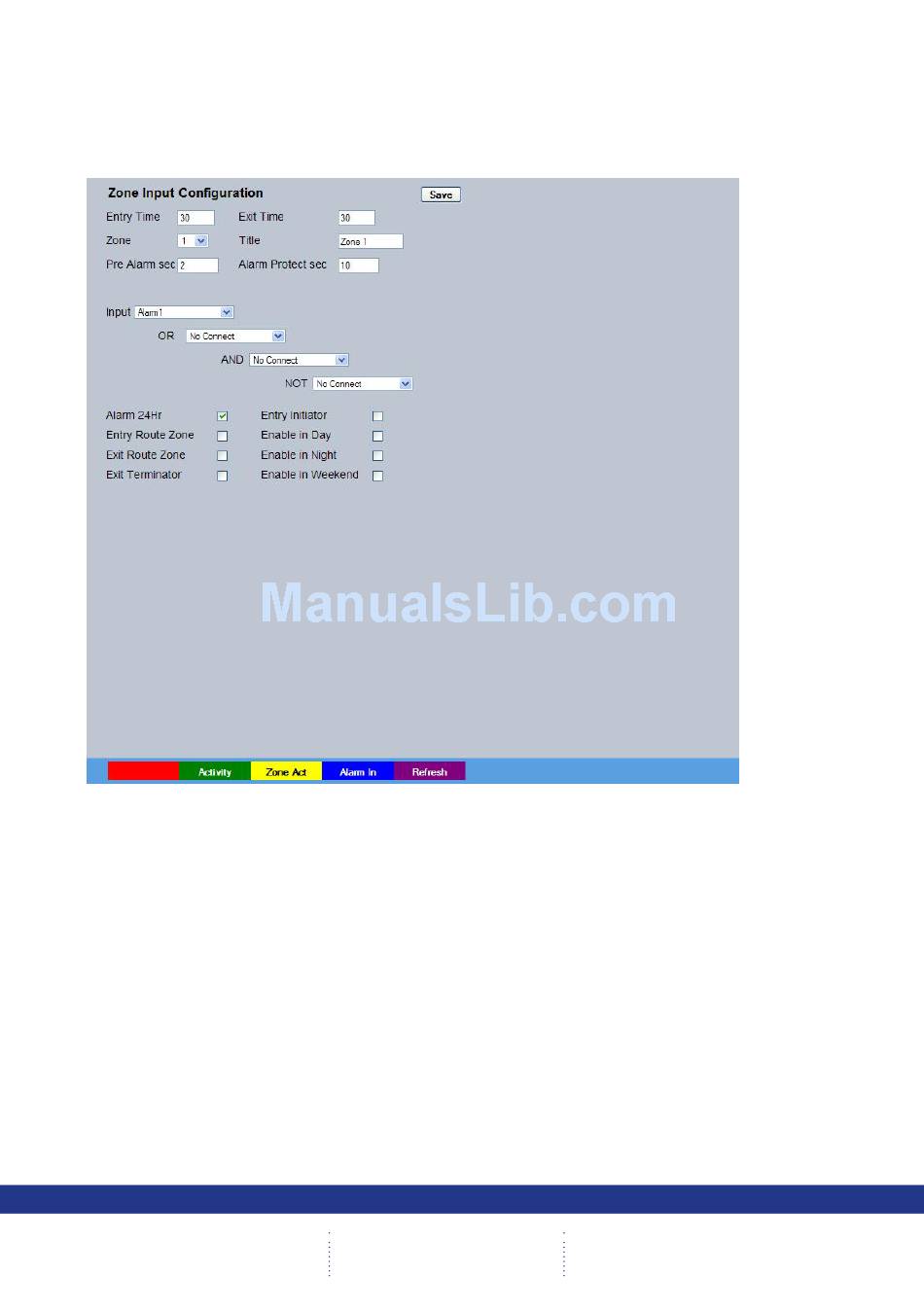

This menu allows the configuration of established alarm zones. A single or multiple trigger can be used
to generate an alarm. It is possible to allocate up to 32 alarm zones to carry out a combination of actions.
Use these options in conjunction with the Zone Actions menu.
Entry timer
Exit timer
Zone
Title
Pre-Alarm sec
Note: It is recommended that the Pre-Alarm option be set to the same value as the Pre-Trigger setting
in the "Profile Record" menu. This will ensure successful playback of high quality Pre-Trigger
images. High quality pre-trigger images will only playback properly if review (playback) starts
prior to the pre-trigger initiation.
92
This is the number of seconds allowed for the user to enter the zone
and disable the alarms. If the alarm is not disabled within this period the
alarm will be triggered.
This is the number of seconds from the alarm being set within which the
user must exit the set zone. If the user is still within the zone after this
time period the alarm will be triggered.
An alarm zone can be established to logically groups alarms and initiate
actions when an alarm is activated, there are 32 configurable zones.
This information is stored along with the relevant images in the
database, ensure this has relevance to the alarm zone.
This is the time period prior to the start of the alarm included with the
alarm recording for archive. These images will also be protected from
being overwritten.
