Status

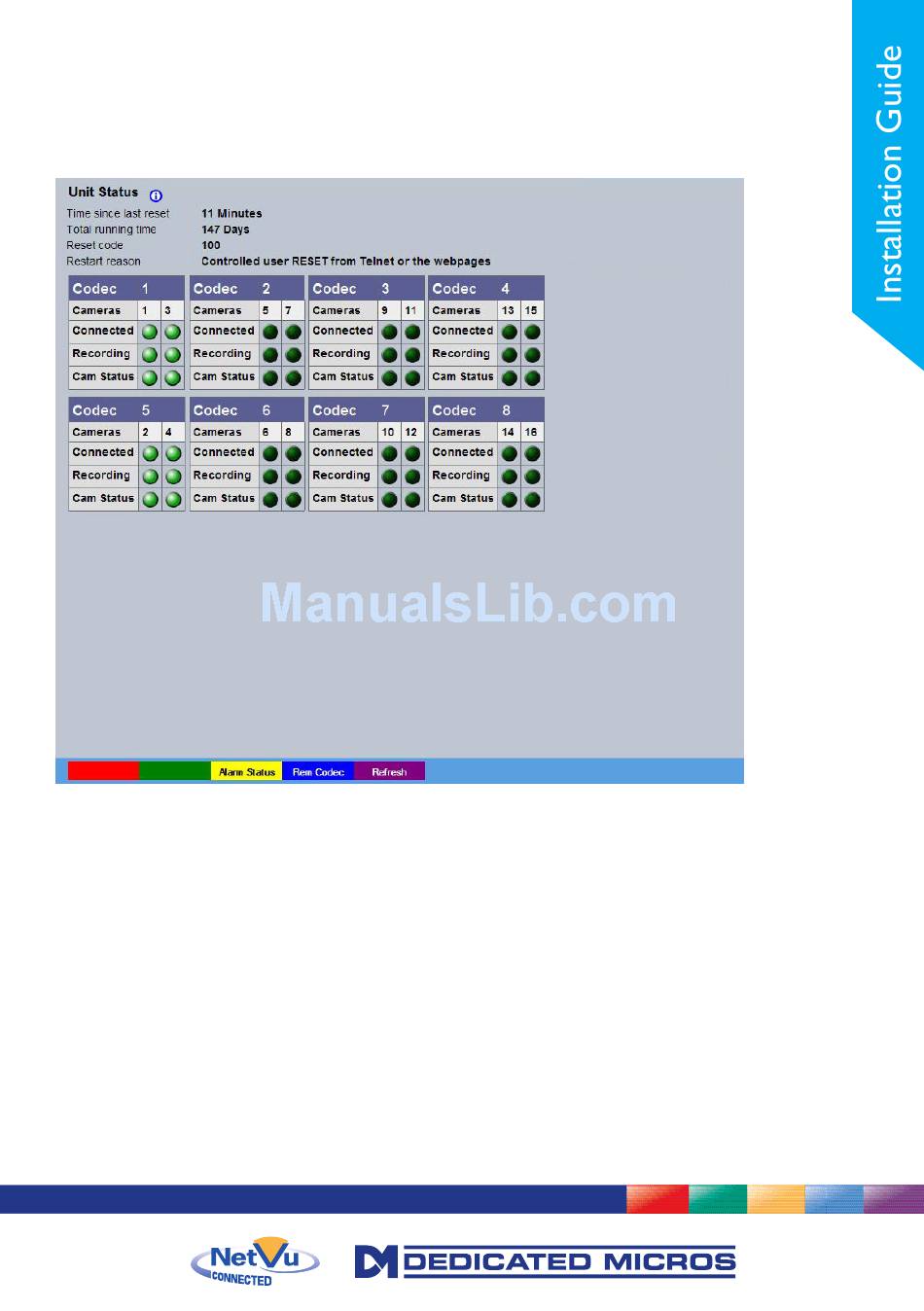

This menu details information regarding the status of the unit, notably the total time the unit has been
operating and the time since its last reset. Status log information can also be exported via the 'Export
Logs' option to either a CD-R/DVD-R or a USB device.
Time since last reset
Total running time
Reset code
Restart reason
Codec
Cameras
Connected
Recording
Details the time since the unit was last reset.
Details the total time the unit has been operational.
The last reset code used is displayed.
The reason for the last restart is displayed.
Up to four codecs are installed within the unit (dependent on model).
Cameras are assigned to the codec in the following sequence: Camera
1 is assigned to Codec 1, Camera 2 to Codec 2, Camera 3 to Codec
3, Camera 4 to Codec 4, Camera 5 to Codec 1, Camera 6 to Codec 2,
etc.
Within each Codec window, each camera channel is listed, along with
connection, recording and camera status information.
Cameras assigned to each codec are displayed..
Those camera channels with cameras connected will be highlighted
light green. Those not in use will appear dark green.
Those camera channels that are currently recording are highlighted
light green. Those not recording will appear
dark green.
31
