Dedicated Micros SD Excel Installation Manual

Hide thumbs Also See for SD Excel:

Installation manual (232 pages)

Table Of Contents

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

page of 212

/ 212
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual See also: Installation Manual

Table of Contents

Need help?

Do you have a question about the SD Excel and is the answer not in the manual?

Questions and answers

Summary of Contents for Dedicated Micros SD Excel

Page 2: Table Of Contents
Appendix H - Status Pages ............199 Whilst every attempt is made to ensure these manuals are accurate and current, Dedicated Micros reserve the right to alter or modify the specification of the machine described herein without prejudice. SD Excel...
Page 3 What is the… SD Excel ? The flagship product in the SD Series, the SD Excel offers real-time, 4CIF/D1 recording per camera in a premium enterprise hybrid DVR/NVR package that combines all the benefits of a DVR with the feature set of a high performance embedded NVR and offers multiple channels of IP and Analogue video, HDMI main monitor support, on-board analytics, help videos and Oracle Dome configuration.
Page 4: Features
NetVu Connected compatible products from Dedicated Micros including the DV-IP Decoder, NetVu ObserVer and PDA Viewers. Providing interoperability between the worlds leading security companies, NetVu Connected uses industry standard networking protocols supported by a wide range of third party integration products and SDKs to ensure future on-going compatibility.
Page 5: Design Of The Manual
The Unit includes a unique colour-coded menu structure and on screen Graphical User Interface (GUI). Context sensitive, the menu structure always represents the area of the menu the user is in, allowing them to quickly select the options and settings they need without having to trawl through menu pages and options.
Page 6: Important Safeguards
This reminder is provided to call the CCTV system installer’s attention to Art. 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. SD Excel...
Page 7 CE Mark If this product is marked with the CE symbol it indicates compliance with all applicable directives. Directive 89/336/EEC. A ‘Declaration of Conformity’ is held at Dedicated Micros Ltd., 1200 Daresbury Park, Daresbury, Cheshire, WA4 4HS, UK. Laser The unit supports an integrated CD-R/DVD-R writer, the following are additional warnings associated with installing and operating the CD-R/DVD-R writer, please pay particular attention to this information.
Page 8: Installing The Unit
Choosing a location for installation • The SD Excel is designed to be desk, shelf or rack mounted. Rack mounting brackets are available as an optional accessory. • Ensure the SD Excel unit is properly ventilated to protect from overheating.
Page 9: Electrical Connections
• PC with CD ROM drive and connection to the same network as the NVR (Recommended). Quick Overview of SD Excel Record Settings The SD Excel provides as default: Consistent recording duration and smooth motion video per camera regardless of the number of cameras.
Page 10: Installation
The position of the HDMI connector will vary dependent on model Audio Audio IN (Dual) RCA (phono) socket, 8KHz/16KHz/22KHz sampling 75Ω input impedance, 1V pk-pk Audio OUT (Dual) RCA (phono) socket, line level <100Ω output impedance,1V pk-pk amplification required SD Excel...
Page 11: Alarms And Relays
Data SERIAL 1 RS-232 (3 wire & 9 wire) SERIAL 2 RS-232 (3 wire & 9 wire) SERIAL 3 (PTZ) RS-485 (2 wire & 4 wire) SERIAL 4 (PTZ) RS-485 (2 wire & 4 wire) 2x USB2.0 connectors Infra-Red Input connector for IR Remote Control Extender RJ45 Ethernet network connector, 10/100 Mb/s Ethernet Network RJ12 connector for use with Dedicated Micros telemetry keyboards (KBC1, KBC2)
Page 12 S E R D I O D I O The SD Excel supports up to 16 connected analog Video Inputs (dependent on model) via the 75Ω BNC U S B connectors. Connect cameras to the video inputs, starting from input 1.
Page 13 D I O U S B The SD Excel supports two channels of bi-directional audio, accessible through NetVu ObserVer. Connect the audio equipment to the phono sockets AUDIO IN and AUDIO OUT. The audio channel defaults to recording camera 1.
Page 14: Step 5 - Relays
Pin 15 Pin 14 The SD Excel supports 20 normally open/closed tamper proof alarm inputs, or one Global keyswitch input with camera specific inputs configurable as entry/exit alarms. The alarms support tamper proof detection using 1k in line and 5K end of line resistance. The unit detects short circuit, open circuit and contact closure.
Page 15 Relay Connector Alarm Input Connection 1 - 20 1-20 21-25 Earth Common End Of Line Circuitry The following describes the EOL tamper alarms circuitry needed when EOL has been configured. There should be two resistive values within the tamper alarm circuitry. These must be located inside the alarm device (furthest point from the unit).
Page 16: Step 7 - Connecting Serial Ports
RS232 RS485 Step 8 - Connecting a Keyboard The SD Excel supports Dedicated Micro keyboards DM/KBC1 and DM/KBC2. Connect either of these keyboards via the KBD connector on the rear panel. Note: Refer to the Unit Operation section of this manual for further guidance regarding the supported keyboards.
Page 17: Step 9 - Connecting Dm Oracle, 2060 & 2040 Domes
V I D V I D The SD Excel has an internal power supply unit. Connect the mains lead to the unit and then to the wall V I D socket, or to a fused spur connection. To be compliant with wiring regulations in some countries, an Alarm/...
Page 18: Configuring The Unit
To activate an assigned DNS address, it will be necessary to reboot the unit. The unit can be rebooted via System -> Maintain-> Reset. IMPORTANT: To set the time and date on the unit, navigate to System Settings->Time and Date. 6.11 SD Excel...
Page 19: Accessing The Configuration Webpages
Accessing the Configuration Webpages The unit can be configured using the webpages. To access these: Launch Internet Explorer (or similar web browser package). Type the URL for the unit (IP or DNS address). The Opening menu page will be displayed. 6.13...
Page 20: Remote Control
This button should be pressed (followed by a numeric entry) to carry out auxiliary actions on a PTZ camera. Press the Menu button to enter the Configuration menus. Press the Exit button to exit the Configuration menus. SD Excel...
Page 21 Use the Directional and OK buttons to navigate through the menu screens and accept changes. Also use for PTZ telemetry control of cameras. Use the Softkeys (Red, Green, Yellow, Purple) to directly access the corresponding function displayed on the menu screen. The Number pad should be used to select specific cameras and preset positions when available.
Page 22: Main Menu
Select to open an electronic version of the Installation & Operation Guide. • ObserVer Manual Select to open an electronic version of the NetVu ObserVer User Guide. NetVu ObserVer is a free video management software package from Dedicated Micros that allows users to seamlessly view distributed images from any ‘NetVu Connected’...
Page 23 IMPORTANT: By default, Usernames and Passwords are NOT required to access any of the menus. Usernames and Passwords can be added to regulate access to the Configuration and Viewer menus, refer to the ‘Console Settings-> User Accounts’ menu for information on establishing Usernames and Passwords.
Page 24: Navigating The Configuration Menus
PC mouse (if viewing the webpages). Note: Any changes made via the webpages are automatically saved when the page is closed. To ‘manually’ save changes, select the Save option. SD Excel...
Page 25: Using The Ir Remote Control
Using the IR Remote Control Press the MENU button to access configuration menus via a connected local monitor. The menu will have a red indicator highlighting the first option. Select a main menu heading to open a drop down list of further sub-options.
Page 26: Entering Alpha-Numeric Data Via A Local Monitor
The unit can also be controlled using an optional Dedicated Micros keyboard. This is connected via the KBD connector on the rear of the unit and provides the same control functions as the I.R Remote Control. Note: Refer to ‘Using the optional Keyboards (DM/KBC1 & DM/KBC2)’ for further guidance. SD Excel...
Page 27: System Settings
System Settings The menus under the System Settings heading allow the unit’s core settings to be viewed, changed and the system software upgraded. The Attributes option displays details about the unit including the IP address, unit serial number, MAC address and software version. The Status page displays information about the unit’s operating condition, shows how long the unit has been operating and the reason for the last reset.
Page 28 System Name This field can be edited to allocate a name to the unit. This is displayed when the unit is accessed via NetVu ObserVer and is sent when transmitting information to a Remote Video Response Centres (RVRC). Video Standard Displays the video standard adopted by the unit i.e.
Page 29: Software Menu
Software (Red) Select this option to display installed software information (see below). Time/Date (Green) Select to open the System->Time and Date page. Accounts (Yellow) Select to open the Display->User Accounts page. Network (Blue) Select to open the Network->Network page. Refresh (Purple) Refreshes the information on the current page.
Page 30 System (Red) Select this option to return to the System menu. About (Blue) Select to open the Status->About page. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 31 Status This menu details information regarding the status of the unit, notably the total time the unit has been operating and the time since its last reset. Status log information can also be exported via the ‘Export Logs’ option to either a CD-R/DVD-R or a USB device. Time since last reset Details the time since the unit was last reset.
Page 32 Camera channels with no connected camera will appear dark green. Alarm Status (Yellow) Select to open to the Status->Alarm page. Rem Codec (Blue) Select to open to the Remote Codec Status page Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 33: Alarm Status
Alarm Status This menu details information regarding the status of the unit’s alarm contacts, alarm zones and relay outputs. Alarm Contacts/Zones/Relay Outputs Alarm Contacts, Alarm Zones and Relay Outputs that are in an ‘active’ state are shown light green. ‘In-active’ ones appear dark green (not illuminated).
Page 34 This menu allows access to numerous system information pages. Select the an icon to view the relevant pages, refer to ‘Appendix H - Status Pages’ for a description of each page. System Information Select to open to the System->Attributes page. Software Revisions Select to open to the System Settings->System->Software page. SD Excel...
Page 35 Logs The log files stored in the unit can be accessed from this page. Selected logs are displayed on the page below. About (Blue) Select to open the System->Status->About page. Refresh (Purple) Refreshes the information on the current page.
Page 36 Select to change the language settings for the current session only. Choose Select to immediately activate session language changes. Reset (Red) Select to cycle the power to the unit. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 37: Time And Date
Time and Date This menu allows the time and date to be set on the unit. Required timezone information can also be established and the unit time synchronised to that of the PC being used to view the webpages. System Time The current system time and date is displayed.
Page 38 Select to open the System->Attributes page. Sync Time (Blue) Use this button to synchronise the time of the unit to that of the PC being used to view the webpages. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 39: Serial Ports
Serial Ports This menu allows configuration of the unit’s Serial ports, refer to ‘Installing the Unit’ for installation information. Serial Port These are the four serial ports available. Port Config The serial ports can be configured to specific uses. Select from: None Switches port off Debug...
Page 40: Camera Configuration
‘Mono’. Selecting ‘Mono’ will remove colour patterning. If a particular channel is not in use or the camera has failed, select ‘Not Connected’. ‘Remote Codec’ is used for NetVu Connected video sources. ‘IP Camera’ is used for all NetVu Connected cameras and 3rd party units. Term The unit will automatically terminate the camera input with 75Ω.
Page 41 Fail Rep Select this option to activate a Failure report in the event of camera connection failure (video loss). Buzzer Select this option to activate the onboard buzzer to report in the event of camera connection failure (video loss). Cam Setup (Red) Select to open the Camera->Setup page Serial (Blue) Select to open the System->Serial page...
Page 42 2. Challenge audio i.e. originating from an Operator using NetVu ObserVer at a Remote Video Receiving Centre (RVRC) can be recorded via input 1. This combined audio is then available on Audio Output 1, refer to ‘Installing the SD Excel for audio hardware installation information. Audio 1/2 Use the drop down box to assign an audio function to each input, ‘Local’...
Page 43 Note: Recording in uncompressed format will significantly increase the disk space used. Reset (Red) Select to cycle the power to the unit. Refresh (Purple) Refreshes the information on the current page.
Page 44 Select this option to enable the Keyboard 485 Bus. Remote Reporting Select this option to activate the Remote Reporting function, refer to ‘Network Settings-Remote Reporting’ for more information. Note: When de-selected here, the ‘Remote Reporting’ menu will no longer be displayed in the menu tree. SD Excel...
Page 45 Automatic FTP Download Select this option to enable automatic FTP downloads to upgrade the unit and/or the webpages, refer to ‘Network Settings-FTP Download’ for more information. Note: When de-selected here, the ‘Automatic FTP Download’ menu will no longer be displayed in the menu tree.
Page 46 This setting limits the number of cache entries available in the ARP table. The default setting of 256 is adequate for most instances TCP Reassembly Queue Limit This setting limits the maximum number of TCP segments allowed in the reassembly queue, to protect against a common DoS attack. SD Excel...
Page 47 Remote codec lock status Each camera can work as a remote codec for one NetVu Connected server. This is the most efficient means of connection to a DM server as the camera generates the viewing and recording streams directly in the format required, so the server does not need to reprocess them.
Page 48 Select to open the System->Features->System page Network (Green) Select to open the System->Features->Network page Video (Yellow) Select to open the System->Features->Video page Other (Blue) Select to open the System->Features->Other page Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 49 Other Auto Update Web Variables Configures the unit to update all system variables required for an automatic upgrade without requiring confirmation. Do not check this box if you run a customised applet. Enable event search page Select to enable the Event Search option. When enabled, the option will appear within the Configuration Menu tree.
Page 50 Select to export all Logged data to a connected external device. Select the relevant media device to save to export to. Server Reset (Red) Select to cycle the power to the unit. IMPORTANT: To upgrade the unit, insert a media device containing relevant software upgrades and select ‘Reset‘. SD Excel...
Page 51 Note: For the latest software upgrades, please refer to the Dedicated Micros website: www.dedicatedmicros.com Note: Selecting the Default button will cause the system to reboot. Save (Purple) Select to save current unit settings to the selected media. Restore (Blue) Select to restore previously saved settings from the selected media. Note: Selecting the Restore button will cause the system to reboot.
Page 52: Powerscript Mgmt
+44 (0) 845 600 9502 for further guidance. Reset (Red) Select to cycle the power to the unit. Save (Green) Updates the DEFAULT.C file on the NVR to enable selected scripts on reboot. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 53: Display Settings
Display Settings The menus under the Display Settings heading allow the unit’s Viewer display settings to be altered and User Account details to be viewed and changed. The Remote Monitors page allows monitors not physically connected to the unit to view camera images received by the unit.
Page 54: Remote Monitors
The IP address of the server connected to the monitor (or video wall) is required. Cameras can then be selected via the remote monitor Up to 16 remote monitors (or video walls) can be configured. Enter the IP address of the server connected to the monitor. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 55: Viewer Defaults
Viewer Defaults This menu allows configuration of settings for the Viewer function. Refer to ‘Operating The Viewer’ for more information regarding this feature. Default settings can be configured for accessing the Viewer function via a local monitor and also remotely via a network connection.
Page 56 ‘website’ option i.e. the remote applet. Reset (Red) Select to reset the unit and implement any changes made to the ‘Video Output mode’ or ‘Applet Location’ fields. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 57 Display This menu allows configuration of monitor settings used when viewing camera images and text data. Main monitor text It is possible to select text to be displayed on the main monitor. The text displayed will include; time, date, mode of operation (Set, Unset or Override), camera number and camera title.
Page 58 All of the unit’s camera input channels are shown. To include any of these camera channels in the spot monitor sequence, selected the accompanying tickbox. Select All (Blue) Select to add all available cameras to the Spot Monitor Sequence. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 59 Maps This menu allows images to be imported and used as maps that can be displayed in the Viewer Menus. The map can then have hotspots added to allow quick navigation to individual cameras. An overview ‘System Selection Map’ can also be added to navigate between different systems. Configure Map Leave as ‘Local System Map’.
Page 60 Origin position for a PTZ camera. Decrement (Red) Select to reduce size of hotspot. Increment (Green) Select to increase size of hotspot. Map Data (Yellow) Select to open the Display->Map Data page Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 61: Map Data
Map Data The Map Data menu allows Map Config data to be Imported/Exported. This enables map data to be saved and stored for future use, or used between multiple units. Note: The Map Data menu will only be available when viewing the menu pages remotely i.e. via the webpages.
Page 62: User Accounts
• Video FTP Assigning username and password requirements for the Video FTP function will limit access to the Video FTP archiving feature (used with NetVu ObserVer). • Telnet Assigning username and password requirements for Telnet connections will limit Telnet access to the unit (Telnet can be used to upgrade the unit).
Page 63 • Menu Configuration Assigning Menu Configuration access privileges will limit access to the Configuration menus when viewed locally. When implemented, the user will be prompted for a username and password before access to the Configuration menus (via the main menu) will be granted. •...
Page 64: Camera Settings
This feature is predominately intended for use with 3rd party IP camera streams (connected via the 3rd party IP camera unlock feature). The Intelligent PTZ menu details the Dedicated Micros Oracle Domes connected to the DVR. SD Excel...
Page 65: Mono/Colour Camera
Setup This menu allows the configuration of active camera channels. IMPORTANT: The menu options displayed will differ depending on the camera ‘Type’ and ‘IP Mode’ selected. Note: Ideally any setup options available locally on the camera should first be used to best obtain a suitable image quality.
Page 66 Select a colour value from -8 to +8 via the slidebar or enter a number directly into the accompanying textbox. Brightness Select a contrast value from -8 to +8 via the slidebar or enter a number directly into the accompanying textbox. SD Excel...
Page 67: Ip Camera
IP Camera If a NetVu Connected IP Source is selected IP Type Select the type of NetVu Connected source the camera stream is originating from. Select from: ‘NetVu Server’ - i.e. DVIP Server, DVIP RT, SD, SD Excel, EcoSense. ‘NetVu Gen 2’ - i.e. DS2, BX2.
Page 68: Both Types
Additional IP cameras ( further to existing local camera channels) are remote codec only. Therefore any NetVu connected cameras will be applied above local camera level. When ‘Simple Stream’ and ‘Recode Stream’ are selected via ‘IP Mode’, the following options will...
Page 69: Camera Lens Configuration
Camera Lens Configuration This page allows different lens de-warping techniques to be applied to connected cameras. The NVR can de-warp Fish-eye and Depressive Fish-eye lenses to present a normal aspect image. Title Shows the allocated name of the video source. Lens Type Allows selection of fisheye, depressive fisheye and normal lens types.
Page 70 This menu details the general settings assigned to each of the local camera channels. To edit the settings assigned to any of these cameras; Click on Local Camera Setup to edit the settings held in the SD Excel; Click on ‘Setup’ to open the Setup menu on the connected video source.
Page 71: Ip Stream Inputs
IP Stream Inputs The IP Streams menu allows the selection of High, Medium and Low resolution settings for video sources originating from a network based source i.e. IP Server. These streams are configured on the remote device. This feature is predominately intended for use with 3rd party IP camera streams (connected via the 3rd party IP camera unlock feature).
Page 72: Ip Camera Configuration
IP stream to the record profile settings established for this camera channel in the Profile Record menu (Record Settings->Profile Record). This eature is only accessable with 3rd party IP camera when the 3rd party IP camera license has been enabled. SD Excel...
Page 73 Additional IP cameras ( further to existing local camera channels) are remote codec only. Therefore any NetVu connected cameras will be applied above local camera level. When ‘Simple Stream’ and ‘Recode Stream’ are selected via ‘IP Mode’, the following options will be available: Enter the URL address of the image source.
Page 74: Intelligent Ptz
Intelligent PTZ Status This page details the Dedicated Micros Oracle Domes connected to the system. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 75: Record Settings
Record Settings The Record Settings menus allow configuration of the unit’s record functions. Record settings can be configured for normal operation, on alarm, by schedule and for set holiday and weekend periods. Selected video data can be saved and protected. Refer to the individual menus for further details. The Default page allows the basic Recording settings to be edited.
Page 76 Advanced Rate JPEG 3pps or MultiMode recording. Record Duration/Enhance Quality The recording duration can be limited to a set number of days; allowing the recording quality to be enhanced for a shorter storage period. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 77: Profile Record
Profile Record It is possible to set the unit recording configuration based on specific priorities. The Multi recording Mode feature offers the ability to set different recording rates, resolutions and compression formats across unset, set and override modes for each individual camera. By varying the quality, bit rate and file size of recorded images, the Multi function enables the recording capabilities of the unit to be Mode...
Page 78: Simple Record
Turbo mode and its benefits). Unset/Set/Override Normal Shows the recording profile used by the camera if no Timer Functions are applied and the camera is operating under Normal (non Event) conditions. Refer to the ‘Schedules’ section for further details. SD Excel...
Page 79 Unset/Set/Override Event Shows the recording quality that will be used by the camera during an Alarm or Event. Note that Set and Override schedules will be used only when Timed Schedules are applied. Refer to the ‘Schedules’ section for further details. Note: When Turbo mode is selected, there will be only ONE configurable Record Profile across ALL cameras.
Page 80: Advanced Record
Copy To Next Select to copy the current profile record settings to the next camera channel. Filter by Connected cameras are available to be sorted by the resolution, select the resolution of cameras to be displayed and configured. SD Excel...
Page 81 Turbo Mode Select to activate the Turbo mode function (see ‘What is Turbo mode?’ for a description of Turbo mode and its benefits). Unset/Set/Override Normal Shows the recording profile used by the camera if no Timed Schedules are applied and the camera is operating under Normal (non Event) conditions.
Page 82: Jpeg Pre Trigger
Pre-Trigger images. High quality pre-trigger images will only playback properly if review (playback) starts prior to the pre-trigger initiation. Pre-Trigger Duration (secs) The Pre-Trigger Duration is the maximum possible time that data will be stored prior to an event trigger. Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 83: Protect Video
Protect Video This menu allows the unit to automatically protect and retain recorded data in the camera. Previously saved data can also be unprotected. Enter a start and end time and select ‘Reload List’ . All saved video files from the chosen time period will be shown in the upper textbox. These recorded ‘PAR’ files can then be selected and protected via their accompanying checkboxes and the Protect option.
Page 84 Select to unprotect all recorded video from the list Protect (Green) Select to protect recorded video for the chosen time period Unprotect (Yellow) Select to unprotect recorded video for the chosen time period Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 85 This menu allows configuration of the units ATA over Ethernet (AoE) function. AoE is a network protocol designed for simple high-performance access of storage devices over Ethernet networks. Importantly the external storage device must be located on the same network as the unit. AoE does not rely on network layers such as IP and TCP, making it non routable i.e.
Page 86: Schedule
The Setup page allows configuration of the schedule including naming the modes of operation and controlling when the unit changes between modes. The Holiday & Weekend menu allows the unit to be automatically switched to Override mode for individual days i.e. public holidays or during a weekend (or any defined period). SD Excel...
Page 87 Setup This menu allows the Timer Function names to be configured. The Timer Function enables the unit to automatically be put into set/unset mode at specific times on specific days. This can help reduce unnecessary alarm triggers. The mode will be set by the DVR that the camera is connected to. When the unit is in Set or Unset mode, combine with different recording qualities and rates under normal and alarm conditions for a high degree of control in a range of situations.
Page 88: Holiday & Weekend
Start Select a Start day and time for Override (weekend) mode. Select an End day and time for Override (weekend) mode. Note: Override mode will remain activate each week until deselected. Refresh (Purple) Refreshes the current page SD Excel...
Page 89: Alarm Settings
Alarm Settings The Alarm Settings menus allow configuration of the unit’s alarm functionality. Individual alarm inputs and alarm zones can be configured. Global relays can be activated and the Activity grid set up. Refer to the individual menus for further details. The Inputs page allows configuration of alarm channels.
Page 90 The End Of Line (EOL) option enables the inputs to detect any changes in the electronic input resistance. A change outside the expected values will result in a Tamper Alarm (short circuit or open circuit) being detected and the system switching to alarm mode. SD Excel...
Page 91 Pulse Ext (s) A pulse extension is used to prevent double triggers on a single alarm. The pulse extension time starts on an alarm trigger. If that contact is triggered again after the first alarm has finished but within the pulse extension, the second trigger will not restart the alarm, but will extend the current alarm duration.
Page 92: Zone Inputs
It is recommended that the Pre-Alarm option be set to the same value as the Pre-Trigger setting in the “Profile Record“ menu. This will ensure successful playback of high quality Pre-Trigger images. High quality pre-trigger images will only playback properly if review (playback) starts prior to the pre-trigger initiation. SD Excel...
Page 93 Alarm Duration sec This is the minimum time period in seconds (from the start of the alarm) that is protected from being overwritten. This time will include the alarm trigger, the pulse extension and any post alarm recording. It will not include pre-alarm images.
Page 94: Zone Actions
It is possible to play associated audio upon zone alarm activation. Alarm Reporting This must be enabled to allow the unit to send an alarm notification to an external destination i.e. an RVRC reporting via NetVu ObserVer. Archive Select to ensure the unit automatically downloads alarm images via an FTP connection to an FTP server.
Page 95 Add Still Image This will record a still image of the trigger along with the standard recording. This can then be sent on to an external destination. Email Image If this option is selected, a JPEG will be added to the reporting email (if Email Reporting is selected).
Page 96: Zone Actions Camera
These cameras will become part of the alarm sequence shown in the Viewer menus when the alarm zone is triggered. Zone Act (Yellow) Select to open the Alarm->Zone Actions menu Relays (Blue) Select to open the Alarm->Global Actions menu Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 97: Masked Cam Det
Masked Cam Det The unit has the capability to identify if a video input has been covered (by hand, spray paint, etc.) to prevent video images being viewed and recorded. The Camera Masking option identifies normal levels of contrast and uses them as a base line. It then compares these against a user defined minimum contrast level.
Page 98 Different cameras have different characteristics. On Mask/Clear Select the Zone alarm that will be activated on camera masking or camera clear detection (if ‘Zone Activation’ is selected at the top of the page). Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 99: Zone Activation
Zone Activation On Mask Defines the Zone trigger that will be activated when the view is masked. On Clear Defines the Zone trigger that will be activated when the view is unmasked. Refresh (Purple) Refreshes the information on the current page...
Page 100: Vmd/Activity Response Setup
Zone Input rules as configured in the Zone Input menu. Refer to ‘Zone Input’ for more information. Note: When Activity to Trigger is set to ‘Zone’; the options detailed below are unavailable. Create Database Entry When selected, an alarm entry will be added to the Event database. SD Excel...
Page 101 Profile Change Select to enable the unit to switch from Normal to Event recording following alarm activation. Alarm Reporting This must be enabled for the unit to automatically connect on alarm. Alarm 24Hr This will ensure that Activity Detection is permanently enabled on this camera channel.
Page 102: Activity Setup
‘Clear’ to remove grids or select ‘Set’ to add grids. Activity Sensitivity This option allows the sensitivity setting to be established for the activity grid being configured. There are five settings to choose from: Indoor High, Indoor Low, Outdoor High, Outdoor Low, Very Low. SD Excel...
Page 103 Grid Editor Use the Grid Editor by placing cells in areas of the camera view where movement will trigger an alarm. To enter cells navigate across the image via the Directional buttons of the I.R Remote Control). If viewing on a local monitor place a cell by pressing the OK button. If viewing via the webpages, use the mouse to navigate across the image, use the left mouse button to place a cell.
Page 104: Vmd Configuration
A selected zone can be re-sized by clicking the mouse button (use the USB mouse if viewing on a local monitor) and then moving and clicking the mouse again. A rectangle will then be displayed based on these two selected points. SD Excel...
Page 105 Mode The zone mode identifies when the reference image is taken for triggering VMD. The options are: Normal - The reference image is updated approximately every second. This will only allow small changes in the scene without triggering. Last trigger - The reference image is only updated when the VMD is triggered and is best used under controlled lighting, i.e.
Page 106: Global Actions
Select to enable detection of the accompanying condition. Options available are; VMD/Activity, Camera Fail, System Set, Dial Out, System Override, Camera Masked and Is Recording, Contact Specifies which Relay will be triggered when the associated alarm is received SD Excel...
Page 107 Module When connected, additional modules will be available i.e. 485 Bus module. These modules can then be activated following relay activation. Status (Green) Select to open the System->Status->Unit menu Alarm In (Yellow) Select to open the Alarm->Inputs menu Zone Act (Blue) Select to open the Alarm->Actions menu Refresh (Purple) Refreshes the information on the current page...
Page 108: Network Settings
The FTP Download page allows data to be archived to a central FTP server. This could be on receipt of an alarm, Activity activation or at a scheduled time to back-up recorded video. The Firewall page allows the user to block access to the unit via specific network port(s). SD Excel...
Page 109 Network This menu allows additional network settings to be configured if required. Server Name This field can be edited to allocate a name to the unit. This would be used if accessing the unit via a Domain Name Server (DNS). IP Address This is the IP address allocated to the unit.
Page 110 Select To Reset The Unit Rem Report (Green) Select to open the Network->Remote Reporting menu Webcam (Yellow) Select to open the Network->Web Cam menu E-Mail (Blue) Select to open the Network->E-Mail menu Refresh (Purple) Refreshes the information on the current cage SD Excel...
Page 111: Live Transmissions
Live Transmissions The unit transmits live images using JPEG or MPEG formats. The NetVu Connected remote viewing software will use the settings configured on this page as the defaults for JPEG & MPEG; High, Medium and Low settings. Filter by The resolutions available for selection will depend on the camera types connected i.e.
Page 112 An MPEG I-frame is considerably larger than a P-frame. Therefore the higher the IP ratio, the higher the disk space required to store recorded images. Turbo Prefs (Red) Select to open the Turbo Mode Profile Overview menu Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 113: Multicast Setup
Multicast Setup The Multicast page allows recordings from the unit’s camera input to be forwarded to a port address; enabling multiple viewers to view live data using a suitable media player without the need to directly connect to the unit. In multi viewing scenarios, the demands on the unit are significantly reduced; improving overall performance.
Page 114 32 - restricts video to the same site 64 - restricts video to the same region 128 - restricts video to the same continent 255 - is unrestricted in scope Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 115 Email The unit can automatically transmit an email to an SMTP Server under numerous conditions i.e. on start up, on receipt of an alarm, camera failure etc. This allows the unit to be installed in unmanned applications where a Remote Video Response Centre (or Manager etc.) would be notified by email if any of these conditions occur.
Page 116 Select to send a test Email to configured recipient Zone Act (Green) Select to open the Alarm->Zone Actions menu Network (Yellow) Select to open the Network->Network menu Rem Reporting (Blue) Select to open the Network->Remote Reporting menu Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 117: Remote Reporting
Remote Reporting This menu details the configuration requirements for the unit to report to a Remote Video Receiving Centre (RVRC) following alarm activation. Note: This menu will only be displayed if ‘Remote Reporting’ is selected in the System -> Features -> System menu. Primary Hostname This is the IP address or URL of the initial host that the unit will transmit an alarm message to.
Page 118 Zone Act (Green) Select to open the Alarm->Zone Actions menu Network (Yellow) Select to open the Network->Network menu Email (Blue) Select to open the Network->E-mail menu Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 119: Web Cam
Web Cam Any of the video inputs on the unit can be made available for transmission to a webserver via a designated webcam server. These images can then be incorporated into a web page and accessed via a standard web browser. Note: This menu will only be displayed if ‘Webcam Support’...
Page 120 Select a High, Medium or Low webcam resolution settings to best match the monitor settings of the operator receiving the images. Network (Blue) Select to open the Network->Network menu Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 121: Ftp Download
FTP Download The unit can archive images to a central FTP (File Transfer Protocol) server. This could be on receipt of an alarm, activation of the Activity Detection or at a scheduled time to backup recorded video. Using FTP in a multi-unit application ensures that all files are stored in one central location for each of the units, offering efficient file management and easy review capabilities.
Page 122 This watermark is logged in the log file. Clear video protection after download This automatically clears the image protection from successfully downloaded images. Start Dload (Red) Initiates the download process Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 123 Firewall This menu allows the user to block access to the unit via specific network port(s). Enable Ping Response Enabling this option will allow an external client to receive a response when attempting to ‘ping’ the unit. Disabling this option will make the unit less visible on the network.
Page 124: Features & Text
The Keyword page can be used in conjunction with the Text in Image function. Keywords can be entered, which when detected, will trigger an alarm. Up to 30 keywords can be created. SD Excel...
Page 125: Analytics & Third Party Ip Cameras
Analytics & Third Party IP Cameras Dedicated Micros has created a range of analytics solutions designed to work with the AnalyticsCapable SD Excel. The range of applications include: Automatic Number Plate Recognition (ANPR), Object Left and Removed, Access Control, People Counting, and Perimeter Protection.
Page 126: Installing An Advanced Feature License
When Customer Services receive the License key and the Features System code, the Activation code will be provided. Enter both the License key and the Activation code into the ‘Activate New Feature’ menu and select ‘Save’. The Feature will be enabled. SD Excel...
Page 127: Activate New Feature
Activate New Feature The Activate New Feature menu allows new AnalyticsCapable licenses to be added to your unit and the Third Party IP Camera feature to be unlocked. It details the Features System Code that Dedicated Micros Customer Services require to provide the Activation Code. Also detailed are all advanced features currently activated on the unit (and the maximum number of each type of license allowed).
Page 128 ‘Text In Image’ option is selected. Then navigate to the ‘Features & Text->Text In Image’ menu. Set the Enable Keywords option to ‘Enable’. Reset (Red) Select to reset the unit. Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 129: Feature Mapping Page
Feature Mapping Page The following menu allows purchased advanced feature licenses to be assigned to specific Third Party IP camera channels This menu will only be available when an AnalyticsCapable license or the Third Party Important: IP camera feature has been unlocked. Feature All installed advanced licenses will be listed by type i.e.
Page 130: Analytics Configuration
Refreshes the information on the current page Depending on the AnalyticsCapable license assigned to the selected camera channel, one of the following set of menu pages will be displayed: • Object Left / Removed • Detection Tripwire • Tripwire SD Excel...
Page 131: Object Left / Removed
Object Left / Removed Object Left / Removed is used to define specific areas of the camera view where an alert can be generated if an object is detected as being removed or added. An AnalyticsCapable license enables this feature for all connected analogue cameras. On a single camera, up to 16 regions of the camera view can be specified to be monitored for object changes.
Page 132 When a trigger occurs, you can set the system to activate a Virtual Alarm. Virtual Alarms can be used as an Input in an Alarm Zone. Reload Img (Red) Refreshes the camera view on the page Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 133 Tripwire Tripwire is used to define a virtual line within the camera view where an alert can be generated if an object is detected crossing the line. The Tripwire can also count the number of activations and perform actions based on the count rule. This could be when a set amount of people have entered / exited an area. Additionally, a calculated balance of In and Out triggers can be used to trigger alarm when a maximum total number of people are on one side of the tripwire.
Page 134 If ‘% of Region’ has been selected via the Scale option, enter the maximum percentage change that will generate an alarm. Note: For quick setup, Dedicated Micros recommend selecting ‘% of Region’ , a min size of ‘5’ and a max size of ‘100’. SD Excel...
Page 135 Min/Max Aspect Ratio: This setting allows the system to be configured to detect specific shaped objects i.e. tall and narrow or short and wide as they cross the tripwire. The text boxes allow the minimum and maximum width to height ratio to be entered i.e. a minimum setting of 2:1 would result in objects twice as high as wide triggering an alarm.
Page 136: Count Status
Count Status This menu is accessed off the Tripwire configuration page and displayed the total detected tripwire activations Back (Yellow) Returns to the Features & Text->Features->Analytics Page SD Excel...
Page 137 ANPR The ANPR Setup menu allows an allocated ANPR Analytics license to be configured. The ANPR software can be set to function most effectively at Barrier Control (vehicles travelling at less than 20mph) or Normal Traffic flow (vehicles travelling in excess of 20mph). It is important to set the Region data correctly.
Page 138 ‘<<’ buttons. The list of countries can be reordered using the ‘+’ and ‘-’ buttons. The order determines the priority in which syntax checking is applied when performing a plate reading. Reset (Red) Select to reset the unit. Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 139: Anpr Plate Db
ANPR Plate DB The ANPR Plate DB menu allows an external database of number plate details to be uploaded to your DVR. The ANPR software will then use this information to raise alarms whenever a matching number plate is recorded. Load from USB Add the required number plate database to a USB device and connect it to your DVR.
Page 140: Vehicle Control
This is the assigned Secondary camera. This may give an overview of the area were the ANPR camera reads passing number plates i.e. a gatehouse. Note: The Dedicated Micros ANPR camera has an in-built overview camera facility. This will give a full view of the car being analysed. SD Excel...
Page 141: Example Of On-Screen Alert Message
Keyword/Unmatched Enter up to two Keywords. When a number plate is detected and recognised, the ANPR database will be searched for a match. If a match is found, it will look at the associated keyword. If the keyword matches that entered here, the programmed alarm and/or on-screen alert can be raised (see below).
Page 142: Text In Image
All serial ports on the unit support the option for Text In Image. For serial transmission ensure one of the serial ports is configured appropriately, refer to System Settings->Serial Ports’. Select the configured port from the drop down list. SD Excel...
Page 143 Text Filter Select the text filter option from the drop down list. The options are: Plain Text (default), RAW, EPSON, Laserjet, DM POS Receipt, DM POS Journal, TVC-1066 Line length This identifies the length of the lines that will be stored with the image. The default setting is 20 characters i.e.
Page 144 Increasing the number of keywords can significantly increase the number of stored events. Note: Refer to ‘Text In Image’ and ‘Serial Ports’ for further guidance on integrating text data. Serial (Yellow) Select to open the System->Serial Ports menu Refresh (Purple) Refreshes the information on the Current Page SD Excel...
Page 145: Archive
Archive The Archive menu allows the selection of the Archive media and initiation of the archive process.
Page 146 Space currently available on CD-R/DVD-R or USB device. Archive button Select this button to begin the Archive process. Status During Archiving, status messages will be displayed detailing the archive process. Refresh (Purple) Refreshes the information on the current page SD Excel...
Page 147: Oracle Dome Configuration
Oracle Dome Configuration If a camera channel has a Dedicated Micros Oracle dome camera connected, the Oracle Configuration menus can be used to view settings and establish Presets, Patrols and Privacy Masks. The Status page details fundamental information regarding the status of the Oracle Dome i.e. the model type and the version of software/firmware installed.
Page 148 Details the minimum temperature the camera unit has reached. Fan 1 Status Details the operational status of installed Fan 1. Fan 2 Status Details the operational status of installed Fan 2. Relay State Details the operational status of the camera unit’s relay. SD Excel...
Page 149 Software Version This identifies the version of software the camera unit is running. Firmware Version This identifies the version of firmware the camera unit is running. Bootloader Version This identifies the bootloader version of the camera unit is running.
Page 150 Select this button to store the current preset position to the Oracle Dome camera’s memory. Goto Preset (Green) Select this button to immediately send the camera to the currently stored preset position. Delete Preset (Yellow) Select this button to delete the currently displayed preset configuration. SD Excel...
Page 151 Sectors This menu allows the Oracle Dome cameras 360 degree field of view to be split into 32 segments. These segments can be named and set to accompany the displayed camera image via the OSD Excel menu. They can be used to aid an Operator in quickly identifying the current camera position. Camera ID Selected camera channel.
Page 152 Select the Dwell time (in seconds) the Patrol will remain at this Preset position. Save (Grey) Select to store the preset sequence to the unit and the Oracle Dome camera memory. Play (Red) Select to activate (play) the current patrol sequence. SD Excel...
Page 153: Privacy Masks
Privacy Masks This menu allows Privacy Masks to be established and configured for the Oracle Dome camera. The Privacy Mask feature can be used to ‘blank out’ sensitive or private areas which appear in the cameras field of view. Camera Selected camera channel.
Page 154 Finish New (Green) Select this option to finish creation of privacy mask. Show (Yellow) Select this option to show camera view with existing privacy mask displayed. Delete (Blue) Select this option to delete the currently displayed privacy mask. SD Excel...
Page 155: Osd Excel Settings
OSD Excel Settings This menu allows the Oracle Dome OSD Excel (On Screen Display) information to be configured. This text will accompany displayed camera images in the Viewer and on a local monitor. Preset Title Position Select desired position to locate the Preset Title information. Sector Title Position Select desired position to locate the Sector Title information.
Page 156 If unselected, a camera will stop when it reaches its maximum upper or lower extremity. HyperD Mode If the connected Oracle Dome camera is part of the HyperD non-wide dynamic range, select to activate the unique wide dynamic function. SD Excel...
Page 157 Digital Zoom Select to activate the Digital Zoom function e.g. the camera will zoom within the actual image. Optical Zoom Limit Select to limit the Oracle Domes optical zoom function. By default ‘100x’ is selected and the camera can zoom to its maximum capabilities.
Page 158: Event Settings
Select the time ( in seconds) for which the camera is inactive i.e. no operator input, before returning to its home position. Save (Grey) Select to store Event Settings to the unit and the Oracle Dome camera memory. SD Excel...
Page 159: Event Search
Event Search The Event Search menu allows recorded event images to be quickly searched for and reviewed. The Search criteria can be limited to a specific date/time and/or individual cameras. Note: Event Search will only be available when the ‘Enable Event Search Page’ option is enabled via the System->Features->System menu.
Page 160: Event Search Results
Note that the view window will not increase in size, use the scroll bars to navigate the enlarged image. IMPORTANT: Still event images will only be available for video recorded in JPEG mode (MPEG4 thumbnail Stills will appear ‘blank’); however event data recorded in either JPEG or MPEG4 mode can be replayed. SD Excel...
Page 161: Unit Operation
Unit Operation The unit can be operated via the Viewer menus and the enclosed IR Remote Control, the optional keyboard or with a USB mouse. They can also be viewed and accessed remotely via the webpages and the ‘Viewer’ menu option.
Page 162: Operating The Viewer
The function of the keys will change according to whether the unit is in Live or Playback mode. Overleaf are described the available Viewer menu pages. To display the colour coded menu options, press the OK button on the IR Remote Control or click the mouse button. SD Excel...
Page 163: View Control
View Control The View Control page allows connected video inputs to be displayed full screen or in Quad/Multi way display format. Full Show currently selected camera full screen. Green Quad Displays four images on-screen, putting the currently selected camera in the top left segment of the four, and will increment all cameras by one if pressed again i.e.
Page 164: Video Control
The Video Control page offers video playback functions i.e. play, pause, rewind and fast forward. Freezes current video display. Green << Rewinds current video. Yellow > Plays from current position. Blue >> Fast forwards video up to current recording position. Purple Next Opens the next page of the Viewer menu. SD Excel...
Page 165: Selection Page
Selection Page The Selection page allows access to various image and event playback functions. Play Switches the selected camera(s) shown on screen into Play mode. Green Goto Opens the GoTo menu. Yellow Event Displays the Events menu. Blue Menu/Setup* Opens the Configuration menu pages. IMPORTANT: Selecting this option will exit the Viewer menus.
Page 166: Map Options
The image can include ‘hotspots’ which link to available cameras. Cameras are then selected via the hotspots. Note: For information on creating Camera Selection maps. Refer to the Configuration Menu: Display Settings->Map Config’ section for further information. SD Excel...
Page 167: Ptz Program Option
PTZ Program Option The Program page allows preset settings for PTZ cameras to be established and an ‘Origin’ base position established for a camera. Note: This page will only be available for PTZ cameras. Preset If Preset positions have been established for the PTZ camera, select the Preset option and enter a preset number.
Page 168: Program Page
Any command that sends the camera to a coordinate will use this origin as its starting point.. Note: This option is only available for Oracle dome cameras. Purple Back Return to the ‘PTZ Program Option’ page. SD Excel...
Page 169: Dome Menu Option
Dome Menu Option The Dome Menu page allows camera specific menus imbedded on the currently viewed Telemetry camera to be accessed and configured. Dome Menu Select to view camera specific sub-menus embedded on the Telemetry camera (if applicable). The camera specific menus will be overlaid across the screen.
Page 170: Timeline Navigation
Selecting the Exit (Purple) button will always exit the Timeline Navigation menu. Note: Depending on the scale used to review the video i.e. Seconds, Minutes, Hours, or Days; the above softkey options will differ, however the same intuitive principles remain. SD Excel...
Page 171: Video Timeline
Video Timeline The Video Timeline allows intuitive, rapid navigation within recorded video. To aid navigation, the timeline can be set to display periods ranging from 15 seconds to four weeks. The timeline can be clicked anywhere in the scale to instantly play recorded images from that point. Date/Time Display (Grey) Shows the currently selected date/time.
Page 172: Change Scale
Right Navigation Arrow will play video from one hour in advance. This can also be selected via the Yellow softkey button. SD Excel...
Page 173: Event List
Event List Alarms and activity detection, plus system Events i.e. camera fails, are tagged and stored in the Event List. Each Event is labelled with an event type (alarm, activity or system) and its time and date. To view any additional pages of Event data, use the Yellow/Blue Softkeys. If viewing locally, use the Up/Down Directional buttons to select a specific Event, press the OK button to display the full list.
Page 174: Event Copy And Search Menu
Select to display the Filter Search menu, refer to; Operating The Viewer->Filter Search for further guidance. Blue Activity Select to open the Activity Search menu, refer to; Operating The Viewer->Activity Search for further guidance. Purple Next Opens the Play menu for the currently selected camera. SD Excel...
Page 175: Filter Search Menu
Filter Search Menu When searching a large number of stored events, the Filter Search menu allows events to be filtered by time, camera channel and category. Filter Search Box From Time Select a start time for the Event filter. Events prior to this time will be ignored.
Page 176 Select to enter the current Time/Date. Any additional displayed search criteria will remain. Blue Apply Select to apply any changes made to the Filter Search box. Purple Close Select to return to the Event Copy and Search menu. SD Excel...
Page 177: Activity Search Menu
Activity Search Menu The Activity Search menu allows the search criteria to be further narrowed to only include events which have occured within specific segments of the camera view. Firstly, enter a start/end Time and Date, then select a camera channel. Use the Grid option to select a specific segment of the camera view.
Page 178 Time/Date will be displayed plus all available cameras. Yellow Grid Select to open the Grid menu. Blue Apply Select to apply any change made to the Filter Search box. Purple Close Select to return to the Event Copy and Search menu. SD Excel...
Page 179: Activity Grid Menu
Activity Grid Menu The Activity Grid menu allows the event search criteria to be further narrowed to only display events which have occured within a segment of the camera view. A grid will be displayed across the image of the selected camera channel. Using the options outlined below, the grid can be configured to create activity zones within the image.
Page 180: Archive Selection
When the footage reaches the end point you wish the archive to stop, select the ‘Mark’ button again. This marked footage will now be added to the Copy menu for download purposes. The Copy menu can be accessed directly via the ‘Archive’ button. Any marked start point can be deleted via the ‘Clear’ button. SD Excel...
Page 181 Selecting Video For Archiving Via The Archive option / Copy Event List When viewing the footage intended for download, enter a start and end point for archive purposes via the Mark (Red) button. The Copy Event List will be displayed detailing each added archive (based on the marked start and end point).
Page 182: Copy Menu
The textboxes within the ‘Start’, ‘Finish’, ‘Protect (Days)’ and ‘Cameras’ fields can be edited as required. Selecting a blank Archive line will allow direct entry of data i.e. start/end time and date, protection period and the camera channels to be included in the Archive. SD Excel...
Page 183 Archive Media Select the media device (USB or CD-R/DVD-R) for archive purposes. Include Viewer Application Select whether the application required to view archived data is included in the download. Used (Blue) Displays the space (as a percentage) already used on the chosen media device.
Page 184: Spot Monitor / On-Screen Display (Local Monitor Only)
Select ‘Seg’ to exit when all segments have been assigned a camera channel. When accessing Quad or Multiscreen display, the custom display config will now be displayed. Purple Next Opens the next page of the Viewer menus. SD Excel...
Page 185: Using The Optional Keyboards
Using the Optional Keyboards The unit can also be controlled using an optional Dedicated Micros keyboard. This is connected via the KBD connector on the rear of the unit and provides the same control functions as the I.R Remote Control. Note: Ensure the Keyboard Enable 485 bus option on the System->Features->System page is checked to allow keyboard support.
Page 186 Pause mode - Steps back one frame. Live mode - Freezes the current display window Play mode - Pauses video in playback. Live mode - puts the unit into playback using the last stored playback time Displays the Events list menu. SD Excel...
Page 187 Opens the GOTO menu For future use. Toggles control from Main to Spot monitor. Allows the numeric selection of a camera (numeric selection defaults to camera selection). Allows entry of camera and Preset and numbers. For future use. For future use. Triggers the wash function on a telemetry camera.
Page 188 Instructs the selected telemetry camera to automatically pan (on cameras that support this function). Used as menu and on-screen navigation keys. Pan and tilt control for telemetry cameras. In Play mode: Used to Mark Start/End positions. ln Live mode: Displays the Copy List and archive controls. Exits menus. SD Excel...
Page 189: Appendix A - Pinouts
Appendix A - Pinouts Alarm & Relay Pin Outs Using Serial Ports It is possible to connect a variety of telemetry cameras to the unit, using the following table as a guide to the serial port connections. RS485 Connectivity (2 wire) (Serial 3, 4) Description RS485 + (A) RS485 - (B)
Page 190: Appendix B- Remote Control Codes
Below are detailed the procedures to follow and a listing of the codes associated with common television brands. How to Program The SD Excel IR Remote Control Turn the TV you wish to control ON.
Page 191 2021/2037/2045/2050/2210/2216/2239/2240/2267/2276/2280/2282/2298/2333/2377/239 7/2497/2502/2507/ 2517/2518/2521/ 2557/2563/ 2572/2577/2597/2609/2615/2616/2622/ 2636/2646 2003/2009/2011/2037/2053 /2055/2059/2077/2084/2093/2094/2195/2200/2237/2245/226 1/2262/2263/2274/2287/2312/2330/2355/2356/2359/2364/2381/2389 /2451/2452/2492/2 498/2527/2542/2580/2581/2582/2594/2596/2598/2600/2605/ 2608/2616/2645/2647/649 Panasonic 2042/2043/2044/2063/2074/2085/2086/2100/2107/2114/2123/2130/2134/2136/2138/2168 /2187/2226/2252/2324/2357/2361/2388/2408/2415/2416/2428/2429/2473/2474/2475/249 8/2511/2520/2523/2528/2562/2578/2585/2599/2601/2603/2620/2636/640/ Philips 2000/2003/2031/2032/2037/2055/2056/2068/2070/2087/2093/2108/2109/2112/2115/2119 /2122/2126/2129/2131/2132/2133/2141/2146/2147/2149/2150 2152/2154/215 5/2157/2163/2170/2182/2183/2190/2192/2197/2206/2214/2215/2229/2231/2246/2248 2249/251/254/257/264/275/277/283/291/297/323 /338/339/343 /383/384/393/398/436/4 53/454/476/477/478/479/480/481/495/498/499/554/567/568573/604/623/624 /627/629/ 635 /636/637/643/644 Pioneer 2029/2037/2081 /2093/2379/2382/2387/2390/2392/2444/2449/2498/2584/2627/26/2637 Sanyo 2003/2004/2006/2014/2016/2021/2023/2024/2025/2030/2032/2076/2088/2161/22 20/2223/2290/2292/2401/2442/2443/2492/2494/2497/2501/2504/2513/2532/260 5/2627/2629/2633 Sharp 2001/2005/2023/2040/2101/2102/2127/2139/2160/2162/2186/2193/2207/2219/2335/235 2/2354/2360/2365/2366/2368/2372/2373/2376/2403/2407/2417/2422/2423/2424/2430/24 31/2432/2433/2434/2455/2456/2457/2458/2459/2460/2461/2462/2463/2483/497/502/506 /513/533 Sony 2004/2009/2021/2023/2024/2047/2067/2076/2078/2091/2097/2098/2110/2111/2118/212 1/2125/2135 /2142/2166/2177/2185/2204/2234/2236/2326/2344 /2345/2346/2349/2363/...
Page 192: Appendix C - User Activity Logging
Telemetry IP address of user, Local or Remote, Channel Controlled, Command sent Configuration Username, Local or remote, Menus changed, Items changed Playback Username, Remote, Channel viewed, From time Live Username, Remote, Channel viewed System Events Username, Event Info SD Excel...
Page 193: Appendix D - Locate Ip Address (Serial)
Appendix D - Locate IP Address (Serial) Locating the unit IP address using the serial port For guidance on locating the unit’s IP address via a serial port connection, please see below: With the mains power off, connect a standard 9DF-9DF RS232 communications cable from the PC to one of the serial port connections on the rear of the unit.
Page 194: Appendix E - Videolan Vlc
* Click on one of the items advertised by the server. The server broadcasts SAP announcements periodically, the packets contain SDP entries which describe the stream contents for each multicast enabled camera. VLC listens for SAP announcements and adds them to the playlist. SD Excel...
Page 195: Appendix F - Third Part Ip Camera
Open a File Transfer Protocol (FTP) client to connect to the unit, refer to the FTP client’s supporting documentation for guidance on how to connect to the SD Excel. Note: The URL of the unit will be required before a connection can be made.
Page 196: Appendix G - Monitor Output
Appendix G - Monitor Output Open a File Transfer Protocol (FTP) client to connect to the unit, refer to the FTP client’s supporting documentation for guidance on how to connect to the SD Excel. Note: The URL of the unit will be required before a connection can be made.
Page 197: Appendix I - Unit Specification
USB port. TEXT SUPPORT Through the inclusion of Text Support, the SD Excel can search captured transaction data for specific goods purchased, transaction numbers, credit card references, keywords etc. and jump straight to the associated video sequence. Till interfaces are available for a wide range of till systems.
Page 198 JPEG & MPEG-4 format files. 4CIF, 2CIF, CIF & QCIF resolution. User definable file size and bit rate. SD EXCEL DATA Serial Ports: 4 - 2xRS232 2xRS485 Ethernet: 1x Ethernet RJ-45 10/100 Ethernet connection. USB: 2 x USB 2.0 Connector.
Page 199: Appendix H - Status Pages
Appendix H - Status Pages General Information About (Blue) Select to open to the System->Status->About page. Refresh (Purple) Refreshes the information on the current page.
Page 200: Turbo Mode Profiles
Profile Record menu (Record Settings->Profile Record) for further information on the Turbo Mode function. Live Trans (Red) Select to open the Network->Live Trans page. Prof Rec (Green) Select to open the Record Settings->Profile Record page. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 201: Codec Loading
Codec Loading This page details the demands placed on each codec in the form of CIF Usage (per sec) and Bitrate Usage (kbps). The table displayed highlights the current loading and the maximum Bandwidth (kbps) and Encode/Decode Processors (CIF/s) that can be placed on each codec. Note: The Encode figure combines both record loading from a local camera channel and transmission encoding.
Page 202 The ‘Status’ section will provide valuable information on whether the unit should be operating in Turbo Mode or not. Basic/Advanced Select to open the System->Status->About->Codec detail page. About (Green) Select to open the System->Status->About page. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 203: Camconfig Details
Camconfig Details This menu provides detailed information on the type of camera i.e. analog or IP and for IP cameras, the supported resolution and capabilities. About (Green) Select to open the System->Status->About page. Refresh (Purple) Refreshes the information on the current page.
Page 204 Capabilities Select to open the Capabilities menu. This menu details the function capabilities of the unit. About (Blue) Select to open the System->Status->About page. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 205: Ui Information
UI Information This menu details basic information regarding the unit. The java applet path is also shown. The default location will always be the applet installed on the unit. If multiple units are being accessed remotely, all can be assigned the same Viewer applet to lessen the load time required when accessing different DVRs/ Servers, refer to the Viewer Defaults menu for further guidance (Display Settings->Viewer Defaults).
Page 206: Profile Record Tables
This page shows the different settings available in the record configurations. The current default settings are indicated by crosses. Choose Setting Select the profile tables of the host product About (Blue) Select to open the System->Status->About page. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 207: Camera Overview
This page details the general settings assigned to each of the local camera channels. To edit the settings assigned to any of these cameras; Click on Local Camera Setup to edit the settings held in the SD Excel; Click on ‘Setup’ to open the Setup menu on the connected video source.
Page 208: Ip Network Load
IP Network Load This page illustrates the network traffic utilised by the SD Excel. The page refreshes every second. Refresh (Purple) Refreshes the information on the current page. SD Excel...
Page 210 Appendix C - User Activity Logging ......192 Installing An Advanced Feature License ....... 126 Appendix D - Locate IP Address (Serial) ....193 Installing the SD Excel Unit .......... 12 Appendix E - Videolan VLC........194 Installing the Unit ............8 Appendix F - Third Part IP Camera ......
Page 211 Protect Video ............... 83 Zone Actions Camera ..........96 PTZ Program Option ..........167 Zone Activation ............99 Quick Overview of SD Excel Record Settings ....9 Zone Inputs ............... 92 Record Settings ............75 Remote Control ............20 Remote Monitors ............54 Remote Reporting ............
Page 212 MI-I-SDEX/E1-0 www.dedicatedmicros.com...

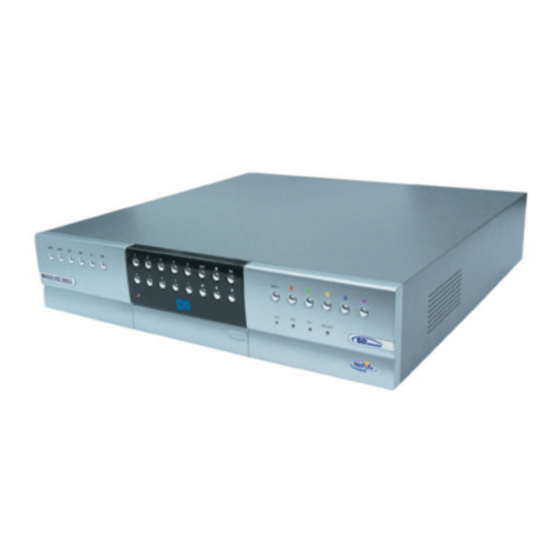

Dedicated Micros SD Excel Installation Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dedicated Micros SD Excel

Summary of Contents for Dedicated Micros SD Excel

Table of Contents
