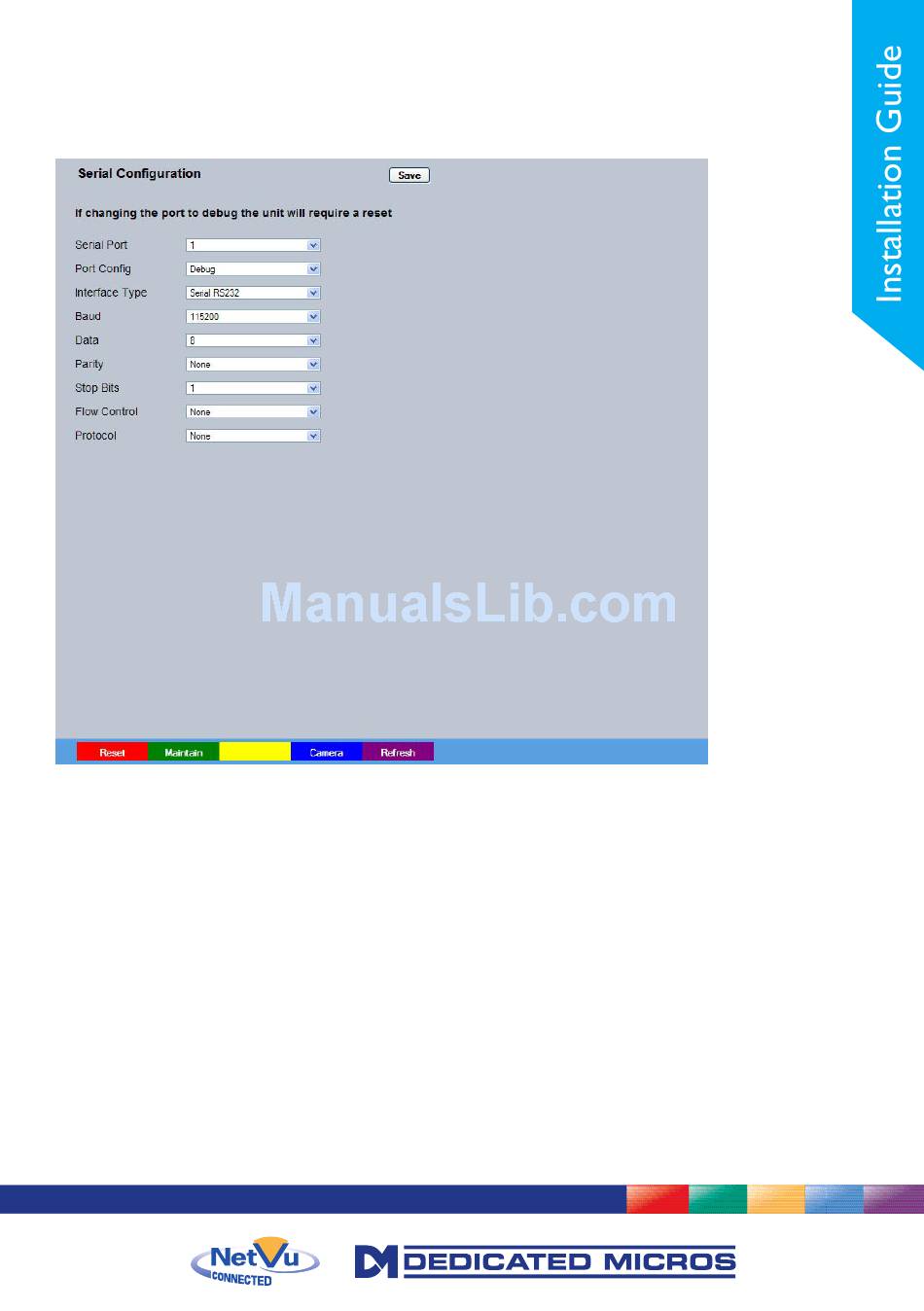

Serial Ports
This menu allows configuration of the unit's Serial ports, refer to 'Installing the Unit' for
installation information.
Serial Port
Port Config
Note:
It is recommended that Serial port 1 be set for 'Debug' operations.
Interface Type
Baud/Parity/Data/Stop/Flow Control These options allow the Serial port communication settings to
Note:
When a telemetry protocol is selected, these settings will default to pre-determined values and
should not normally be altered.
These are the four serial ports available.
The serial ports can be configured to specific uses.
Select from:
None
Debug
PPP
Telem
Comm
EPOS
EPOS (Electronic Point Of Sale) device
Choose the type of serial interface being used. Select from RS232,
RS485 or RS422.
be configured.
Switches port off
Sets port for serial communications
Sets port for Point to Point Protocol
Sets port for Telemetry purposes
Sets port for Comms purposes
Sets the serial port for connection to an
39
