Dedicated Micros SD Excel Installation Manual page 46

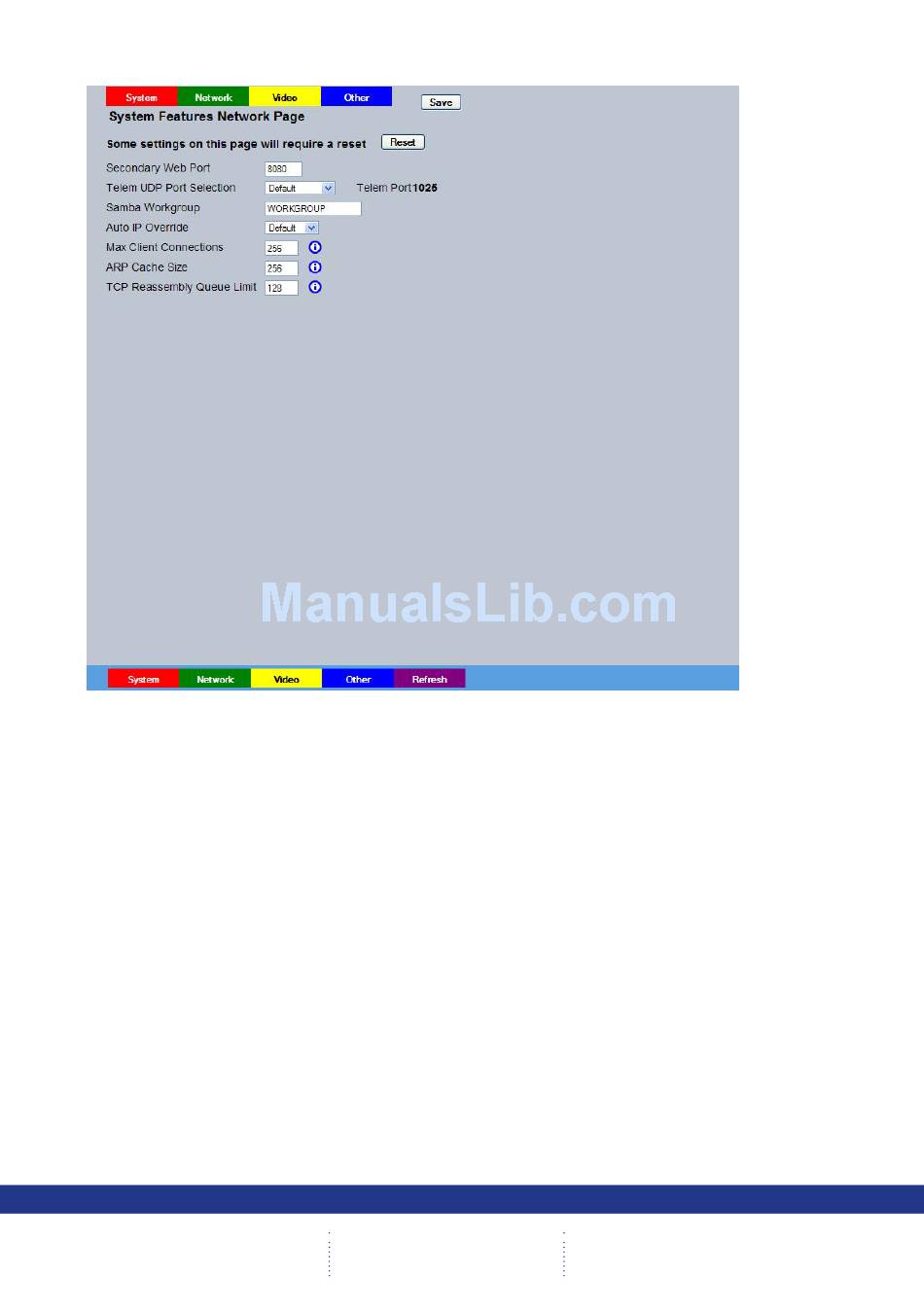

Network
Secondary Web Port
Telem UDP Port Selection
Samba Workgroup
Max Client Connections
ARP Cache Size
TCP Reassembly Queue Limit
46
If the default port setting for web serving has already been allocated, it
is possible to configure a second port number
i.e. the secondary web port can be set to 8000 if the default web port
(80) is blocked by the network or firewall.
Select 'Automatic' to enable the unit to select a suitable port for
telemetry purposes.
Select 'Default' to use the default port settings (1025).
Select 'User Defined' to use settings entered in the 'Telemetry Port'
option.
Enter the name of the Samba workgroup to enable
directories to/from the unit. To access the unit via a PC running SMB
(and has access to the same Workgroup); open My Network Places-
Entire Network- Microsoft Windows Network. The Workgroup containing
the unit and PC(s) should then be available. Files and folders can then
be copied/added as required.
This setting limits the number of client connections to the server. The
default value is 256 but could be increased if there is heavy network
traffic.
This setting limits the number of cache entries available in the ARP
table. The default setting of 256 is adequate for most instances
This setting limits the maximum number of TCP segments
allowed in the reassembly queue, to protect against a common DoS
attack.
SD Excel
sharing of files and
