Maps
This menu allows images to be imported and used as maps that can be displayed in the Viewer Menus.
The map can then have hotspots added to allow quick navigation to individual cameras.
An overview 'System Selection Map' can also be added to navigate between different systems.

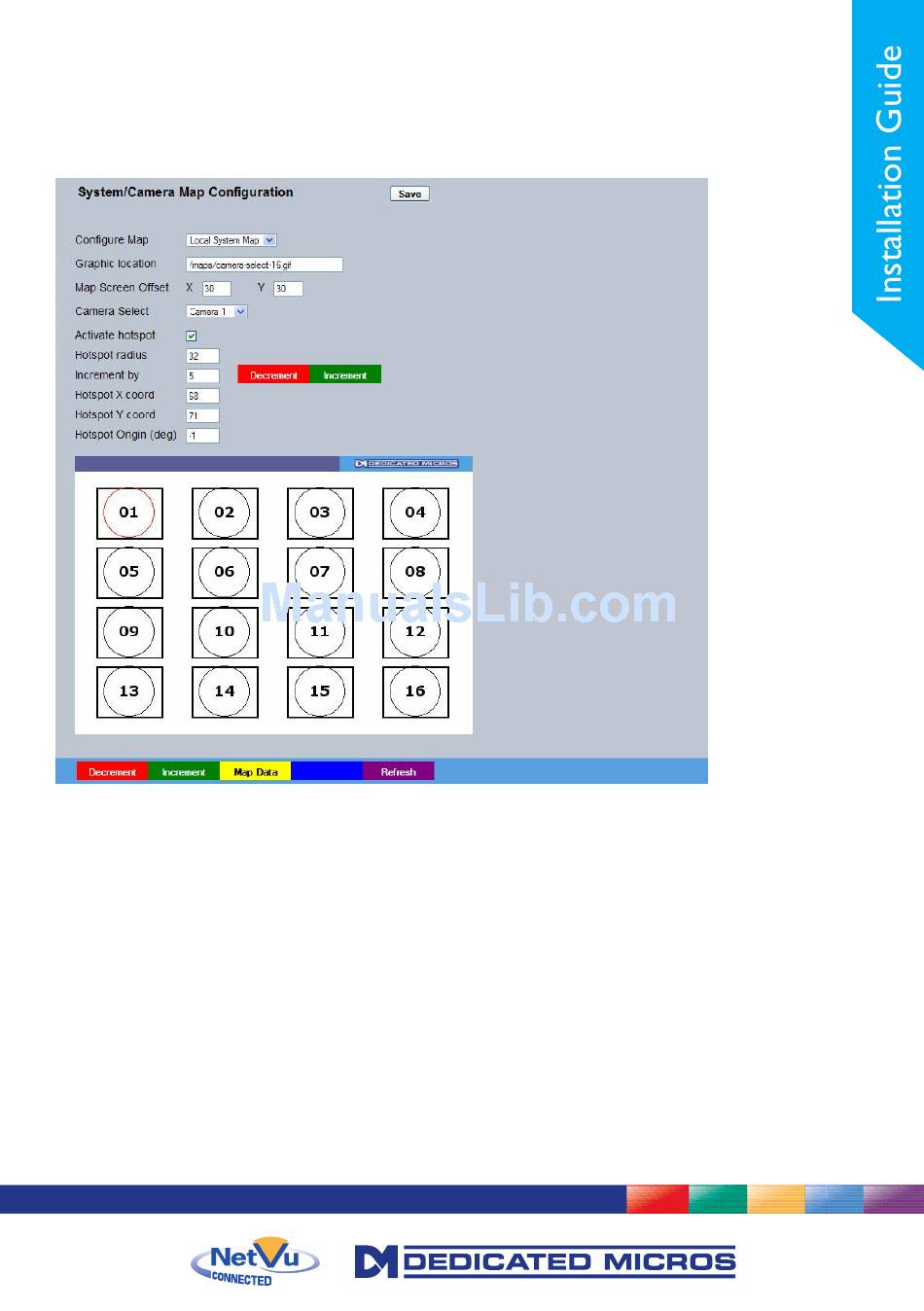

Configure Map
Graphic Location
Map Screen Offset
Camera Select
Activate Hotspot
Hotspot Radius
Increment by
Decrement (Red)
Increment (Green)
Leave as 'Local System Map'. This is the map from which connected
cameras can be accessed.
Enter the location of the relevant map graphic, including the full
I.P address of the server holding the map. The map image will be
displayed if linking is successful. The linked map can be in gif or jpeg
format and should not exceed 500 by 350 pixels.
These coordinates represent the top left corner of the map graphic as
displayed in the Viewer menu.
Select which camera is to be linked to the created hotspot.
Select to activate and display the camera hotspot.
Enter the radius (in pixels) of the hotspot.
If using the Decrement (Red) or Increment (Green) buttons, enter the
size (in pixels) that the hotspot will increase/decrease.
Select to reduce size of hotspot.
Select to increase size of hotspot.
