Activity Grid Menu

The Activity Grid menu allows the event search criteria to be further narrowed to only display
events which have occured within a segment of the camera view. A grid will be displayed across the
image of the selected camera channel. Using the options outlined below, the grid can be configured to
create activity zones within the image. Only events which have occured wthin these zones will then be
displayed in the Activity Search menu for the chosen camera channel.
Red
Green
Yellow
Blue

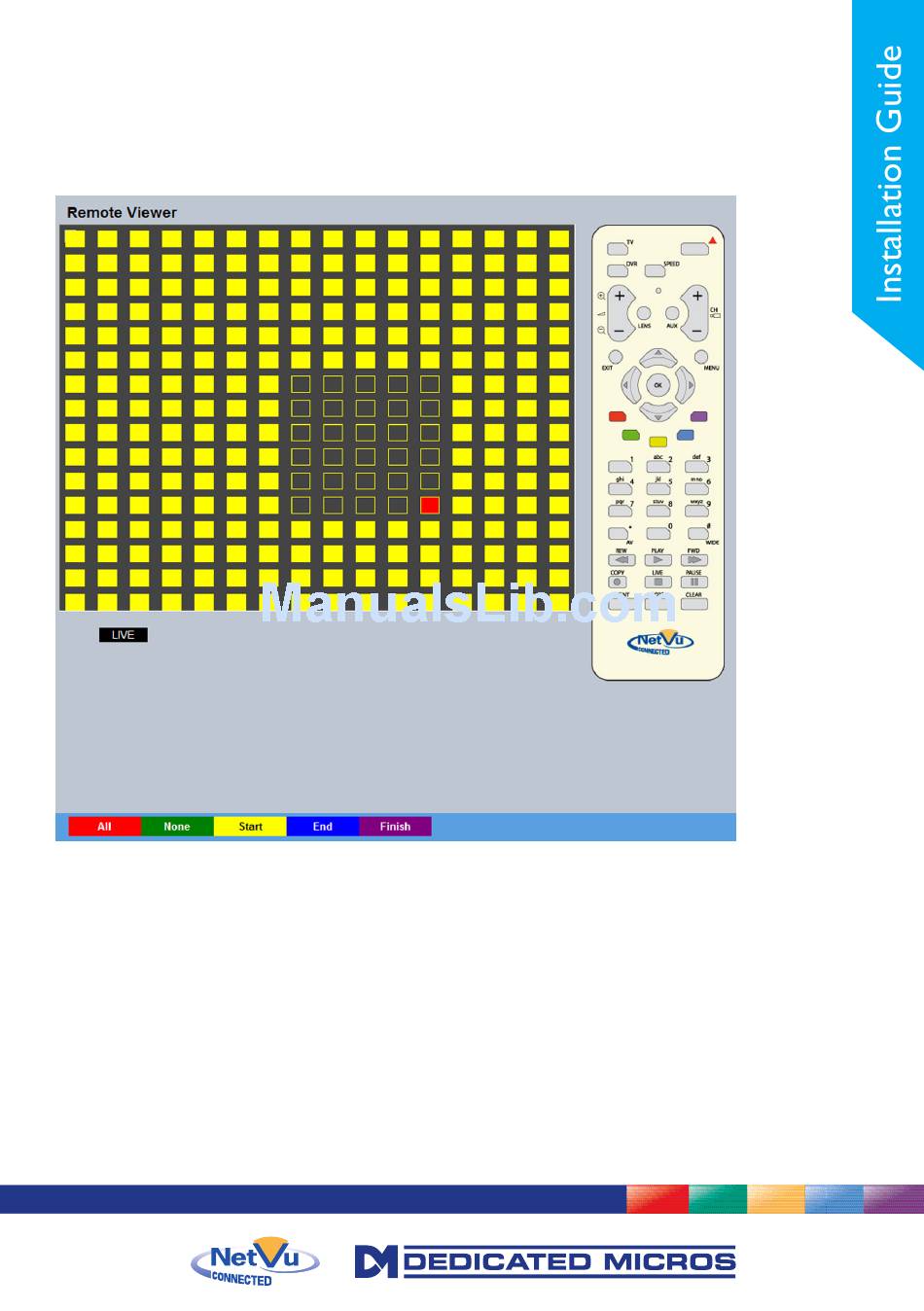

If viewing remotely, a zone can be created directly via the mouse. Simply click on a cell and then on a
separate cell. An area NOT to be included in the Activity zone will be created linking these points.
All This option will display a default rectangle of 18x16
cells across the video image.
None This option will delete all cells from the displayed
video image.
Start Highlight a cell using the Directional buttons on the IR
Remote Control (if viewing remotely) and select Start
(Yellow). This will mark the start point of the area NOT
to be included in the activity zone.
End Highlight a cell using the Directional buttons on the IR
Remote Control (if viewing remotely) and select End
(Blue). This will mark the end point of the area NOT
to be included in the activity zone.
