Protocol
Note:
Refer to 'Appendix F' for a full list of supported telemetry protocols.
Reset (Red)
Maintain (Green)
Text In Img (Yellow)
Camera (Blue)
Refresh (Purple)

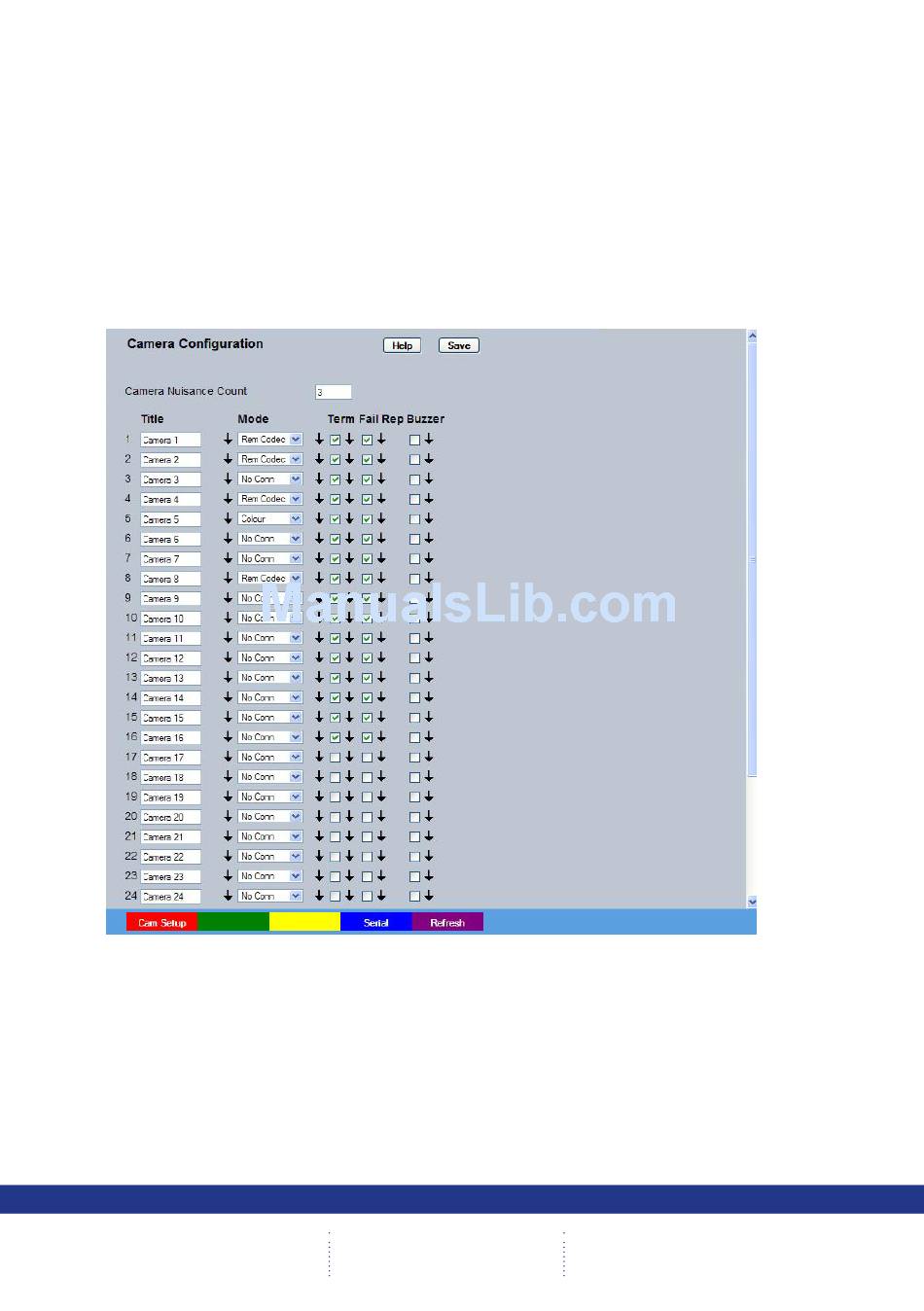

Camera Configuration
This page allows configuration of some features on all 32 cameras available to the unit.
Title
Mode
Term
40
This is a drop down list of serial telemetry protocols supported by the
unit.
Select to cycle the power to the unit.
Select to open the System->Maintain page
Select to open the Features & Text->Text->Text In Image page
Select to open the Camera Configuration page (below).
Refreshes the information on the current page.
Titles assigned to each camera are displayed.
The settings will default to 'Colour'. If Monochrome cameras are
used, select 'Mono'. Selecting 'Mono' will remove colour patterning.
If a particular channel is not in use or the camera has failed, select
'Not Connected'. 'Remote Codec' is used for NetVu Connected video
sources. 'IP Camera' is used for all NetVu Connected cameras and 3rd
party units.
The unit will automatically terminate the camera input with 75Ω. This
should be disabled if the video feed is looped through to another
device.
