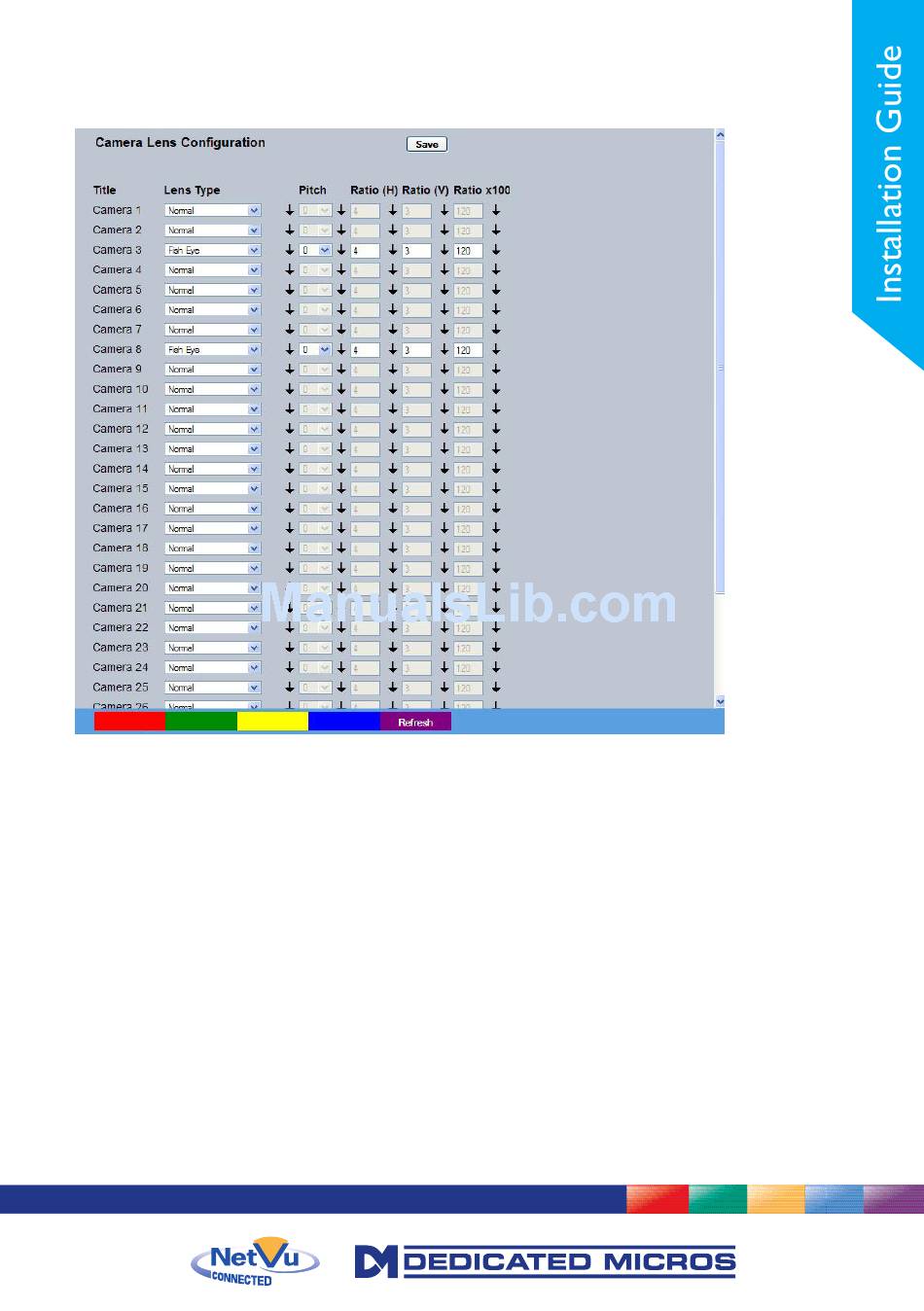

Camera Lens Configuration
This page allows different lens de-warping techniques to be applied to connected cameras. The NVR can
de-warp Fish-eye and Depressive Fish-eye lenses to present a normal aspect image.
Title
Lens Type
Pitch
Ratio (H)
Ratio (V)
Ratio x100
Cam Setup (Red)
Cam Overview (Green)
Refresh (Purple)
Shows the allocated name of the video source.
Allows selection of fisheye, depressive fisheye and normal lens types.
Allows the image to be rotated counterclockwise by ninety degrees.
Allows the horizontal ratio of a panamorphic lens to be set.
Allows the vertical ratio of a panamorphic lens to be set.
Allows the multiplier ratio of a panamorphic lens to be set.
Select to open the Camera -> Setup page
Select to open the Camera -> Overview page
Refreshes the information on the current page.
