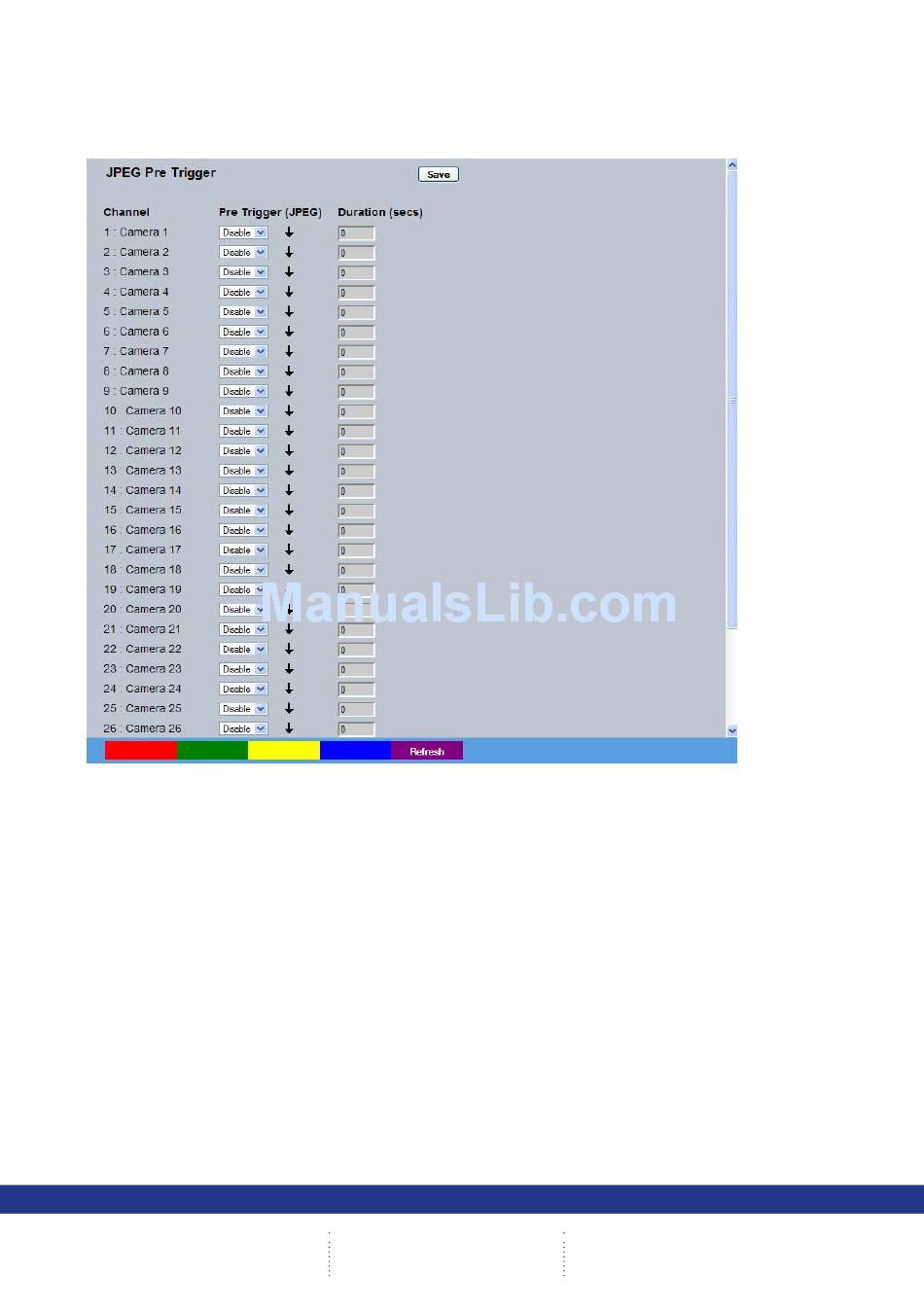

JPEG Pre Trigger

This menu enables configuration of the pre trigger feature (for cameras recording JPEG mode only).
When enabled, the pre-trigger feature will buffer and store alarm recording prior to an event trigger.
Channel
Pre-Trigger (JPEG)
Note: It is recommended that the Pre-Alarm option in the 'Alarm Settings-Zone Input' menu be set
to the same value as the Pre-Trigger setting. This will ensure successful playback of high
quality Pre-Trigger images. High quality pre-trigger images will only playback properly if review
(playback) starts prior to the pre-trigger initiation.
Pre-Trigger Duration (secs)
Refresh (Purple)
82
Only those camera channels set to record in JPEG mode will be
available for configuration.
Enabling the Pre-Trigger feature will buffer and store alarm recording
prior to an event trigger (in JPEG format). It will use the maximum
available memory dependent on other cameras requirements of the
buffer space. Select 'Enable' to activate.
The Pre-Trigger Duration is the maximum possible time that data will be
stored prior to an event trigger.
Refreshes the information on the current page
