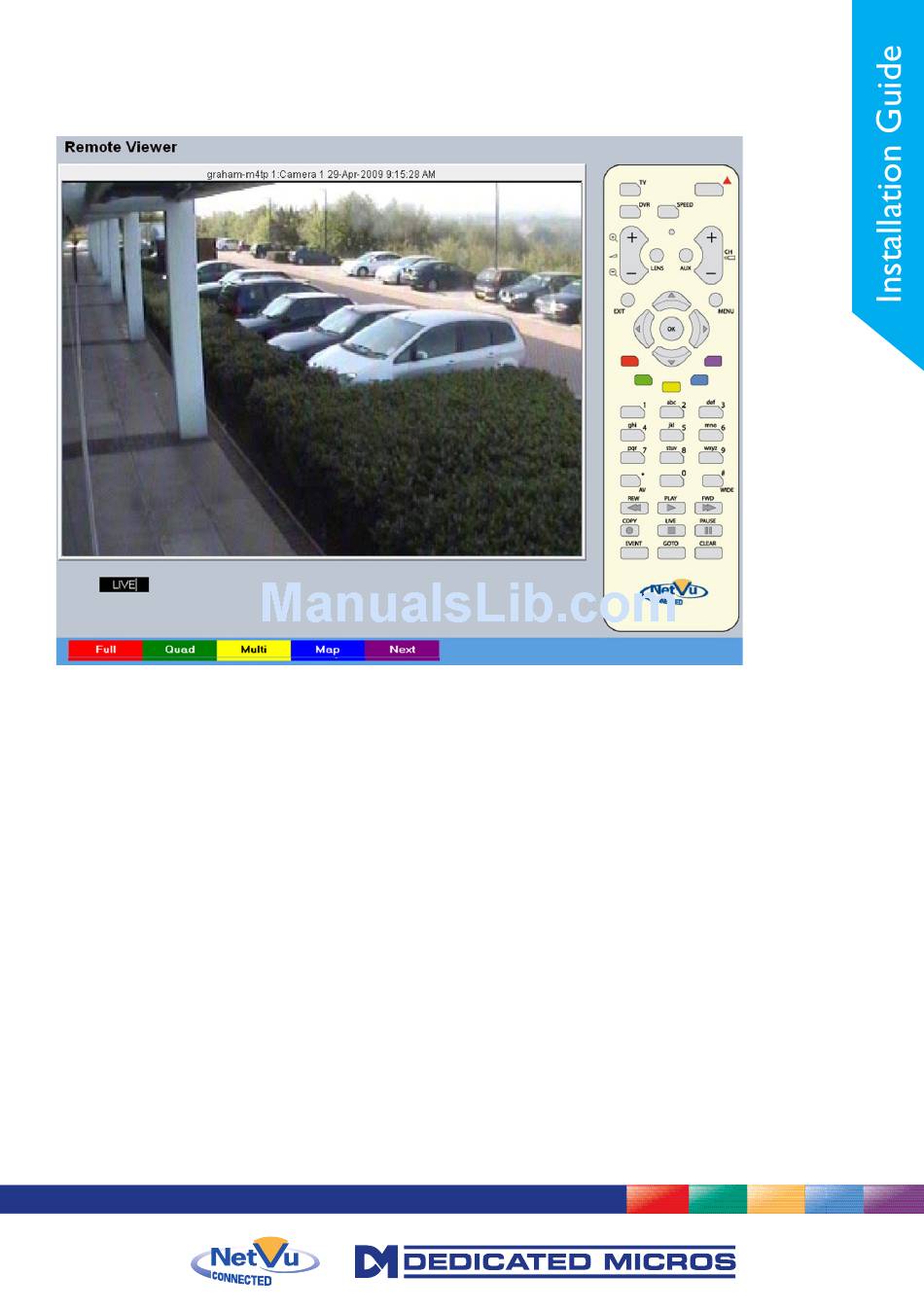

View Control
The View Control page allows connected video inputs to be displayed full screen or in Quad/Multi way
display format.
Red
Green
Note:
When a camera button is pressed to select a new camera, the new selection will be displayed in
the top left hand corner of the display. The next three connected cameras will be displayed in the
following three positions.
Yellow
Blue
Purple
Note:
For information on creating Camera Selection maps. Refer to the Display Setting->Map Config'
section for further information.
Full
Show currently selected camera full screen.
Quad
Displays four images on-screen, putting the currently
selected camera in the top left segment of the four,
and will increment all cameras by one if pressed again
i.e. if cam 1 is shown top left, cam 2 top right etc. then
the views will increment to cam 2 top left, cam 3 top
right etc.
Multi
By default displays nine images on-screen, putting
the currently selected camera in the top left segment,
followed by the next eight cameras and will increment
all cameras by one if pressed again i.e. if cam 1 is
shown top left, cam 2 adjacent etc. then the views will
increment to cam 2 top left, cam 3 adjacent etc.
Map
Displays either the default camera selection map or
a specific site map (if one has been configured) with
'hotspots' showing camera locations. A camera can be
viewed by selecting the corresponding hotspot.
Next
Opens the next page of the Viewer menu.
163
