H3C MSR 20-1X Installation Manual page 61

Enter 3 in the BootWare operation menu. The system displays:
===================<BOOTWARE OPERATION SERIAL SUB-MENU>===================
|<1> Update Full BootWare
|<2> Update Extend BootWare
|<3> Update Basic BootWare
|<4> Modify Serial Interface Parameter
|<0> Exit To Main Menu
==========================================================================
Enter your choice(0-4):
Enter 1, and the system displays:
Please Start To Transfer File, Press <Ctrl+C> To Exit.
Waiting ...CC
Select Transfer > Send file in the HyperTerminal window. The following window appears:

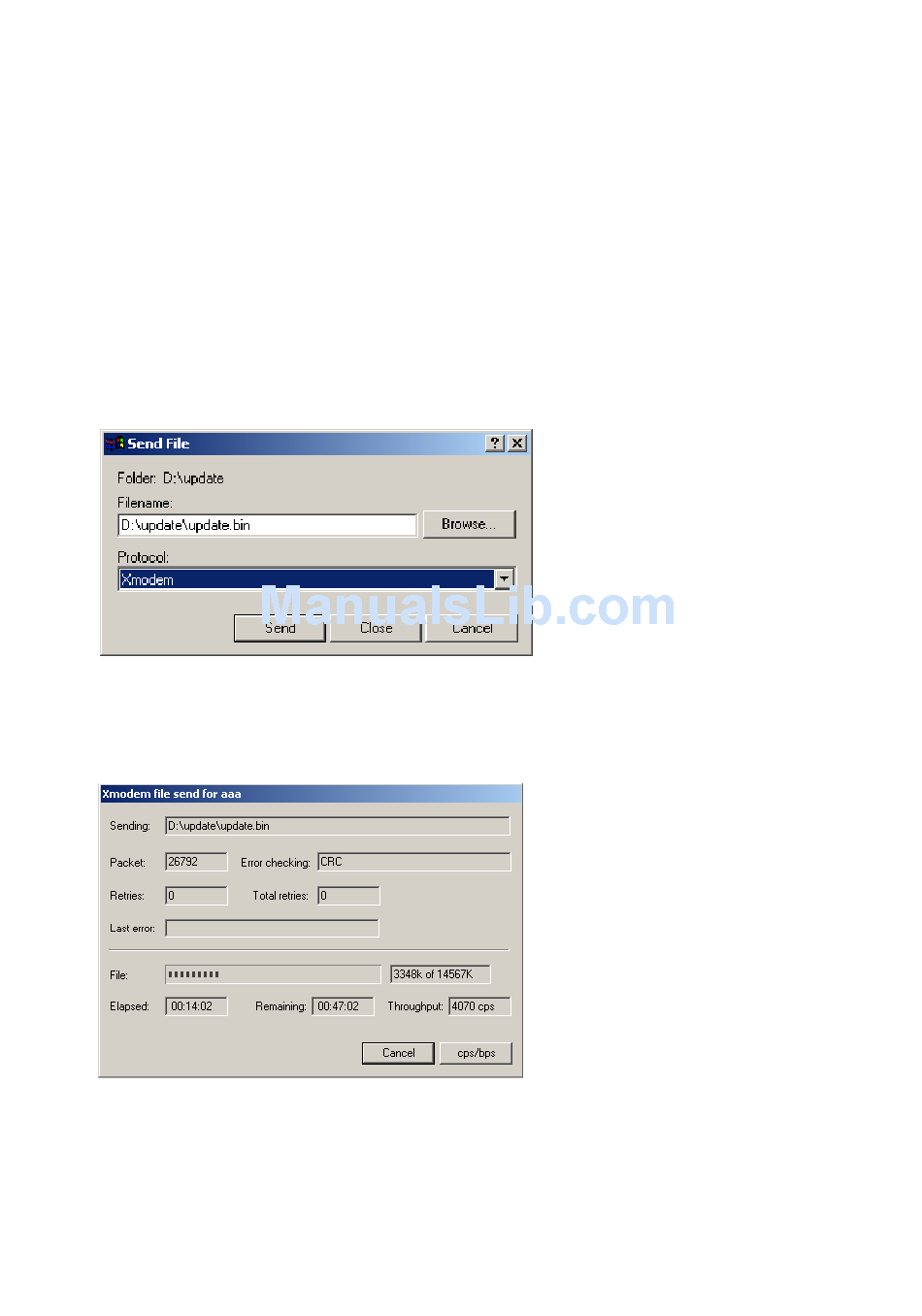

Figure 40 Send file dialog box
Click Browse... to select the application program file to be downloaded, and select XModem for the
Protocol field. Then click Send. The following interface appears:
Figure 41 Sending file interface
Upon completion of downloading, the following information appears, indicating that download and
upgrade succeeds:
Download successfully!
425045 bytes downloaded!
Change the baud rate of the console terminal from 1 15200 bps to 9600 bps, and then reboot the router.
