MSR 20-10 Router

Appearance
Front panel
1.

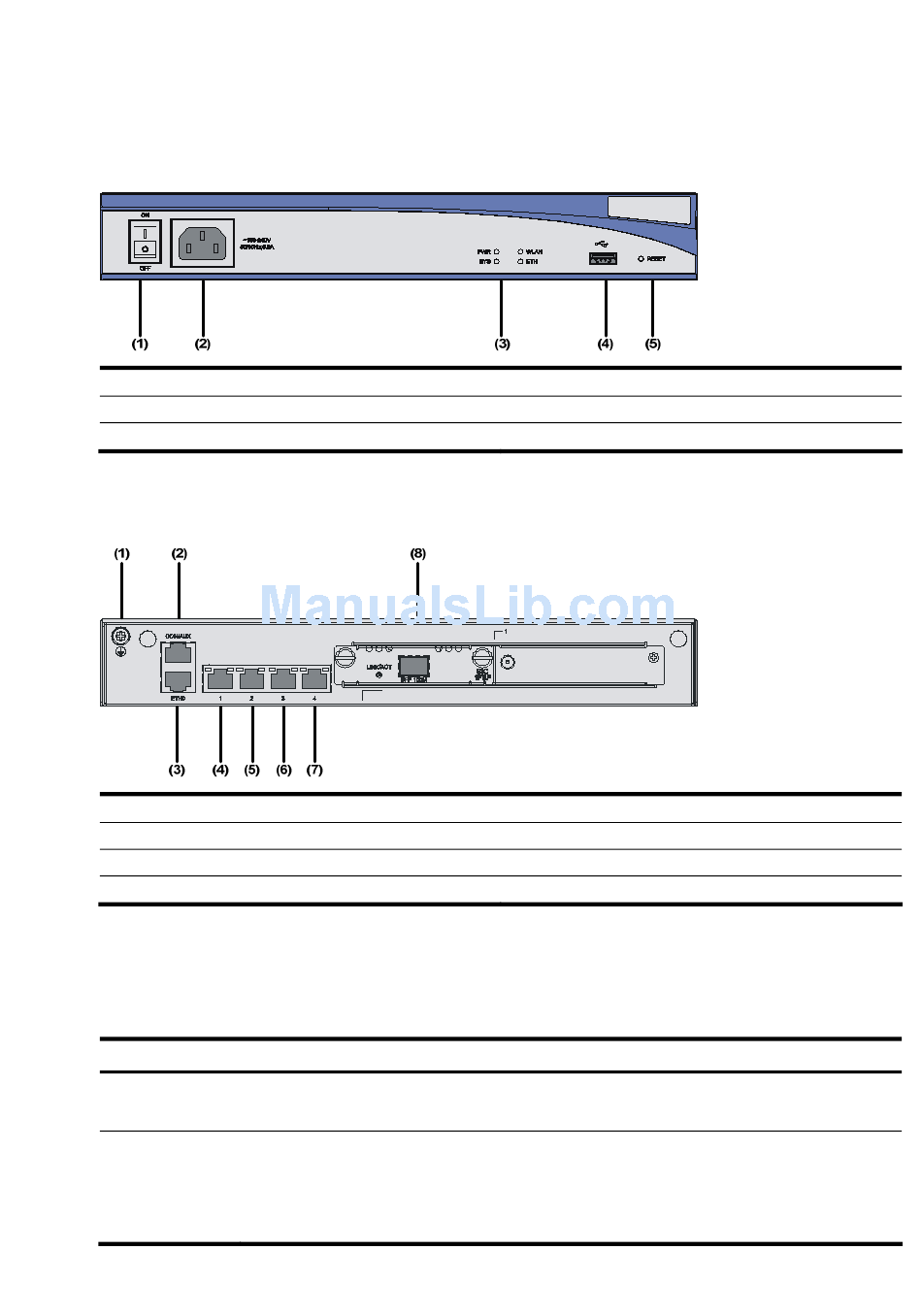

Figure 1 Front panel of the MSR 20-10 router
(1) Power switch
(3) LEDs
(5) RESET button
Rear panel
2.
Figure 2 Rear panel of the MSR 20-10 router
(1) Grounding terminal
(3) Layer 3 Ethernet interface 0 (ETH0)
(5) Layer 2 Ethernet interface 2
(7) Layer 2 Ethernet interface 4
Panel LEDs
Table 2 and
Table 2 Front panel LEDs of the MSR 20-10 router
LED
PWR
SYS
Table 3 respectively describe the LEDs on the front and rear panels of the MSR 20- 1 0 router.
Description
• ON: The router is powered on.
• OFF: The router is powered off.
• Green and fast blinking: The system is booting.
• Green and slow blinking: The system is operating normally.
• Yellow and fast blinking: The system is faulty.
• OFF: The system operation is abnormal.
(2) Power socket
(4) USB interface
(2) Console/Auxiliary interface (CON/AUX)
(4) Layer 2 Ethernet interface 1
(6) Layer 2 Ethernet interface 3
(8) SIC/DSIC slot
