MSR 20-15 Router

Appearance
Front panel
1.

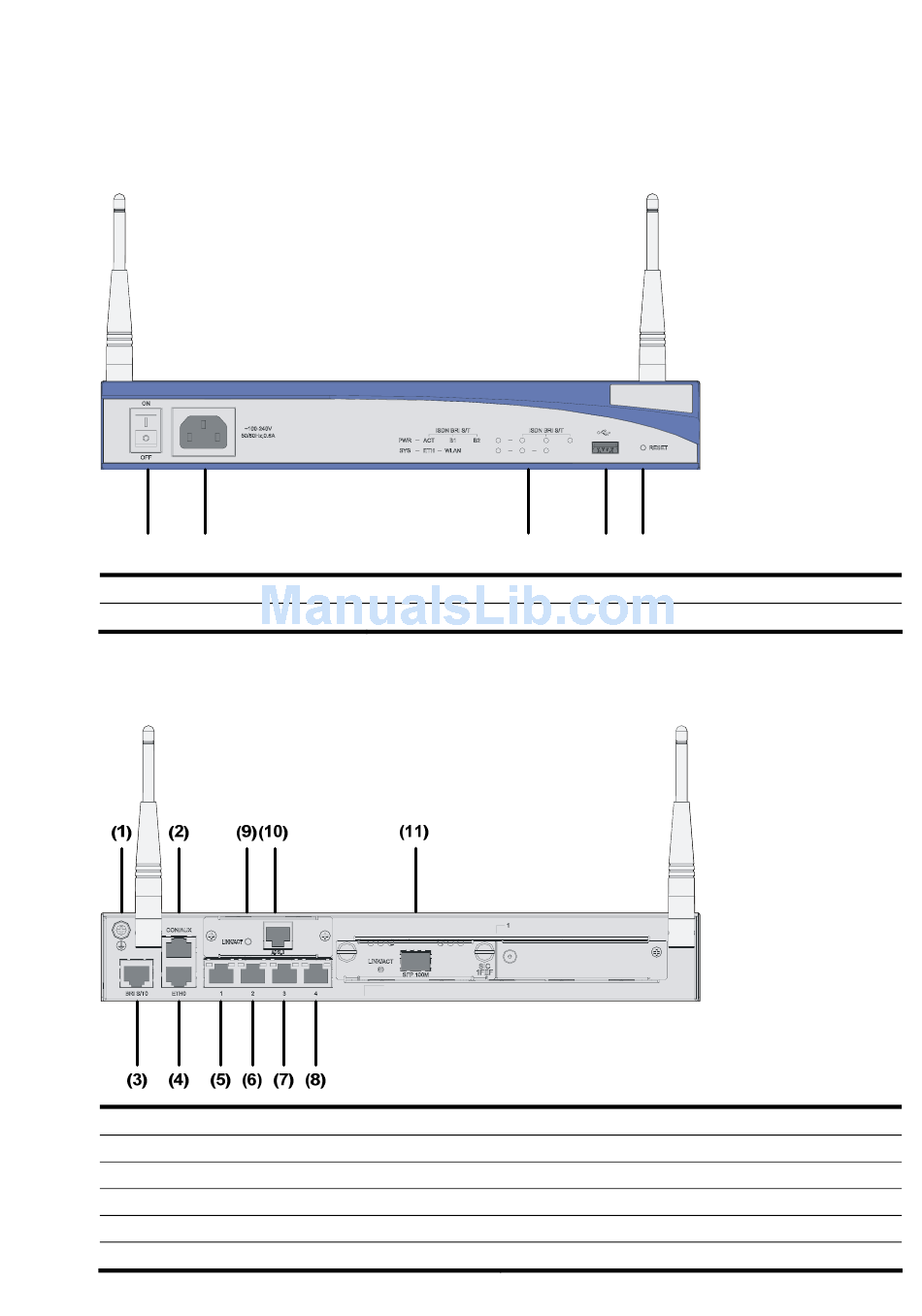

Figure 9 Front panel of the MSR 20-15 router
(1)
(1) Power switch
(4) USB interface
Rear panel
2.
Figure 10 Rear panel of the MSR 20-15 router
(1) Grounding terminal
(3) BRI S/T interface
(5) Layer 2 Ethernet interface 1
(7) Layer 2 Ethernet interface 3
(9) ADSL LED
(11) SIC/DSIC slot
(2) (3)
(2) Power socket
(5) RESET button
(2) Console/Auxiliary interface (CON/AUX)
(4) Layer 3 Ethernet interface 0 (ETH0)
(6) Layer 2 Ethernet interface 2
(8) Layer 2 Ethernet interface 4
(10) ADSL interface
10
(4) (5)
(3) LEDs
