Installing the Router on a Wall

In addition, you can install MSR 20- 1 X routers on a cement wall or wood wall.
Figure 13 and
wall-mounting.

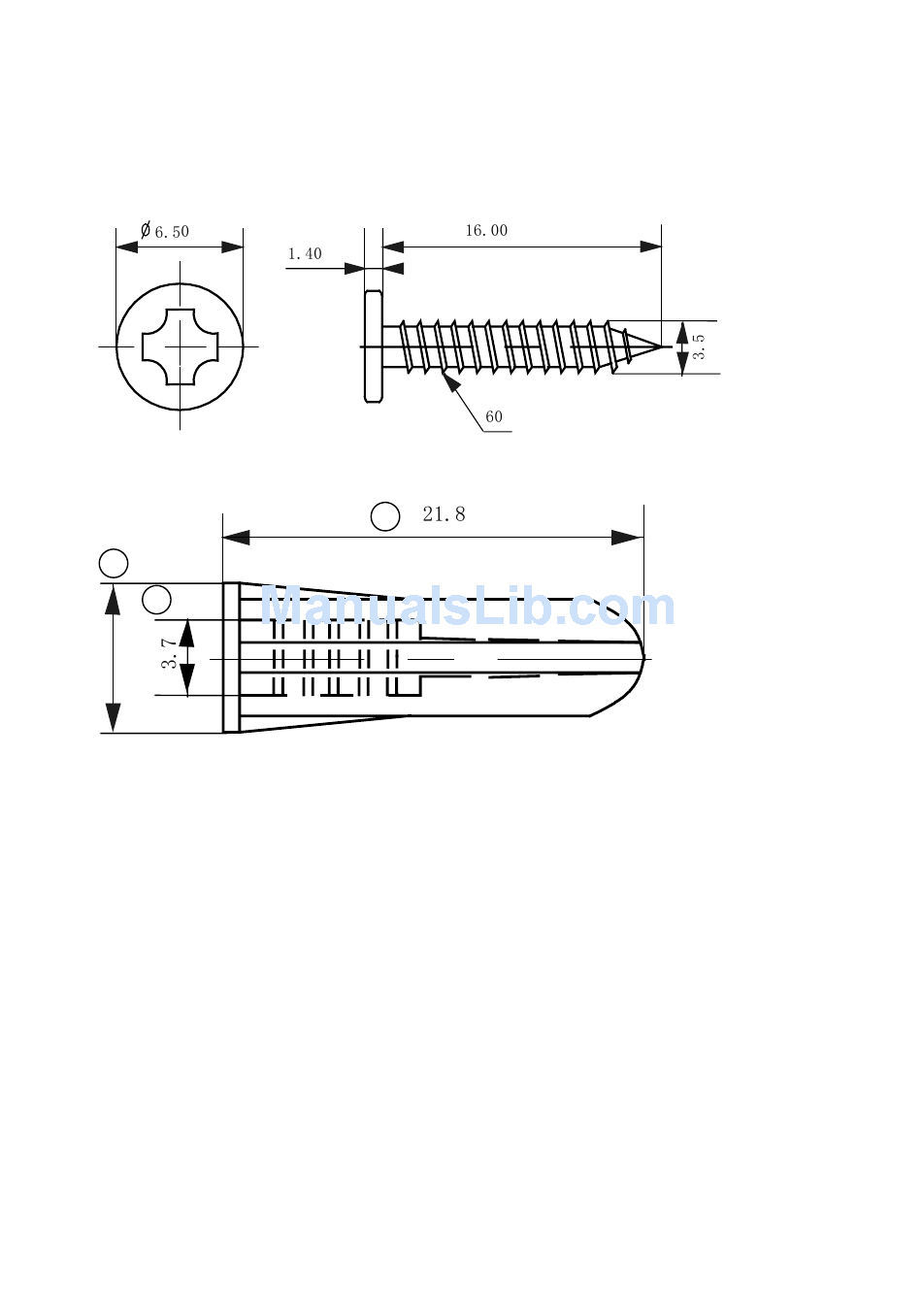

Figure 13 Screw sizes
Figure 14 Anchor sizes
B
C
The wall-mounting procedure is as follows (see
Drill two holes in the wall, with the two holes on the same horizontal line and a distance of 170 mm (6.69
Step1
in.) between them.
Insert an anchor into each hole.
Step2
Drive the screws into the anchors, keeping the screws at least 1.5 mm (0.06 in.) outside the wall.
Step3
Figure 14 show the recommended sizes (in mm) of the screw and anchor for
+
0.5
-
+
0.2
-
+0.5
-0.0
。
A
Figure 15):
19
