H3C MSR 20-1X Installation Manual page 37

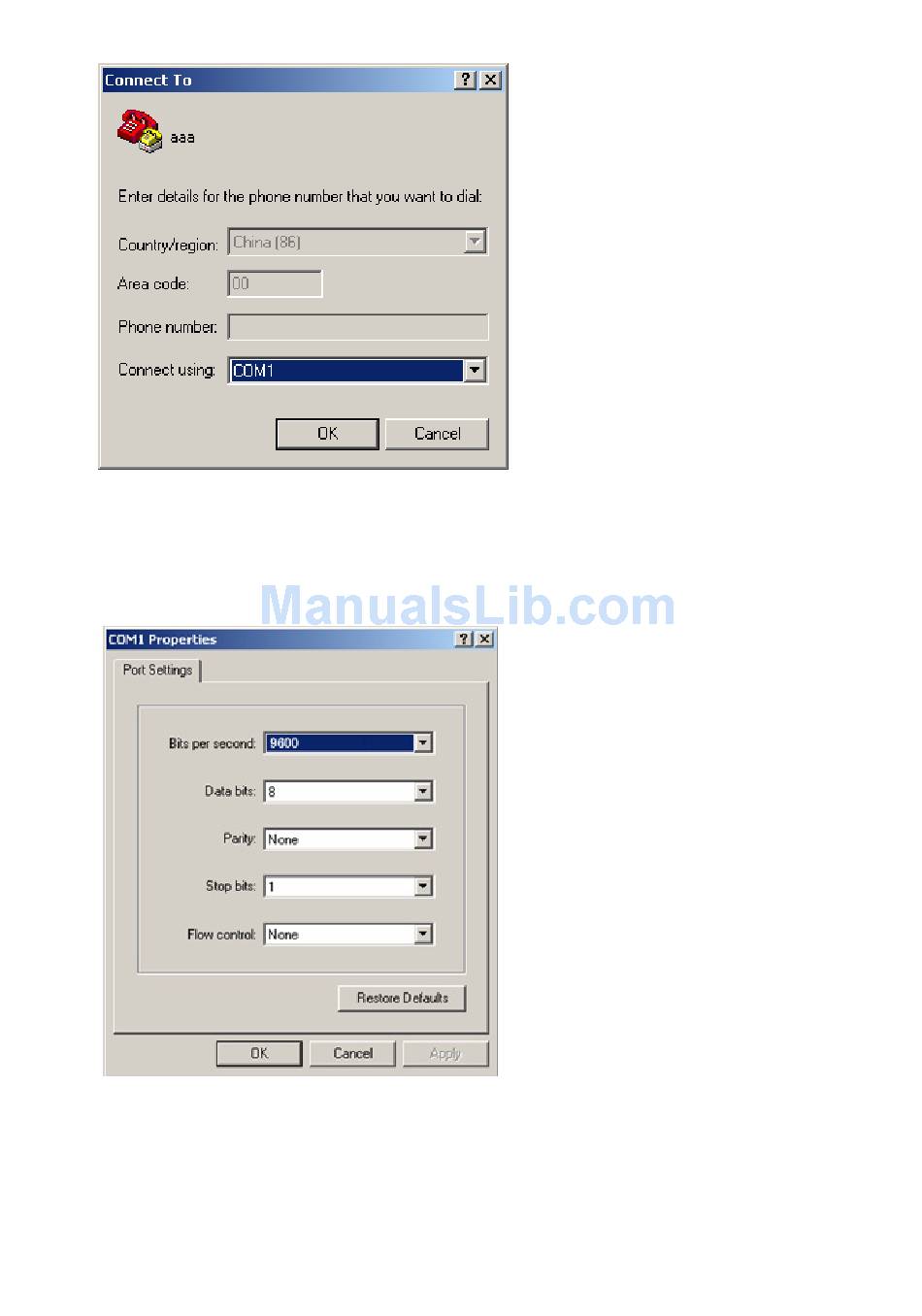

Figure 29 Set the connection port in the local configuration
Set terminal parameters. As shown in the following figure, in the COM1 Properties dialog box of the
Step2
serial interface, set bits per second to 9600, data bits to 8, parity to none, stop bits to 1, and flow control
to none. Then, click OK to return to the HyperTerminal window.
Figure 30 Set serial port parameters
Set HyperTerminal properties. Select File->Properties->Settings from the HyperTerminal window to enter
Step3
the properties setting window as shown in the following figure. Set the terminal emulation type to VT100
or auto detect, and click OK to return to the HyperTerminal window.
