Removing The Slide Rails; Installing The Security Lock; Verifying Installation - H3C MSR 20-1X Installation Manual

Removing the Slide Rails

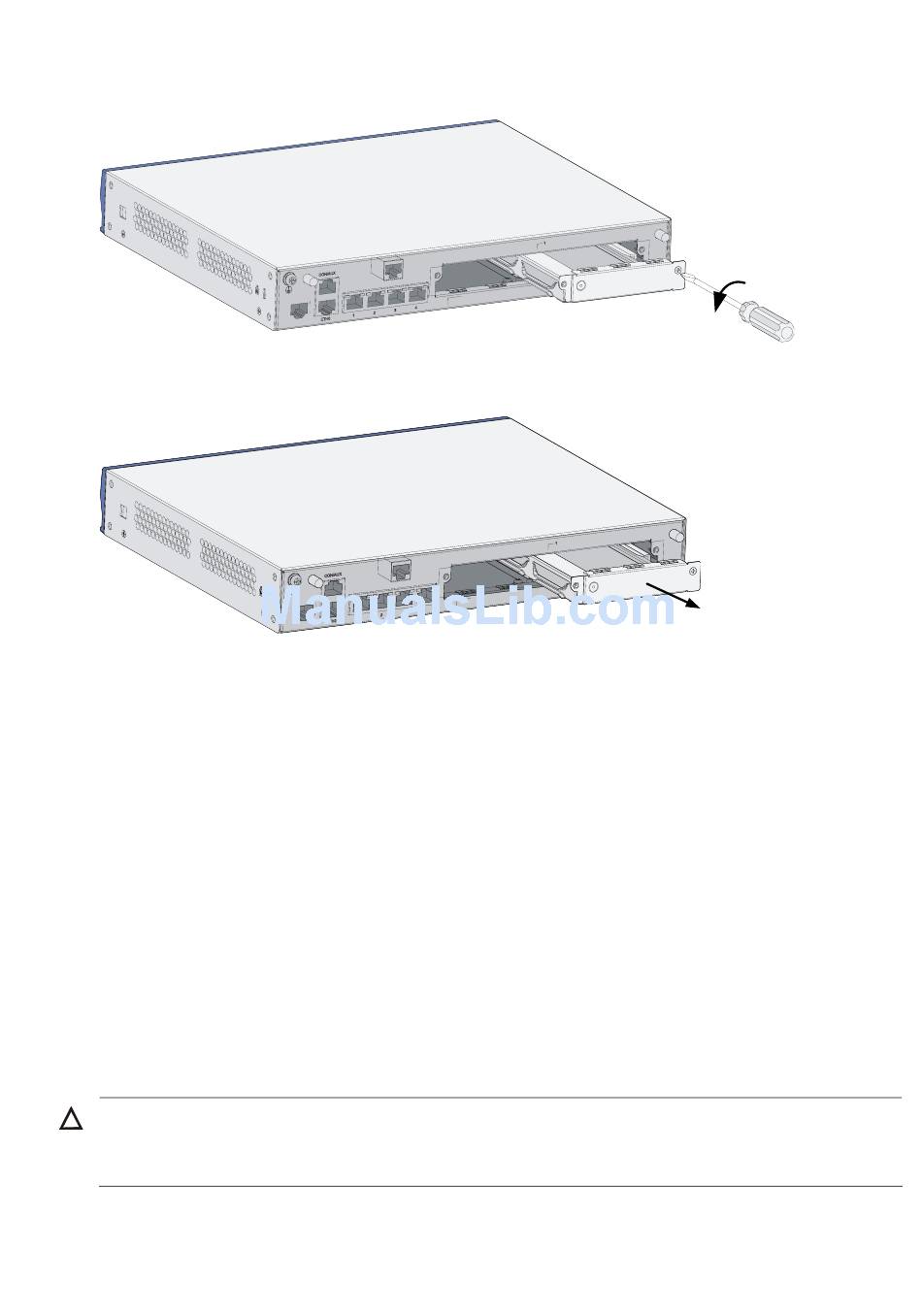

Figure 26 Loosen screws
Figure 27 Draw out the slide rails

Installing the Security Lock

There is a security slot on the side panel of the router and the security slot is near the front panel. Through
the security slot, you can use a security lock to lock the device to a bracket of the cabinet or an
irremovable object to prevent theft.

Verifying Installation

During router installation, you must verify installation each time you power on the router, making sure
that:
There is enough space around the router for heat dissipation and the workbench is stable enough.
•
The power outlet voltage is compliant with the voltage indicated on the label of the router.
•
The PGND cable of the router is correctly connected.
•
The router is correctly connected to the console terminal and other devices.
•
CAUTION:
The check after installation is very important. The stability, grounding of the router and power supply will
directly affect the operation of the router.
