Msr 20-11 Router - H3C MSR 20-1X Installation Manual

LED
ETH
Table 3 Rear panel LEDs of the MSR 20-10 router
LED
LINK
ACT

MSR 20-11 Router

Appearance
Front panel
1.

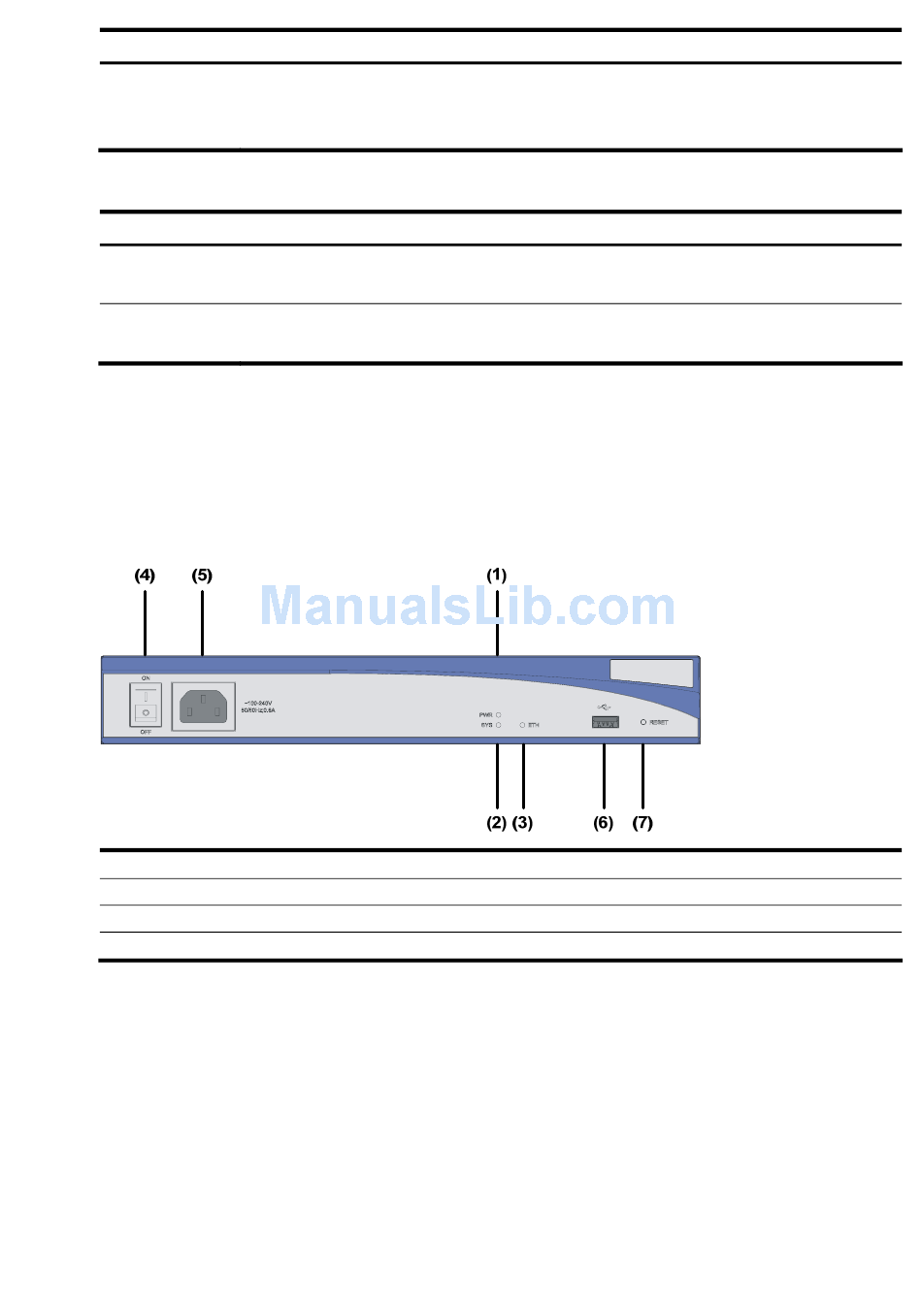

Figure 3 Front panel of the MSR 20-11 router
(1) Power LED (PWR)
(3) Ethernet interface LED (ETH)
(5) Power socket
(7) RESET button
Description
•
OFF: No link is present.
• ON: A link is present.
• Blinking: Data is being transmitted or received.
Description
• OFF: No link is present.
•
ON: A link is present.
• OFF: No data is being transmitted or received.
• Blinking: Data is being transmitted or received.
(2) System LED (SYS)
(4) Power switch
(6) USB interface
4
