H3C MSR900-E Installation, Quick Start

H3C MSR900-E Routers Installation Quick Start-6PW104
H3C MSR900-E路由器 快速安装指南-6PW104

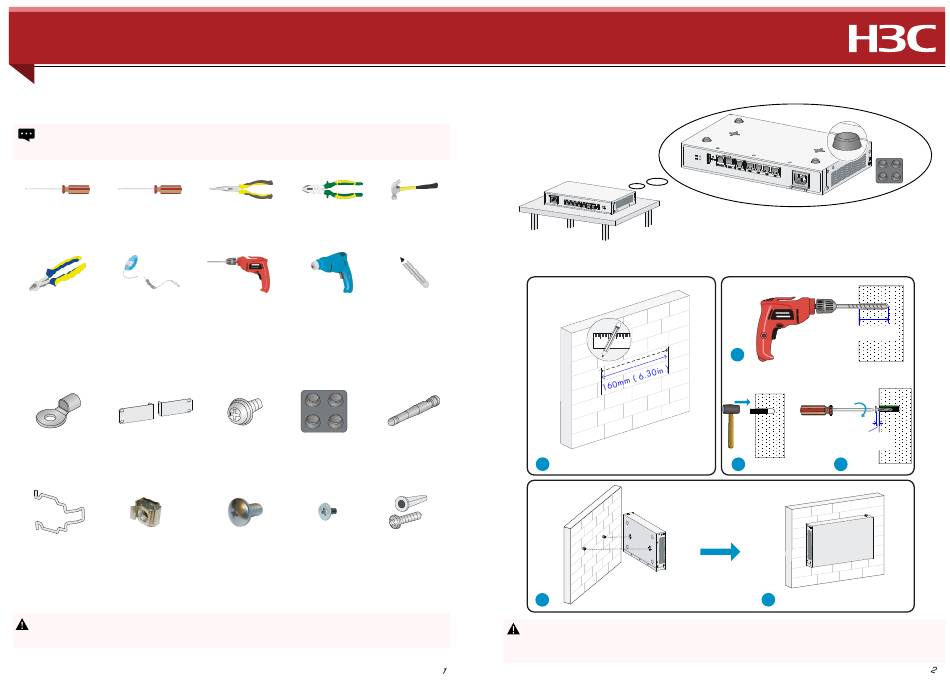

Tool List 工具参考
The installation tools are not provided with the device. Prepare them yourself.
设备不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Flathead screwdriver Phillips screwdriver
一字螺丝刀 十字螺丝刀
Diagonal pliers ESD-preventive wrist strap
斜口钳 防静电腕带
Introduction to Installation Accessories 安装附件介绍
Ring terminal mounting bracket
接地端子 挂耳
Bail latch
Cage nut
电源线卡勾
(user supplied)
浮动螺母（用户自备）
Wear an ESD wrist strap, and make sure the wrist strap has a Good skin contact and is well grounded.
!
操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带已经良好接地。
Needle-nose pliers Wire-stripping pliers
尖嘴钳 剥线钳
Drill Blow dryer
电钻 热吹风
Grounding screw Rubber pads
接地螺钉 脚垫
M6 screw M4 countersunk-
Screw and anchor kit
(user supplied) head screw ( User supplied )
M6 螺钉（用户自备） M4 沉头螺钉 螺钉和安装导管
Mounting the Router on a Workbench 安装路由器到工作台
Stick the rubber pads to the appropriate
positions on the router bottom
将脚垫粘贴到路由器底部
Claw hammer
羊角锤
Wall Mounting 壁挂安装
Marker
记号笔
WIFI antenna
WIFI天线 1
(用户自备)
5
When you mount the router on a wall, position the router so the Ethernet ports face downwards, and the
!
sides with ventilation openings are perpendicular to the ground.
安装时请将设备的以太网口朝下，设备带通风孔的两个侧面与地平面垂直。
≥ 22 mm(0.87in)
2
≥ 1.5 mm
(0.06in)
3 4
6
