Installing the Router on a Workbench

In case that no 19-inch standard cabinet is available, you can put the router on a clean workbench.
When installing the router on a workbench,
Make sure that the workbench is stable and well grounded.
•
Reserve a space of 10 cm (3.9 in.) around the router for heat dissipation.
•
Do not place heavy objects on the router.
•

Installing the Router on a Cabinet

Dimensions
With mounting brackets, you can also install MSR 20- 1 X routers in a 19-inch standard cabinet.
The dimensions of MSR 20- 1 X routers without feet and mounting bracket are 44.2 × 300 × 240 mm (1.74
× 1 1.81 × 9.45 in.).
Installation procedure
Check that the cabinet is stable and properly grounded. Attach two mounting brackets to the front or rear
Step1
panel of the router with screws.
Put the router in a tray. Depending on the actual situation, slide the router along the guide rails to an
Step2
appropriate position, keeping a proper distance between the router and guide rails.
Fix the router horizontally by fastening the mounting brackets to the cabinet with appropriate pan head
Step3
screws. The specifications of pan head screws should satisfy the installation requirements and rustproof
treatment has been made to their surfaces.

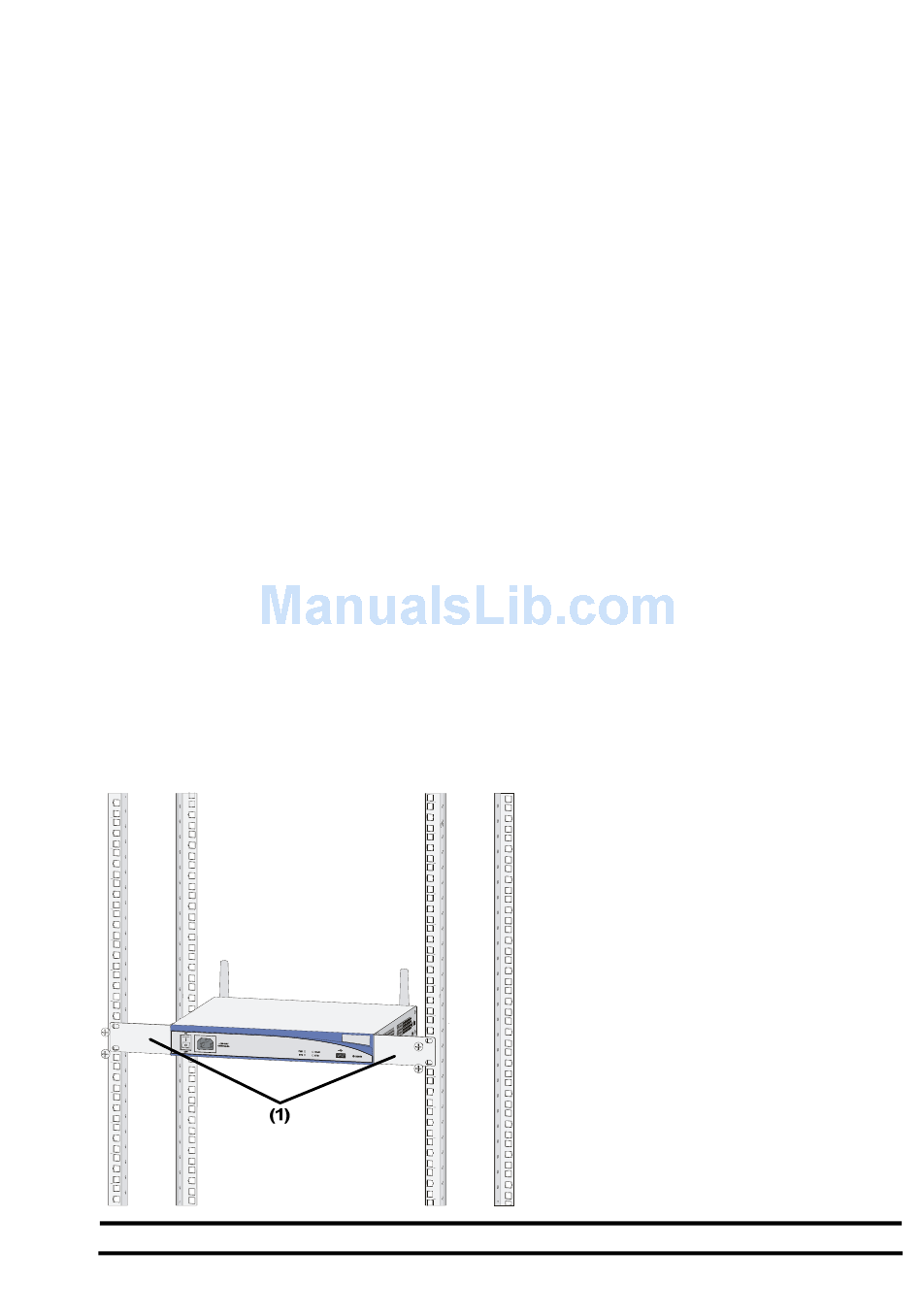

Figure 12 Install an MSR 20-1X router in a cabinet
(1) Mounting brackets
18
