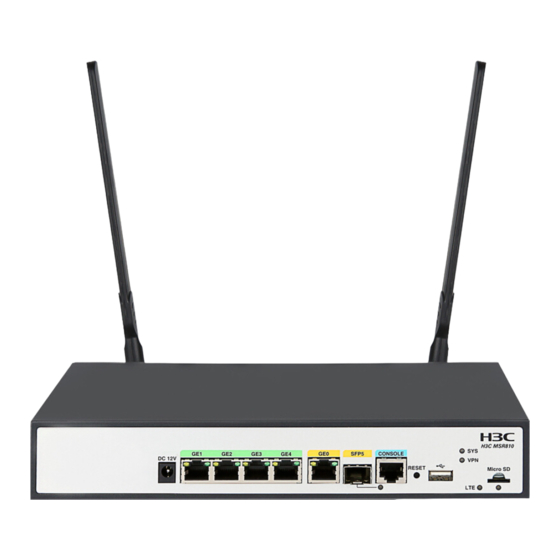

H3C MSR810 Series Installation Manual
Hide thumbs
Also See for MSR810 Series:
- Command reference manual (389 pages) ,
- Installation manual (65 pages) ,
- Safety manual (64 pages)
Related Manuals for H3C MSR810 Series
Summary of Contents for H3C MSR810 Series
- Page 1 H3C MSR810 Routers Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W116-20221212...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 Preface This document describes the installation procedure for H3C MSR810 routers, covering the procedures for preparing for installation, installing the router, and troubleshooting. This preface includes the following topics about the documentation: • Audience. • Conventions. • Documentation feedback. Audience This documentation is intended for: •...
- Page 4 Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software. An alert that calls attention to essential information.
- Page 5 Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
-
Page 6: Table Of Contents
Contents 1 Preparing for installation ·········································································· 1-1 Safety recommendations ································································································································ 1-1 Safety symbols ········································································································································ 1-2 General safety recommendations ··········································································································· 1-2 Electricity safety ······································································································································ 1-2 ESD prevention ······································································································································· 1-2 Examining the installation site ························································································································· 1-3 Temperature and humidity ······················································································································ 1-3 Cleanliness ·············································································································································· 1-3 Corrosive gas limit ···································································································································... - Page 7 Garbled display on the configuration terminal ································································································· 3-2 No response from the serial port ····················································································································· 3-2 3G/4G SIM card and 4G antenna failures ······································································································· 3-2 Restoring the factory settings ························································································································· 3-3 Scenario 1 ··············································································································································· 3-3 Scenario 2 ··············································································································································· 3-3 Scenario 3 ··············································································································································· 3-3 Reset button usage guidelines ················································································································...
-
Page 8: Preparing For Installation
Preparing for installation This document is applicable to the router models in Table1-1. Table1-1 H3C MSR810 router series models Model (marked on the front panel) Product code RT-MSR810-W RT-MSR810-W-DB H3C MSR810 RT-MSR810-LM RT-MSR810-W-LM RT-MSR810 RT-MSR810-10-PoE-Plus RT-MSR810-LM-HK RT-MSR810-LM-CNDE-SJK RT-MSR810-W-LM-HK RT-MSR810-LM-GL H3C MSR810 Series... -
Page 9: Safety Symbols
Safety symbols When reading this document, note the following symbols: WARNING means an alert that calls attention to important information that if not understood or followed can result in personal injury. CAUTION means an alert that calls attention to important information that if not understood or followed can result in data loss, data corruption, or damage to hardware or software. -
Page 10: Examining The Installation Site
Examining the installation site The router can only be used indoors. To ensure correct operation and a long lifespan for your router, the installation site must meet the requirements in this section. Temperature and humidity Maintain the temperature and humidity in the equipment room as described in Table1-2. •... -
Page 11: Corrosive Gas Limit
Table1-3 Router requirement for cleanliness Substance Particle diameter Concentration limit ≥ 0.5 µm ≤ 1.8 × 10 Dust particles particles/m Corrosive gas limit Corrosive gases can accelerate corrosion and aging of metal components. Make sure the corrosive gases do not exceed the concentration limits as shown in Table1-4. Table1-4 Corrosive gas concentration limits Average concentration (mg/m Maximum concentration (mg/m... -
Page 12: Lightning Protection
• Use electromagnetic shielding, for example, shielded interface cables, when necessary. Lightning protection To protect the router from lightning, follow these guidelines: • Make sure the router is reliably grounded by using a grounding cable. • Make sure the power receptacle is reliably grounded. •... -
Page 13: Installation Accessories
Model 4G antenna WLAN antenna • RT-MSR810-W-LM-HK • RT-MSR810-LM-GL • RT-MSR810-W-LM-GL • RT-MSR810-W • RT-MSR810-W-LM • RT-MSR810-W-LM-HK • RT-MSR810-W-LM-GL RT-MSR810-W-DB Installation accessories (RT-MSR810-SI/RT-MSR810- EI/RT-MSR810-LM-SI/RT-MSR810-LM-EA/RT-MSR810- LM-EI) Figure1-2 Installation accessories Grounding Cage nut (user Screw anchor and 4G antenna cable supplied) screw (user supplied) 4G antenna extension cable Rubber feet... -
Page 14: Installation Accessories (Rt-Msr810-Cnde-Sjk)
Installation accessories (RT-MSR810-LME/RT-MSR810- LMS/RT-MSR810-LMS-EA/RT-MSR810-LUS) Figure1-3 Installation accessories RT-MSR810-LME MSR810-LME [LMS] Rubber feet Ring terminal [LMS] [LUS] data [LUS] power adapter cable Stick 4G antenna (shipped with the RT- MSR810-LMS-EA/RT- MSR810-LME and 4G-LTE magnetic mount 4G antenna extension optional for other models) antenna (optional) cable (optional) The RT-MSR810-LMS and RT-MSR810-LUS routers are not shipped with 4G antennas. -
Page 15: Pre-Installation Checklist
Figure1-5 Installation tools and equipment Pre-installation checklist Item Requirements Result • There is a minimum clearance of 100 mm (3.94 in) around the air inlet and outlet vents. Ventilation • An adequate ventilation system is available at the installation site. •... - Page 16 Item Requirements Result RT-MSR810-LM-HK RT-MSR810-W-LM-HK RT-MSR810-LME RT-MSR810-LMS RT-MSR810-LMS-EA RT-MSR810-LUS RT-MSR810-LM-GL RT-MSR810-W-LM-GL RT-MSR810-CNDE-SJK • 5% to 95% (noncondensing): RT-MSR810-10-PoE- Plus Dust concentration ≤ 1.8 × 10 Cleanliness particles/m • The router and floor are reliably grounded. •...
-
Page 17: Installing The Router
• Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence. -
Page 18: Installing The Router
Figure2-1 Installation flowchart Start Determine the installation position Mount the router on a Mount the router on a Mount the router in a rack workbench wall Connect the grounding cable Install antennas Connect interface cables Connect the router to a configuration terminal Connect the power adapter or power cord... -
Page 19: Mounting The Router On A Wall
Figure2-2 Mounting the router on a workbench Mounting the router on a wall Only the following routers support wall mounting: • RT-MSR810 • RT-MSR810-LM • RT-MSR810-LM-CNDE-SJK • RT-MSR810-W-DB • RT-MSR810-W • RT-MSR810-W-LM • RT-MSR810-LM-HK • RT-MSR810-W-LM-HK • RT-MSR810-LM-GL • RT-MSR810-W-LM-GL •... - Page 20 Table2-1 Wall mounting hole spacing Spacing Device models RT-MSR810, RT-MSR810-LM, RT-MSR810-LM-CNDE-SJK, RT- MSR810-W-DB, RT-MSR810-W, RT-MSR810-W-LM, RT-MSR810-LM- 160 mm (6.30 in) HK, RT-MSR810-W-LM-HK, RT-MSR810-LM-GL, RT-MSR810-W-LM- GL, RT-MSR810-CNDE-SJK RT-MSR810-SI, RT-MSR810-EI, RT-MSR810-LM-SI, RT-MSR810-LM- 152 mm (5.98 in) EA, RT-MSR810-LM-EI Drill holes with a minimum depth of 22 mm (0.87 in) in the marked locations. Hammer an anchor into each hole until the anchor is flush with the wall.
-
Page 21: Installing The Router In A Rack
Installing the router in a rack CAUTION: The mounting brackets can support only the weight of the router. Do not place objects on the router. Mounting brackets and screws are provided with the RT-MSR810-10-PoE-Plus and are optional for the other models. The RT-MSR810-LME, RT-MSR810-LMS, RT-MSR810-LMS-EA, and RT-MSR810-LUS routers do not support rack mounting. - Page 22 Figure2-5 Installing cage nuts Attach mounting brackets to both sides of the router, as shown in Figure2-6. Figure2-6 Attaching mounting brackets to the router Use M6 screws to attach the mounting brackets on the router to the front rack posts, as shown in Figure2-7.
-
Page 23: Grounding The Router
Figure2-7 Securing the router to the rack Grounding the router CAUTION: • Correctly connecting the grounding cable is crucial to lightning protection and EMI protection. When you install and use the router, first ground the router reliably. • Ensure a minimum resistance of 5 ohms between the router and the ground. A grounding cable is provided with the RT-MSR810-SI, RT-MSR810-EI, RT-MSR810-LM-SI, RT- MSR810-LM-EA, or RT-MSR810-LM-EI router. -
Page 24: Grounding The Router With A Grounding Strip
Figure2-8 Attaching the grounding cable to the ring terminal Grounding cable Ring terminal Insulation covering 5 mm (0.20 in) Grounding the router with a grounding strip Remove the grounding screw from the grounding hole in the chassis. Use the grounding screw to attach the ring terminal of the grounding cable to the grounding hole. -
Page 25: Grounding The Router With A Grounding Conductor Buried In The Earth Ground
Grounding the router with a grounding conductor buried in the earth ground If the installation site does not have any grounding strips, but earth ground is available, hammer a 0.5 m (1.64 ft) or longer angle iron or steel tube into the earth ground to serve as a grounding conductor. -
Page 26: Installing A Micro Sd Card
For more information about the sim switch-to command, see Layer 2—WAN Access Command Reference in H3C MSR810[830][[2600][3600] Comware 7 Command References. The SIM card slots on the RT-MSR810-LME and RT-MSR810-LMS routers support 2G/3G/4G network mode provided by all carriers. -
Page 27: Installing An Sd Card
• RT-MSR810-W • RT-MSR810-W-LM • RT-MSR810-LM-HK • RT-MSR810-W-LM-HK • RT-MSR810-LM-GL • RT-MSR810-W-LM-GL • RT-MSR810-CNDE-SJK To install a Micro SD card: Use a PH2 screwdriver to remove the M3 × 4 mm (0.16 in) countersunk screw on the Micro SD card slot cover and then take off the cover. Insert the Micro SD card into the Micro SD card slot along the guide rails. -
Page 28: Installing A 4G Antenna
Figure2-13 Installing an SD card Installing a 4G antenna Only the following routers support 4G antennas: • RT-MSR810-LM • RT-MSR810-LM-CNDE-SJK • RT-MSR810-W-LM • RT-MSR810-LM-HK • RT-MSR810-W-LM-HK • RT-MSR810-LM-GL • RT-MSR810-W-LM-GL • RT-MSR810-LME • RT-MSR810-LMS • RT-MSR810-LMS-EA • RT-MSR810-LUS • RT-MSR810-LM-SI •... -
Page 29: Installing A 4G Antenna Extension Cable
Figure2-14 Installing 4G antennas Installing a 4G antenna extension cable Only the following routers support 4G antenna extension cables: • RT-MSR810-LM • RT-MSR810-LM-CNDE-SJK • RT-MSR810-W-LM • RT-MSR810-LM-HK • RT-MSR810-W-LM-HK • RT-MSR810-LM-GL • RT-MSR810-W-LM-GL • RT-MSR810-LME • RT-MSR810-LMS • RT-MSR810-LMS-EA • RT-MSR810-LUS •... -
Page 30: Installing A Wlan Antenna
Figure2-15 Connecting a 4G antenna extension cable Installing a WLAN antenna Only the following routers support WLAN antennas: • RT-MSR810-W • RT-MSR810-W-LM • RT-MSR810-W-DB • RT-MSR810-W-LM-HK • RT-MSR810-W-LM-GL You can install two WLAN antennas for the RT-MSR810-W, RT-MSR810-W-LM, RT-MSR810-W- LM-HK, and RT-MSR810-W-LM-GL routers and four WLAN antennas for the RT-MSR810-W-DB router. -
Page 31: Installing A Gps Antenna
Figure2-16 Installing WLAN antennas Installing a GPS antenna Only the routers support a GPS antenna: • RT-MSR810-LM • RT-MSR810-LM-CNDE-SJK • RT-MSR810-W-LM • RT-MSR810-LM-HK • RT-MSR810-W-LM-HK • RT-MSR810-LM-GL • RT-MSR810-W-LM-GL To install a GPS antenna: Attach the male connector of the GPS antenna to the GPS antenna port on the router. Do not use excessive force to avoid antenna damage. -
Page 32: Supplying Power To A Terminal Through Poe
Connect one end of the cable to an Ethernet port on the router. Connect the other end of the cable to the Ethernet port on a terminal. Examine the port LEDs on the router. For more information about the LEDs, see H3C MSR810 Routers Hardware Information and Specifications. -
Page 33: Connecting Ethernet Interface Cables
Connect one end of the cable to an Ethernet port on the router. Connect the other end of the cable to the Ethernet port on a host. Examine the port LEDs on the router. For more information about the LEDs, see H3C MSR810 Routers Hardware Information and Specifications. -
Page 34: Connecting The Console Cable And Setting Terminal Parameters
Connecting the console cable and setting terminal parameters Connecting the console cable CAUTION: The serial ports on PCs do not support hot swapping. To connect a PC to an operating router, first connect the PC end. To disconnect a PC from an operating router, first disconnect the router end. To connect the console cable: Select a configuration terminal, which can be an ASCII terminal with an RS-232 serial port or a PC. -
Page 35: Connecting The Power Adapter
• RT-MSR810-LM • RT-MSR810-LM-CNDE-SJK • RT-MSR810-W-DB • RT-MSR810-W • RT-MSR810-W-LM • RT-MSR810-LM-HK • RT-MSR810-W-LM-HK • RT-MSR810-LM-GL • RT-MSR810-W-LM-GL • RT-MSR810-LME • RT-MSR810-LMS • RT-MSR810-LMS-EA • RT-MSR810-LUS • RT-MSR810-CNDE-SJK • RT-MSR810-SI • RT-MSR810-EI • RT-MSR810-LM-SI • RT-MSR810-LM-EA • RT-MSR810-LM-EI The RT-MSR810-10-PoE-Plus router uses a power cord for power input. Connecting the power adapter CAUTION: To avoid power adapter damage, use the power adapter provided with the router. -
Page 36: Connecting The Power Cord
Figure2-21 Connecting the power adapter (RT-MSR810/MSR810-LM/RT-MSR810-LM- CNDE-SJK/RT-MSR810-W-DB/RT-MSR810-W/RT-MSR810-W-LM/RT-MSR810-LM-HK/RT- MSR810-W-LM-HK/RT-MSR810-LM-GL/RT-MSR810-W-LM-GL/RT-MSR810-CNDE- SJK/RT-MSR810-SI/RT-MSR810-EI/RT-MSR810-LM-SI/RT-MSR810-LM-EA/RT-MSR810- LM-EI) Figure2-22 Connecting the power adapter (RT-MSR810-LME/RT-MSR810-LMS/RT- MSR810-LMS-EA/RT-MSR810-LUS) Connecting the power cord Make sure the router is reliably grounded. Connect the power cord to the AC receptacle. Insert the AC output plug of the power cord to the power adapter receptacle on the router. 2-20... -
Page 37: Verifying The Installation
During the booting process, verify the following items: The LEDs on the front panel indicate normal operation. For more information about the LEDs, see H3C MSR810 Routers Hardware Information and Specifications. The configuration terminal displays information correctly. The router first initializes its memory at startup and then runs BootWare. - Page 38 H3C MSR810 BootWare, Version 1.03 **************************************************************************** Copyright (c) 2004-2018 New H3C Technologies Co., Ltd. Compiled Date : Mar 20 2018 CPU ID : 0xa CPU L1 Cache : 32KB CPU L2 Cache : 256KB Memory Type : DDR3 SDRAM Memory Size...
- Page 39 Press ENTER to get started. Press Enter. The router is ready to configure when you see the following prompt: <Sysname> Configure basic settings for the router. For information about configuring basic setting for the router, see the configuration guides and command references for the router.
-
Page 40: Troubleshooting
• Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence. - Page 41 Parity—None. Stop bits—1. Flow control—None. If the issue persists, contact H3C Support. No response from the serial port Symptom The serial port on the router does not respond Solution To resolve the issue: Verify that the serial cable is in good condition and the serial port settings are correct.
- Page 42 Restoring the factory settings Scenario 1 Symptom When you replace the router, the router password is lost. As a result, you cannot log in to the router and do not know the router configuration. Solution Because the router is replaced, you do not need to save the configuration of the router. In this case, you can press the RESET button for more than 4 seconds to reboot the router and restore the factory settings.
