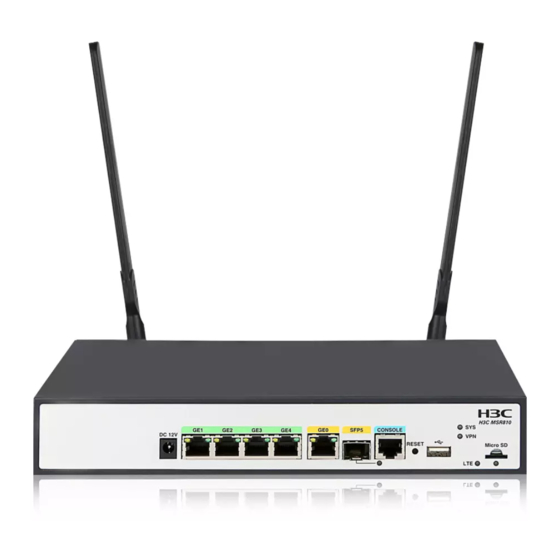

H3C MSR 810 Configuration Manual
  1. Manuals
  2. Brands
  3. H3C Manuals
  4. Wireless Router
  5. MSR810
  6. Configuration manual

H3C MSR 810 Configuration Manual

Comware 7 terminal access
Hide thumbs Also See for MSR 810:
Table of Contents

Advertisement

Quick Links

Download this manual
H3C MSR 810 & 2600 & 3600 Routers
Comware 7 Terminal Access Configuration Guide
New H3C Technologies Co., Ltd.
http://www.h3c.com
Software version: MSR-CMW710-R0809
Document version: 6W400-20200823

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSR 810 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for H3C MSR 810

Summary of Contents for H3C MSR 810

  • Page 1 H3C MSR 810 & 2600 & 3600 Routers Comware 7 Terminal Access Configuration Guide New H3C Technologies Co., Ltd. http://www.h3c.com Software version: MSR-CMW710-R0809 Document version: 6W400-20200823...
  • Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
  • Page 3 Preface This configuration guide describes the terminal access related settings. This preface includes the following topics about the documentation: • Audience. • Conventions. • Documentation feedback. Audience This documentation is intended for: • Network planners. • Field technical support and servicing engineers. •...
  • Page 4 Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software. An alert that calls attention to essential information.
  • Page 5 Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.

  • Page 6: Table Of Contents

    Contents Configuring RTC terminal access ·································································· 1 About RTC terminal access ······························································································································· 1 Network devices in RTC terminal access··································································································· 1 Typical applications of RTC terminal access ····························································································· 1 RTC terminal access feature list ················································································································ 3 RTC terminal access features ···················································································································· 4 RTC terminal access specifications ···········································································································...

  • Page 7: Configuring Rtc Terminal Access

    Configuring RTC terminal access About RTC terminal access Terminal access enables a terminal to use a serial interface to access another terminal through routers. Remote terminal connection (RTC) terminal access is a typical application of terminal access. RTC terminal access interconnects a local terminal and a remote terminal through routers for data monitoring and data sharing.
  • Page 8 TCP/UDP one-to-one transparent transmission between one RTC client and one RTC  server. TCP many-to-one transparent transmission between multiple RTC clients and one relay  server. UDP one-to-many transparent transmission between one RTC server and multiple RTC  clients. TCP or UDP one-to-one transparent transmission Figure 1 shows a typical network diagram for the one-to-one transparent transmission.

  • Page 9: Rtc Terminal Access Feature List

    UDP one-to-many transparent transmission UDP one-to-many transparent transmission is mainly applied to signal synchronization for unidirectional broadcast communication links. Figure 3 shows a typical network diagram for this type of transmission. The UDP one-to-many transparent transmission procedure takes the following steps: The signal source terminal sends data.

  • Page 10: Rtc Terminal Access Features

    Feature Supported by Description TCP_11_Client, TCP_11_Server, Terminal access VPN instances UDP_11_Client, UDP_11_Server TCP_11_Client, TCP_11_Server, TCP NODELAY TCP_N1_Server Access types supporting Link backup synchronous terminals Compatibility mode support For more information, see Information debugging Terminal Access Debugging Command Manual. RTC terminal access features Source address binding This function specifies the source IP address of the TCP connection initiated from the router.
  • Page 11 Terminal reset When a terminal fails to communicate with the receiver, you can re-establish communication by pressing the terminal reset hotkey on the terminal. The initiator will disconnect and then re-establish the TCP connection with the receiver. TCP parameter configuration TCP buffers store the data exchanged between the initiator and receiver.

  • Page 12: Rtc Terminal Access Specifications

    Devices running Comware 3 or Comware 5 can operate only in characteristic mode or compatibility mode. The mode is automatically set and is not user configurable. Devices running Comware 7 can operate in either characteristic or compatibility mode, depending on your configuration.

  • Page 13: Terminal Templates

    Terminal templates Most of the important settings of the RTC terminal system are configured in terminal templates on a router. The templates are applied to corresponding interfaces (such as an asynchronous serial interface). The router then creates TTYs and VTYs according to the template configurations. Only one template can be applied to an interface.

  • Page 14: Restrictions And Guidelines: Rtc Terminal Access Configuration

    RTC terminal access Hardware compatibility MSR2630-XS MSR3600-28-XS MSR3610-XS MSR3620-XS MSR3610-I-XS MSR3610-IE-XS RTC terminal access Hardware compatibility MSR810-LM-GL MSR810-W-LM-GL MSR830-6EI-GL MSR830-10EI-GL MSR830-6HI-GL MSR830-10HI-GL MSR2600-6-X1-GL MSR3600-28-SI-GL Restrictions and guidelines: RTC terminal access configuration If you modify a template that has been applied to an interface, use the update changed-config command to update the configuration.

  • Page 15: Configuring The Asynchronous Tcp Rtc One-To-One Initiator (Tcp_11_Client)

    Configuring the asynchronous TCP RTC one-to-one initiator (TCP_11_Client) About the asynchronous TCP RTC one-to-one initiator The initiator is a TCP_11_Client connected to the monitoring device. The receiver is a TCP_11_Server connected to the monitored device. The TCP_11_Client can initiate a connection request to the TCP_11_Server at any time to obtain the data of the monitored device.
  • Page 16 auto-close time By default, the automatic link teardown time is 0 seconds, which indicates that no automatic link teardown will be performed. Configure the automatic link establishment time.  auto-link time By default, the automatic link establishment time is 0 seconds, which indicates that no automatic link establishment will be performed.

  • Page 17: Configuring A Tty User Line

    The send buffer size is 2048 bytes.  Delay is enabled.  The keepalive interval is 50 seconds.  The keepalive number is 3.  This command takes effect only after a TCP connection is re-established. (Optional.) Configure the password for VTY authentication. vty vty-number password { simple | cipher } string By default, no password for VTY authentication is configured.

  • Page 18: Configuring The Asynchronous Tcp Rtc One-To-One Receiver (Tcp_11_Server)

    For more information about the command, see Interface Command async-mode Reference. Specify the protocol type as STLP for a synchronous serial interface.  link-protocol stlp By default, a synchronous serial interface operates in the PPP protocol mode. Apply the template to the interface. rta terminal template-name terminal-number By default, no template is applied to the interface.
  • Page 19 vty vty-number rtc-server remote p-address terminal-number After this configuration, the template cannot be configured with any RTC client VTYs. argument of the command configured terminal-number vty rtc-server remote on the RTC server must be the same as the argument of the terminal-number command configured on the RTC client.

  • Page 20: Configuring A Tty User Line

    By default, no password for VTY authentication is configured. To implement terminal access authentication, you must configure terminal access authentication on both the RTC server and the RTC client, and the authentication passwords must be identical for the authentication to succeed. (Optional.) Update the configuration.

  • Page 21: Configuring The Tcp Rtc Many-To-One Relay Server (Tcp_N1_Server)

    Apply the template to the interface. rta terminal template-name terminal-number Configuring the TCP RTC many-to-one relay server (TCP_N1_Server) About this task The initiators are TCP_11_Clients, which are connected to monitoring devices. The receiver is a relay server (TCP_N1_Server) which is not connected to any monitored device. Procedure Enter system view.

  • Page 22: Configuring The Synchronous Udp Rtc One-To-One Initiator (Udp_11_Client)

    Configuring the synchronous UDP RTC one-to-one initiator (UDP_11_Client) About the synchronous UDP RTC one-to-one initiator The initiator is a UDP_11_Client, which is connected to the monitoring device through a synchronous serial interface. The receiver is a UDP_11_Server, which is connected to the monitored device through a synchronous serial interface.

  • Page 23: Configuring The Synchronous Udp Rtc One-To-One Receiver (Udp_11_Server)

    Configuring the synchronous UDP RTC one-to-one receiver (UDP_11_Server) Enabling terminal access on the router Enter system view. system-view Enable terminal access. rta server enable Configuring a terminal template Enter system view. system-view Create a terminal template and enter terminal template view. rta template template-name Create a UDP RTC server VTY.

  • Page 24: Configuring The Synchronous Udp Rtc One-To-Many Receiver (Udp_1N_Server)

    Configuring the synchronous UDP RTC one-to-many receiver (UDP_1N_Server) About the synchronous UDP RTC one-to-many receiver The initiator is a UDP_11_Client, which is connected to the monitoring device through a synchronous serial interface. The receiver is a UDP_1N_Server, which is connected to the monitored device through a synchronous serial interface.

  • Page 25: Display And Maintenance Commands For Rtc Terminal Access

    Display and maintenance commands for RTC terminal access Execute commands in any view and commands in user view. displays reset Task Command display rta { all | statistics | terminal-number { vty-number | Display terminal access information. brief | detail | statistics } } Display states of all RTC client connections display rta relay status accepted by a relay server.

  • Page 26: Example: Configuring Synchronous Tcp Rtc One-To-One

    # Enable terminal access. <Sysname> system-view [Sysname] rta server enable # Set the listening port of the server. [Sysname] rta rtc-server listen-port 9000 # Create a terminal template and enter terminal template view. [Sysname] rta template rtcserver # Configure the VTY. [Sysname-rta-template-rtcserver] vty 0 rtc-server remote 10.111.0.12 1 [Sysname-rta-template-rtcserver] vty 0 password simple 123 [Sysname-rta-template-rtcserver] quit...
  • Page 27 Figure 5 Network diagram GE1/0/1 GE1/0/1 10.111.0.12 10.111.95.10 IP network RTC Client RTC Server S2/2/0 S2/2/0 Central terminal Remote terminal Procedure Configure the RTC server: # Enable terminal access. <Sysname> system-view [Sysname] rta server enable # Set the listening port of the server. [Sysname] rta rtc-server listen-port 9000 # Create a terminal template and enter terminal template view.

  • Page 28: Example: Configuring Asynchronous Rtc Vpns

    # Check that the remote terminal can receive the instruction, and check that the central terminal can receive the requested data from the remote terminal. Example: Configuring asynchronous RTC VPNs Network configuration As shown in Figure 6, central terminal CE A in the monitoring center and remote terminal CE B are in MPLS L3VPN VPNA.

  • Page 29: Example: Configuring Asynchronous Tcp Rtc Many-To-One Relay

    [PEB] interface async 2/2/0 [PEB-Async2/2/0] async mode flow [PEB-Async2/2/0] rta terminal rtcs 2 [PEB-Async2/2/0] quit Configure the RTC client: # Configure MPLS L3VPN. For more information, see MPLS Configuration Guide. # Bind Loopback 1 to VPNA. [PEA] interface loopback 1 [PEA-LoopBack1] ip address 169.254.2.1 32 [PEA-LoopBack1] ip binding vpn-instance vpna [PEA-LoopBack1] quit...
  • Page 30 Figure 7 Network diagram GE1/0/1 GE1/0/1 GE1/0/2 GE1/0/1 1.1.2.1 Router C Router A 1.1.3.1 1.1.4.1 1.1.1.1 IP network IP network Async2/2/0 Async2/2/0 Router B Terminal A Termina B Procedure Configure TCP_11_Client Router A: # Enable terminal access. <Sysname> system-view [Sysname] rta server enable # Create a terminal template and enter terminal template view.

  • Page 31: Example: Configuring Synchronous Tcp Rtc Many-To-One Relay

    Verifying the configuration # Check that Terminal A and Terminal B can receive data from each other. Example: Configuring synchronous TCP RTC many-to-one relay Network configuration As shown in Figure 8, Router A and Router C act as TCP_11_Clients and Router B acts as the relay server TCP_N1_Server.

  • Page 32: Example: Configuring Udp Rtc One-To-One Backup Link

    # Configure the VTY. [Sysname-rta-template-rtcclient] vty 0 rtc-client remote 1.1.4.1 2000 [Sysname-rta-template-rtcclient] quit # Apply the template to the interface. [Sysname] interface serial 2/2/0 [Sysname-Serial2/2/0] link-protocol stlp [Sysname-Serial2/2/0] rta terminal rtcclient 1 [Sysname-Serial2/2/0] quit Configure the relay server Router B: # Enable terminal access relay.
  • Page 33 # Enable terminal access. <Sysname> system-view [Sysname] rta server enable # Create a terminal template and enter terminal template view. [Sysname] rta template rtcclient # Configure the VTY. [Sysname-rta-template-rtcclient] vty 0 rtc-client remote 10.111.21.13 remote-port 3000 udp local-port 3001 source 10.111.0.12 [Sysname-rta-template-rtcserver] quit # Apply the template to the primary interface.

  • Page 34: Example: Configuring Udp Rtc One-To-Many

    Example: Configuring UDP RTC one-to-many Network configuration As shown in Figure 10, Router A and Router C act as UDP_11_Clients, and Router B acts as a UDP_1N_Server. Configure Router A, Router B, and Router C to enable both Terminal A and Terminal C to receive data from Terminal B: •...

  • Page 35: Troubleshooting Rtc Terminal Access

    [Sysname-rta-template-rtcserver] quit # Apply the template to the interface. [Sysname] interface Serial 2/1/0 [Sysname-Serial2/1/0] link-protocol stlp [Sysname-Serial2/1/0] rta terminal rtcclient 1 [Sysname-Serial2/1/0] quit Configure the UDP_1N_Server (Router B): # Enable terminal access. <Sysname> system-view [Sysname] rta server enable # Create a terminal template and enter terminal template view. [Sysname] rta template rtcserver # Configure the VTY.

  • Page 36: Terminal State Is Down After Terminal Access Is Enabled

    Terminal state is down after terminal access is enabled Symptom Terminal access is enabled by using the command. However, the rta server enable display command displays that the state of a powered terminal is Down Analysis The asynchronous serial interface is configured with the command.

This manual is also suitable for:

Msr 2600Msr 3600
