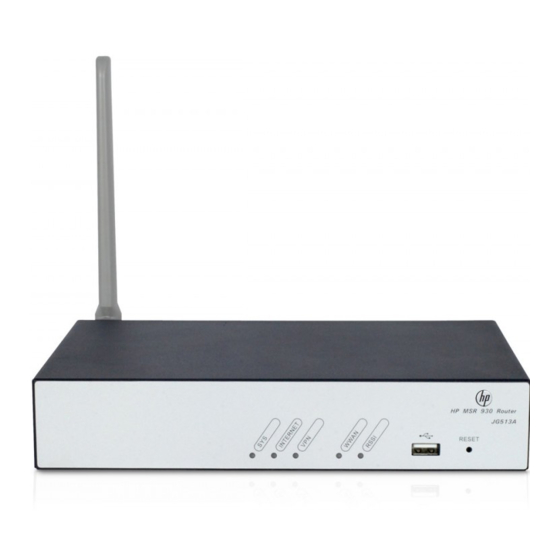

H3C MSR 930 Installation, Quick Start

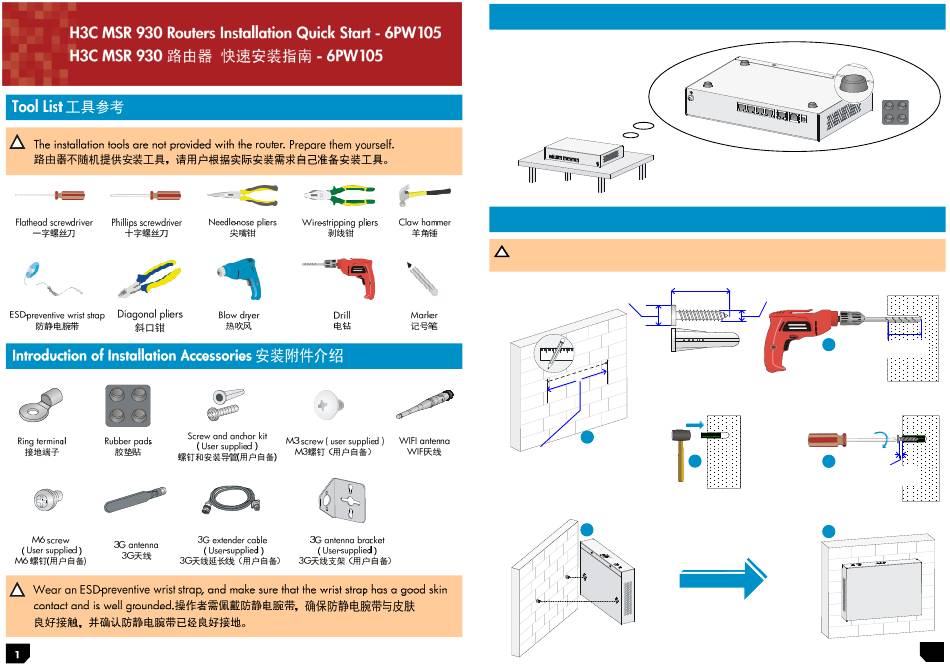

Mounting the Router to a Workbench 安装路由器到工作台
Stick the rubber pads to the
appropriate positions on the
router bottom
将脚垫粘贴到路由器底部
Wall Mounting 壁挂安装
The screw anchors are compatible with the screws.
安装导管尺寸应与螺钉配套。
6 mm ≤ Ф ≤ 8 mm ≥ 16 mm (0.63 in)
(0.24 in ≤ Ф ≤ 0.31 in)
1
180 mm (7.09 in)：MSR 930、MSR 930-W、
MSR 930-GU、MSR 930-GT
240 mm (9.45 in)：MSR 930-W-GU、MSR
930-W-GT、MSR 930-DG、MSR 930-SA
5
3 mm ≤ Ф ≤ 3.5 mm
(0.12 in ≤ Ф ≤ 0.14 in)
2
3
4
6
≥ 22 mm
(0.87 in)
≥ 1.5 mm
(0.06 in)
2
