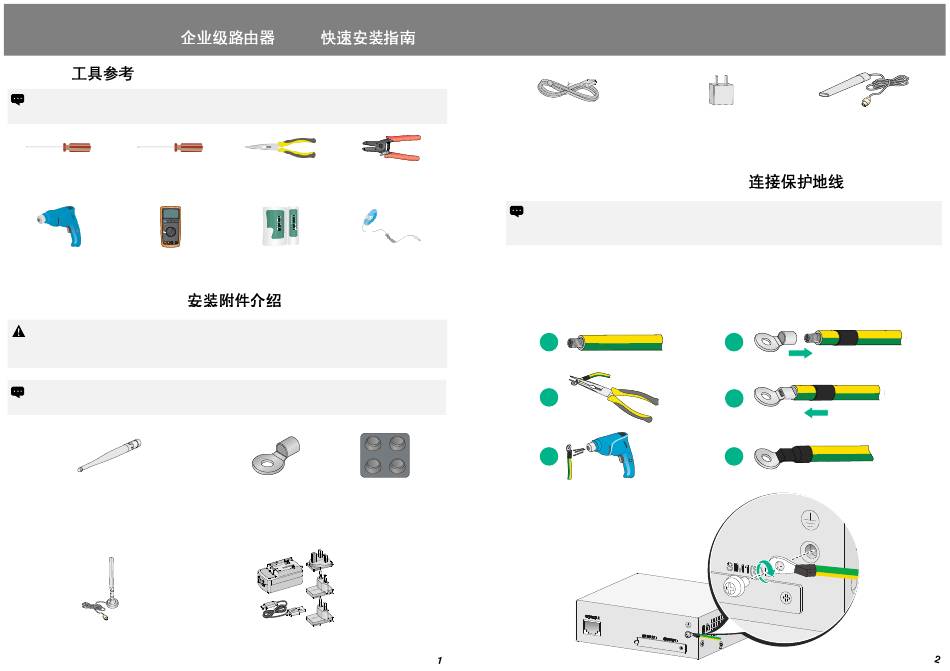

H3C MSR810 Enterprise-Level 4G LTE Router (Mini) Installation Quick Start-6W105

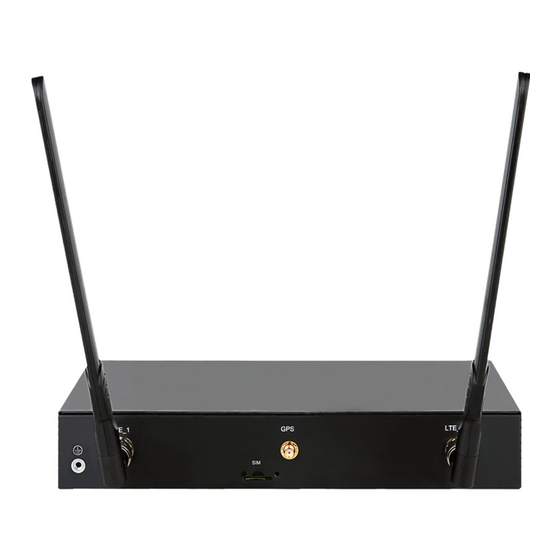

H3C MSR810 4G LTE
Tool list
The installation tools are not provided with the router. Prepare them yourself as required.
路由器不随机提供安装工具,请用户根据实际安装需求自己准备安装工具。
Flathead screwdriver
Phillips screwdriver
一字螺丝刀
十字螺丝刀
Heat gun
Multimeter
热风枪
万用表

Installation accessories

Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and
!
is reliably grounded. 操作者需佩戴防静电腕带,确保防静电腕带与皮肤良好接触,并确
认防静电腕带已经良好接地。
For correct operation of the router, use a 4G antenna from H3C.
请采用H3C公司的4G天线,否则会影响设备的正常使用。
Stick 4G antenna (shipped with the RT-
MSR810-LMS-EA and RT-MSR810-LME
models and optional for other models) 棒
状-4G天线 (仅RT-MSR810-LMS-EA、RT-
MSR810-LME提供,其他款型选配)
4G-LTE magnetic mount antenna (optional only
for the RT-MSR810-LMS-EA)
4G-LTE磁吸天线(仅RT-MSR810-LMS-EA选配)
(Mini)
-6W105
Needle-nose pliers
Wire-stripping pliers
尖嘴钳
剥线钳
Network cable tester
ESD wrist strap
测线仪
防静电腕带
Ring terminal
Rubber feet
接地端子
脚垫
UK 英标
EU 欧标
TH 泰标
RT-MSR810-LMS-EA power adapter kit
RT-MSR810-LMS-EA电源适配器套件
RT-MSR810-LME [LMS]
RT-MSR810-LME [LMS]
[LUS] power adapter
[LUS] data cable
RT-MSR810-LME [LMS]
RT-MSR810-LME
[LUS] 电源适配器
[LMS] [LUS]数据线

Connecting the grounding cable

Correctly connecting the grounding cable is crucial to lightning protection and EMI protection.
设备地线的正确连接是设备防雷、防干扰的重要保障,请使用设备随机提供的保护地线
正确接地。
Make a grounding cable 制作保护地线
Only a ring terminal is provided with the router. You need to make a grounding cable yourself.
路由器不随机提供接地线,仅提供OT端子,用户需自行制作,步骤如下。
1
3
5

Connect the grounding cable

连接保护地线
4G antenna with a 3 m (9.84 ft)
extension cable (optional)
3M延长线-4G天线(选配)
2
4
6
