5.7.7. DISASSEMBLING THE FINAL DRIVE UNIT
BEARINGS
•

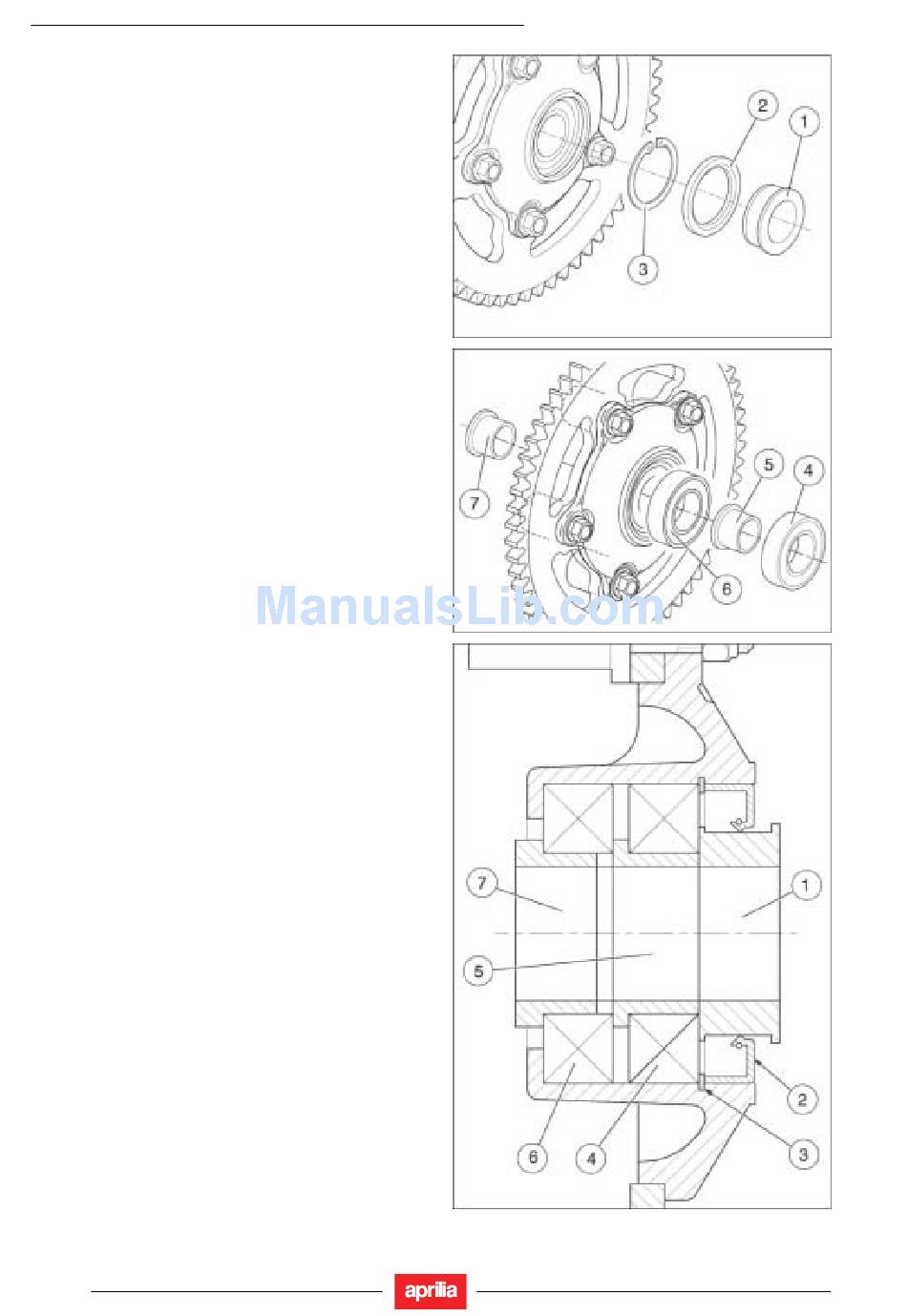

Remove the final drive unit.
•
Use a cloth to clean both sides of the hub.
•
Remove the left spacer (1).
•
Remove the seal (2).
•
Remove the snap ring (3).
NOTE The elastic ring (3) is provided only on the left side of
the final drive unit.
NOTE Have the appropriate special tool OPT at hand:
- Aprilia part# 8140180 (bearing extractors).
•
Use a special extractor to extract the left bearing (4).
•
Retrieve the inner spacer (5).
•
Use a special extractor to extract the right bearing (6).
•
Take the right spacer ring (7).
•
Thoroughly clean the inside of the hub.
NOTE Wash all the components with a clean detergent.
