CYCLE PARTS
•

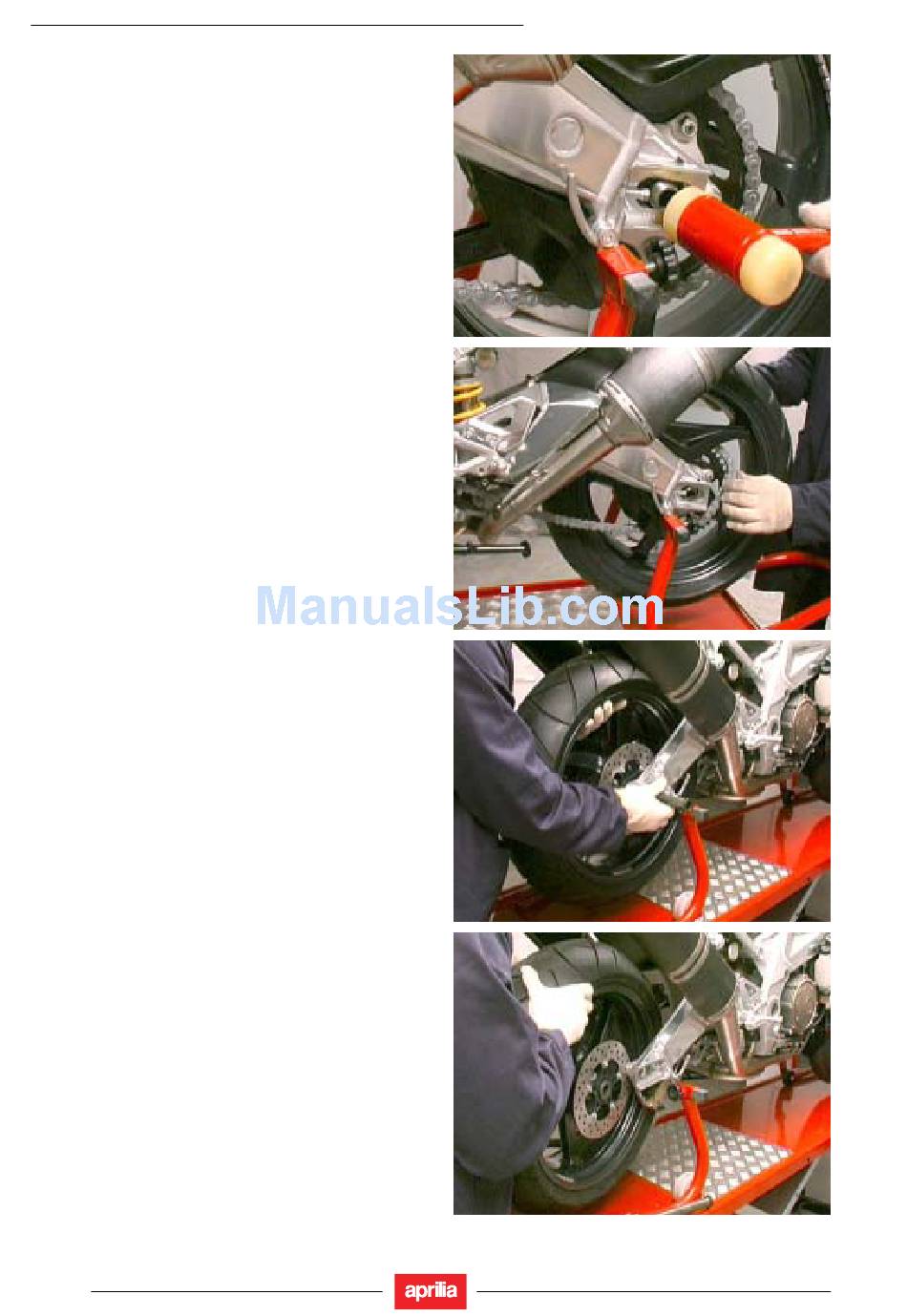

Lightly knock on the wheel axle so that its head thrusts
forth from its seat
•
Move the wheel forwards and disengage the chain
from the sprocket
•
Extract the wheel axle together with the right hand
chain guide shoe
•
Remove the entire wheel, sliding the disc out from the
brake caliper
5 - 106
RSV 1000 R - RSV 1000 R FACTORY
