CYCLE PARTS

5.7. REAR WHEEL

5.7.1.

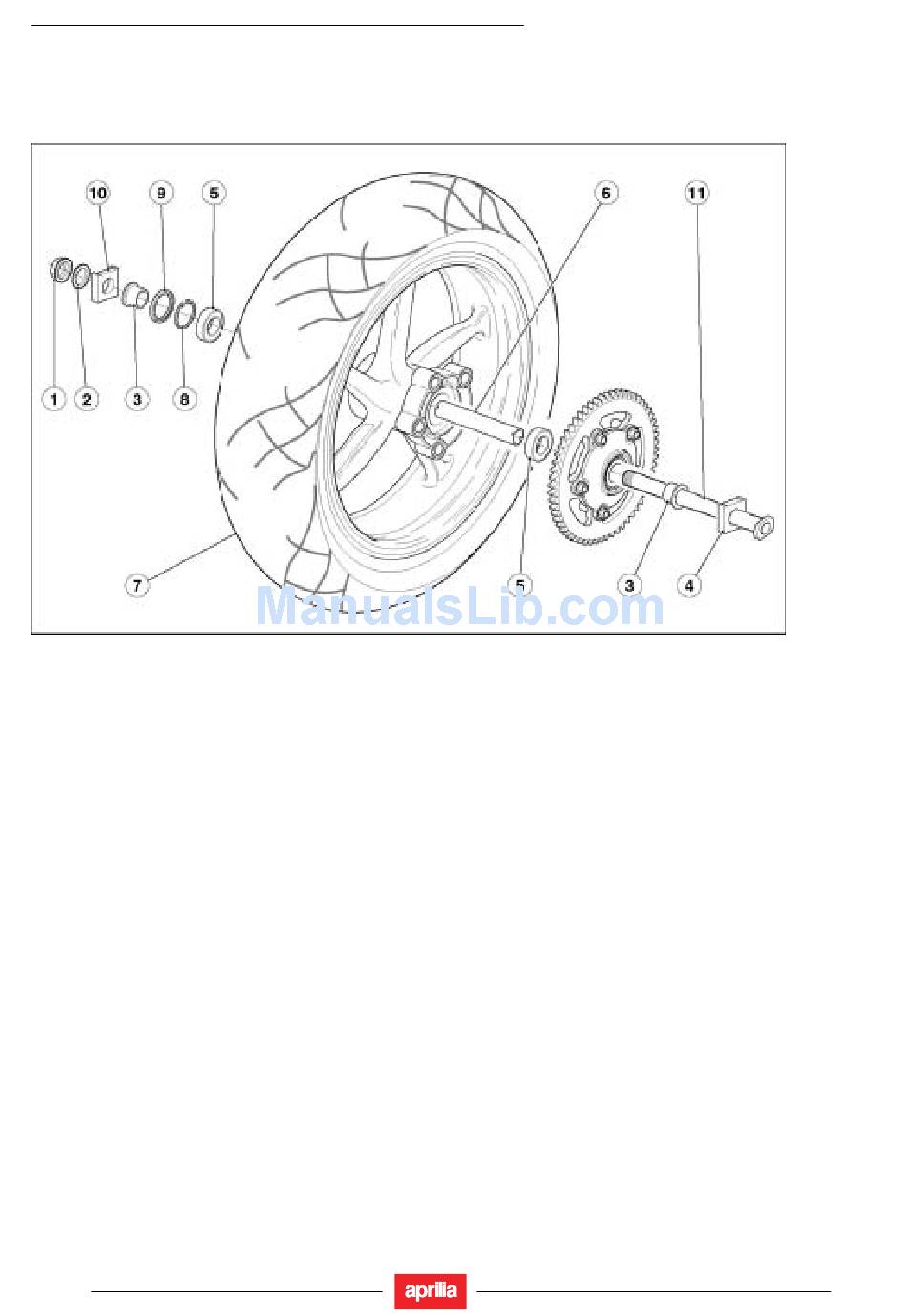

DIAGRAM

Key:
1. Nut
2. Washer
3. Side spacers
4. Left chain tightener shoe
5. Bearings
6. Central spacer
7. Complete wheel
8. Snap ring
9. Seal
10. Right chain tightener shoe
11. Wheel pin
