RSV 1000 R - RSV 1000 R FACTORY
2.1.6.

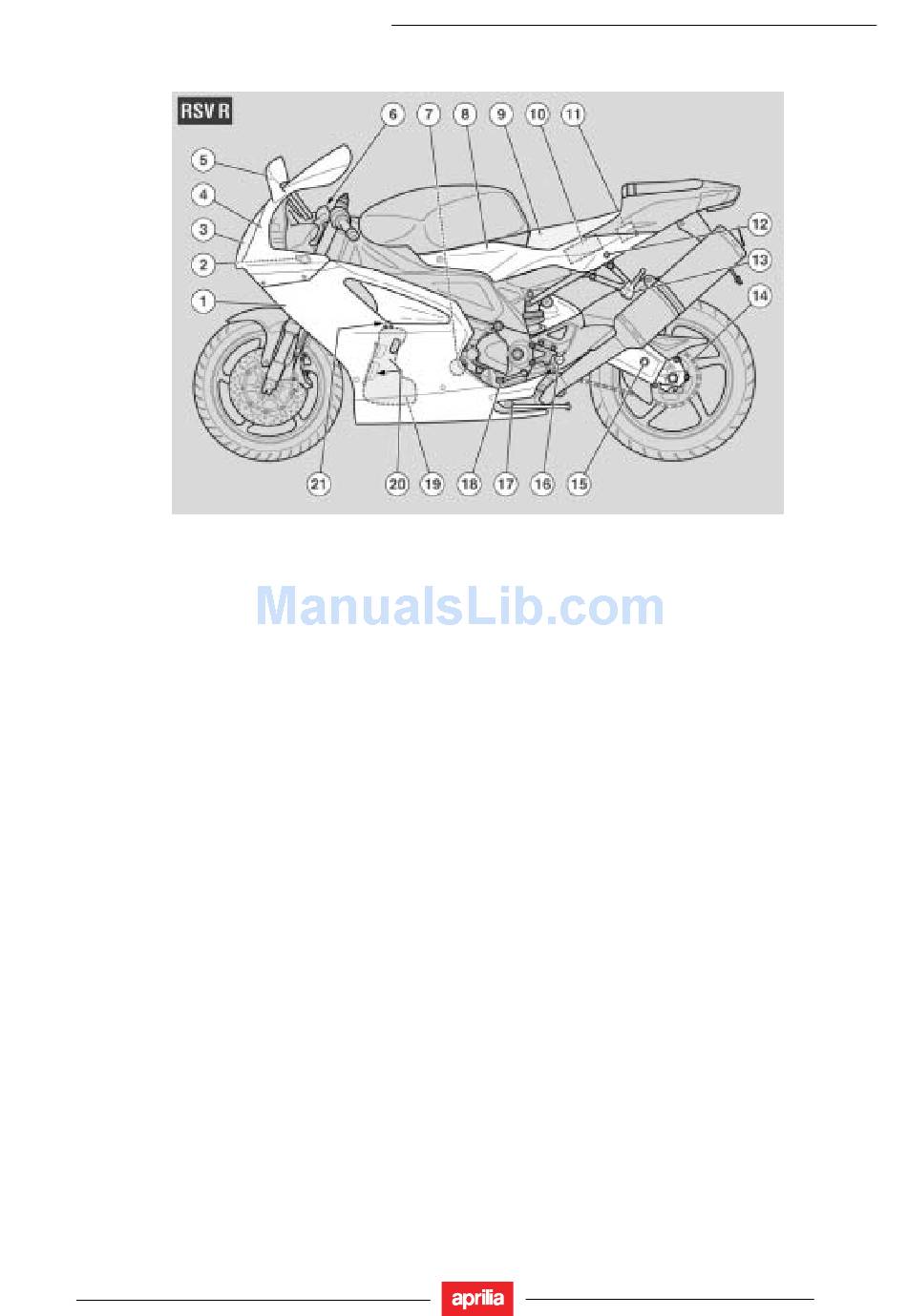

ARRANGEMENT OF THE MAIN ELEMENTS

KEY RSV R
1. Left side fairing
2. Adjustable steering damper RSV R OPT
3. Headlight left lamp
4. Front fairing
5. Left rear-view mirror
6. Clutch fluid's reservoir
7. Engine's oil filter
8. Left side panel
9. Rider's seat
10. Battery
11. Main fuse carrier (30 A)
12. Passenger seat's lock glove/tool kit compartment
13. Passenger left footrest (snaps closed/open)
14. Drive chain
15. Rear swinging arm
16. Rider's left footrest
17. Side stand
18. Gear shift lever
19. Engine's oil tank
20. Engine's oil level
21. Engine oil tank's cap
GENERAL TECHNICAL INFORMATION
2 - 21
