APRILIA RSV 1000 R FACTORY Workshop Manual page 299

RSV 1000 R - RSV 1000 R FACTORY

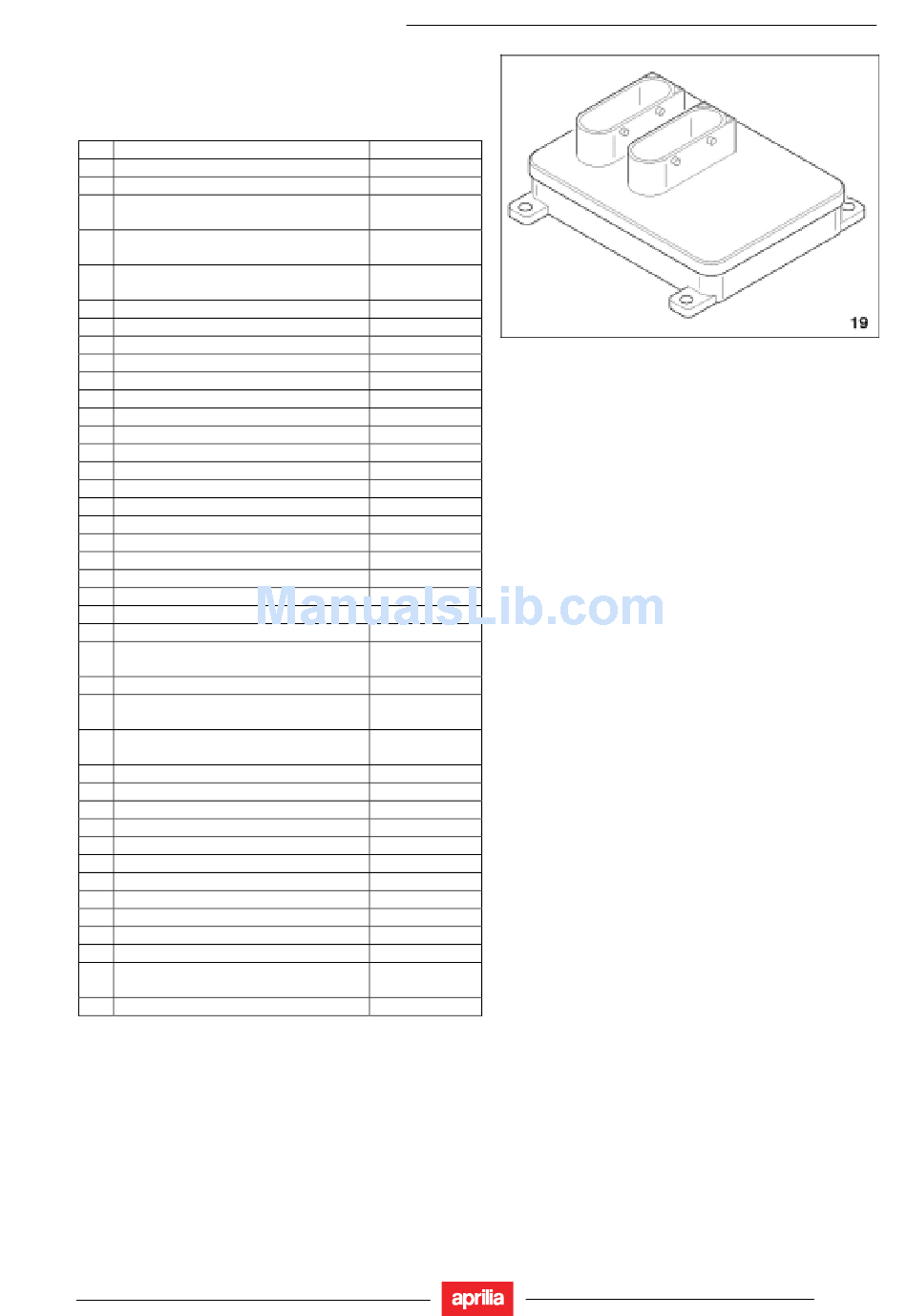

19 ECU
ECU pinout
Connector A
Pin Description
1 Rear cylinder coil control
2 n.c.
3 Atmospheric pressure sensor power
(5V)
4 Atmospheric pressure sensor power
(ground)
5 Engine speed sensor signal
6 n.c.
7 Air temperature sensor signal
8 n.c.
9 n.c.
10 Minimum oil pressure sensor signal
11 Water temperature sensor signal
12 Manifold pressure sensor signal
13 n.c.
14 Purge valve control
15 Front cylinder injector 2 control
16 n.c.
17 n.c.
18 Atmospheric pressure sensor signal
19 Engine speed sensor signal (ground) Power
20 Timing sensor (ground)
21 Air temperature sensor signal
22 n.c.
23 n.c.
24 Throttle potentiometer signal
25 Throttle potentiometer
(ground)
26 n.c.
27 Water temperature sensor signal
(ground)
28 Manifold pressure sensor power
(ground)
29 n.c.
30 n.c.
31 n.c.
32 n.c.
33 Rear cylinder injector 1 control
34 Timing sensor
35 D stepper timing
36 A stepper timing
37 C stepper timing
38 B stepper timing
39 Throttle potentiometer power (5 V)
40 Manifold pressure sensor power (5
V)
41 Front cylinder coil control
Signal type
Power output
Power
Power
Frequency in-
put
Analogue input
Digital input
Analogue input
Analogue input
Power output
Power output
Analogue input
Power
Power
Analogue input
power Power
Power
Power
Power output
Analogue input
Power output
Power output
Power output
Power output
Power
Power
Power output
ELECTRICAL SYSTEM
7 - 11
