3.3. THROTTLE BODY

3.3.1.

REMOVING THE THROTTLE BODY

WARNING

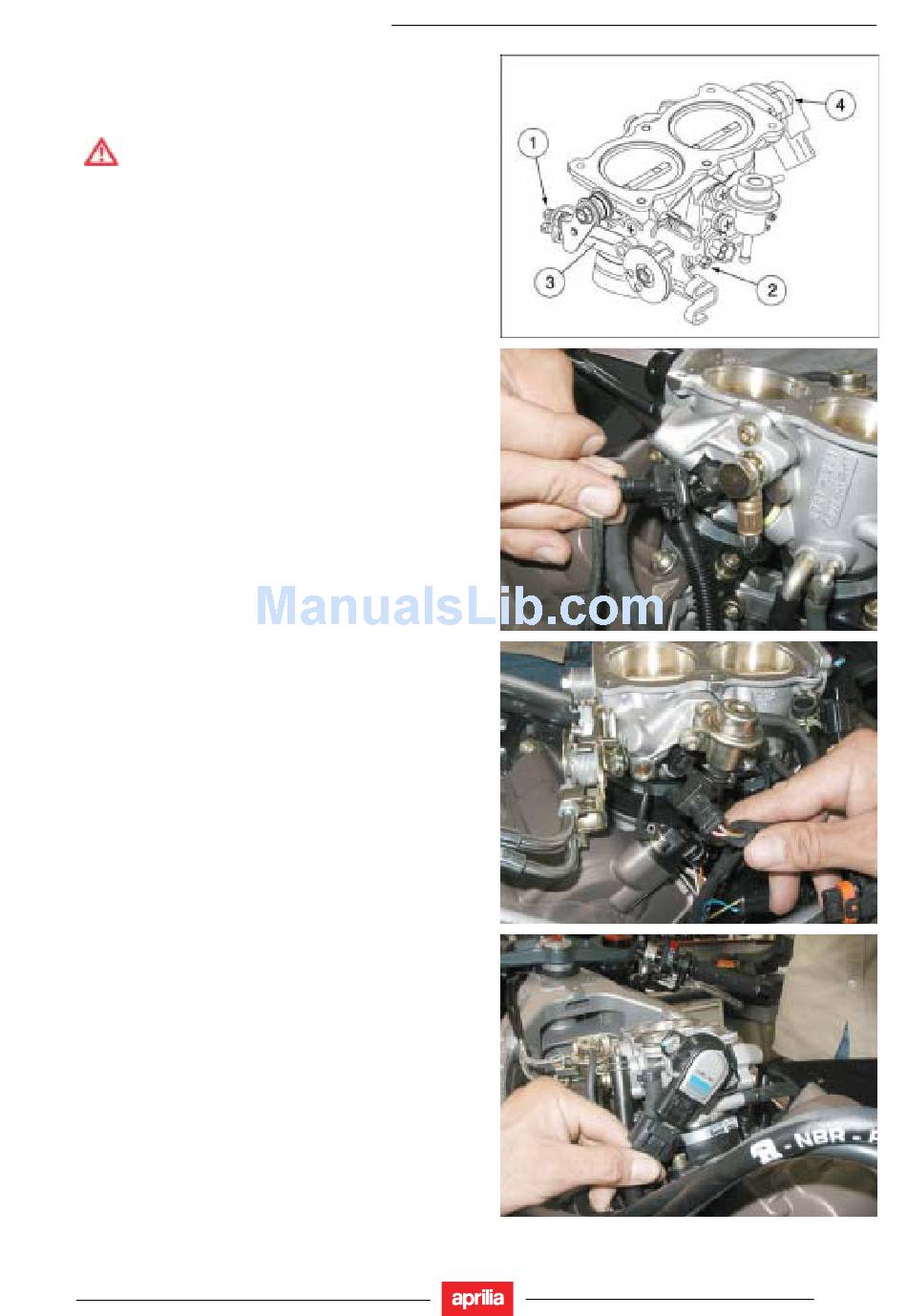

The throttle setting screws (1) are painted over
and cannot be adjusted.
Only if the entire cable fitting (2) is to be re-
placed, the setting screws can be adjusted.
The two M4x12 (3) screws securing the throttle
valve potentiometer are painted over and can
only be extracted if the sensor itself is being
removed.
•
Partially remove the fuel tank.
•
Remove the airbox.
•
Detach the electrical connectors.
•
- right injector;
- left injector;
- throttle valve potentiometer.
FUEL SYSTEM
3 - 17
