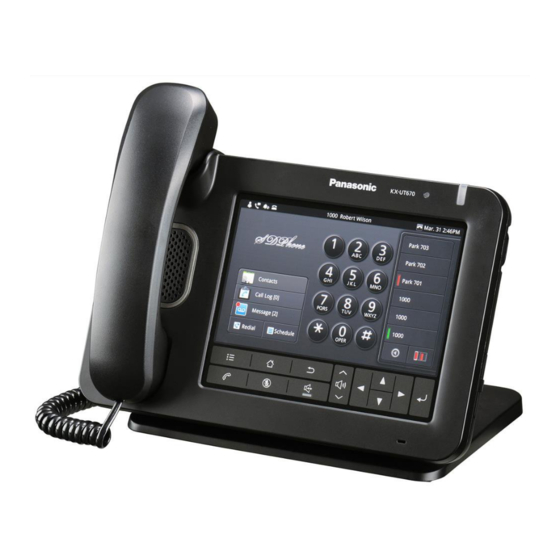

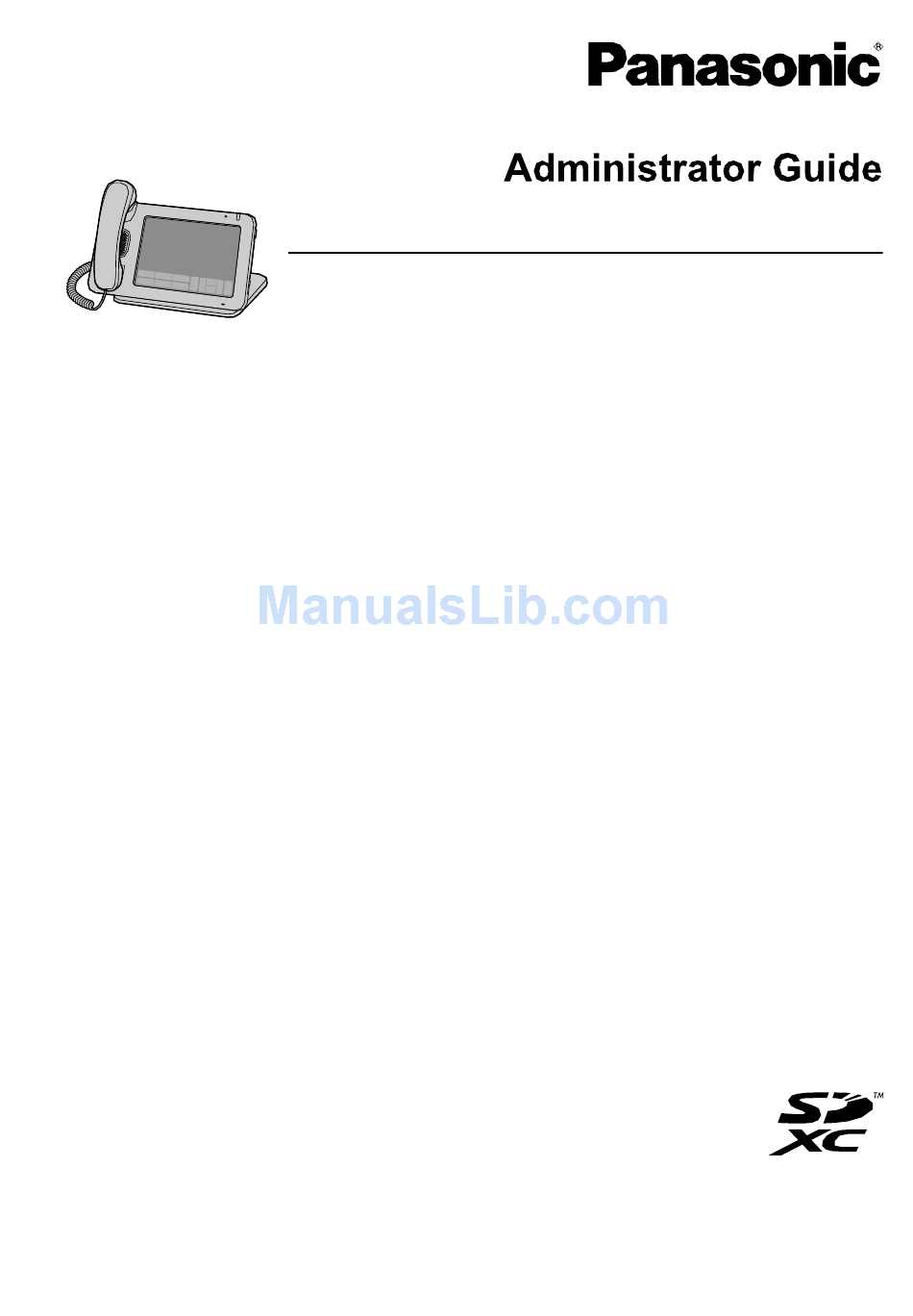

Page 1 Thank you for purchasing this Panasonic product. Please read this manual carefully before using this product and save this manual for future use. KX-UT670: Software File Version 01.070 or later In this manual, the suffix of each model number is omitted unless necessary.
Page 2: Related Documentation
Briefly describes basic information about the installation of the unit. Operating Instructions Describes the parts of the unit, operation procedures, maintenance, etc. Manuals and supporting information are provided on the Panasonic Web site at: http://www.panasonic.com/sip (for users in the United States) http://panasonic.net/pcc/support/sipphone (for users in all other countries/areas) NOTES •...
Page 3: Table Of Contents
Table of Contents Table of Contents 1 Initial Setup .....................15 Setup ..........................16 1.1.1 Factory Defaults ......................16 1.1.2 Language Selection for the Unit ..................16 1.1.3 Basic Network Setup ......................16 1.1.4 Other Network Settings ....................18 1.1.4.1 Firewall and Router Setup ...................18 1.1.4.2 NAT (Network Address Translation) Setup ..............19 1.1.4.3 Global Address Detection ....................20...
Page 4 Table of Contents Model ........................66 Firmware Version ......................66 4.3.2 Network Status .......................66 4.3.2.1 Network Status ......................67 MAC Address ......................67 Ethernet Link Status (LAN Port) ................67 Ethernet Link Status (PC Port) ..................67 Connection Mode ......................67 IP Address ........................67 Subnet Mask ......................67 Default Gateway .......................68 DNS1 ........................68 DNS2 ........................68...
Page 5: Administrator Guide
Table of Contents Proxy Server Address ....................79 Proxy Server Port ......................79 4.4.4 Global Address Detection ....................79 4.4.4.1 Global Address Detection ....................79 Detection Method ......................79 Detection Interval ......................80 4.4.4.2 STUN Server .......................80 STUN Server Address ....................80 STUN Server Port .....................80 4.4.5 Static NAPT Settings ......................80 4.4.5.1 Global IP Address ......................81...
Page 6 Table of Contents Source Port .......................91 4.6.2.6 SIP Authentication .......................92 Authentication ID .......................92 Authentication Password ..................92 4.6.2.7 DNS ..........................92 Enable DNS SRV lookup ..................92 SRV lookup Prefix for UDP ..................93 SRV lookup Prefix for TCP ..................93 4.6.2.8 Transport Protocol for SIP ...................93 Transport Protocol ....................93 4.6.2.9 Timer Settings ......................94...
Page 7: Administrator Guide
Table of Contents G729A (Enable) ......................104 G729A (Priority) ......................104 PCMU (Enable) .......................104 PCMU (Priority) .......................105 Telephone ........................105 4.7.1 Call Control ........................105 4.7.1.1 Call Control ........................105 Send SUBSCRIBE to Voice Mail Server ..............105 Conference Server URI ...................106 Inter-digit Timeout ....................106 Timer for Dial Plan ....................106 International Call Prefix ...................106 Country Calling Code ....................107 National Access Code .....................107...
Page 8 Table of Contents 4.7.3.5 Reorder Tone ......................120 Tone Frequencies ....................120 Tone Timings ......................120 4.7.4 Telephone Settings ......................120 4.7.4.1 Telephone Settings ....................120 Number Matching Lower Digit .................120 Number Matching Upper Digit .................121 Maintenance ........................121 4.8.1 Firmware Maintenance ....................121 4.8.1.1 Firmware Maintenance ....................121 Enable Firmware Update ..................121 Firmware File URL ....................122 4.8.2...
Page 9 Table of Contents CFG_FILE_KEY1 ......................148 CFG_FILE_KEY2 ......................149 CFG_FILE_KEY3 ......................149 CFG_FILE_KEY_LENGTH ..................149 CFG_CYCLIC ......................149 CFG_CYCLIC_INTVL ....................150 CFG_RTRY_INTVL ....................150 CFG_RESYNC_TIME ....................150 CFG_RESYNC_FROM_SIP ..................151 Network Settings ......................151 5.5.1 Ethernet Port Settings ....................151 LLDP_ENABLE ......................151 LLDP_INTERVAL ......................152 LLDP_VLAN_ID_PC ....................152 LLDP_VLAN_PRI_PC ....................152 VLAN_ENABLE ......................152 VLAN_ID_IP_PHONE ....................153 VLAN_PRI_IP_PHONE .....................153 VLAN_ID_PC ......................154 VLAN_PRI_PC ......................154...
Page 10 Table of Contents RINGING_OFF_SETTING_ENABLE ................163 AUTO_CALL_HOLD ....................163 REDIALKEY_CALLLOG_ENABLE ................164 ONHOOK_TRANSFER_ENABLE ................164 DISCONNECTION_MODE ..................164 TONE_LEN_DISCONNECT_HANDSET ..............164 TONE_LEN_DISCONNECT_HANDSFREE ..............165 KEY_PAD_TONE ......................165 DDI_ICD_GROUP_DISPLAY ..................165 5.6.2 Tone Settings .......................166 DIAL_TONE1_FRQ ....................166 DIAL_TONE1_GAIN ....................166 DIAL_TONE1_TIMING ....................166 DIAL_TONE2_FRQ ....................166 DIAL_TONE2_GAIN ....................167 DIAL_TONE2_TIMING ....................167 DIAL_TONE4_FRQ ....................167 DIAL_TONE4_GAIN ....................167 DIAL_TONE4_TIMING ....................167 BUSY_TONE_FRQ ....................168 BUSY_TONE_GAIN ....................168...
Page 11 Table of Contents CODEC_G729_PARAM ....................177 CODEC_ENABLEx_n ....................177 CODEC_PRIORITYx_n .....................177 5.7.2 RTP Settings ........................178 DSCP_RTP_n ......................178 DSCP_RTCP_n ......................178 RTCP_INTVL_n ......................179 MAX_DELAY_n ......................179 MIN_DELAY_n ......................179 NOM_DELAY_n ......................180 RTP_PORT_MIN .......................180 RTP_PORT_MAX ......................180 RTP_PTIME ......................181 RTCP_ENABLE_n .....................181 RTCP_SEND_BY_SDP_n ..................182 RTP_CLOSE_ENABLE_n ..................182 5.7.3 Miscellaneous VoIP Settings ..................182 OUTBANDDTMF_n ....................182 DTMF_RELAY_n .......................183 TELEVENT_PAYLOAD .....................183...
Page 12 Table of Contents SIP_2NDPROXY_ADDR_n ..................194 SIP_2NDPROXY_PORT_n ..................194 SIP_2NDRGSTR_ADDR_n ..................194 SIP_2NDRGSTR_PORT_n ..................195 SIP_TIMER_T1_n .....................195 SIP_TIMER_T2_n .....................195 SIP_TIMER_T4_n .....................196 SIP_FOVR_NORSP_n ....................196 SIP_FOVR_MAX_n ....................196 SIP_REFRESHER_n ....................197 SIP_DNSSRV_ENA_n ....................197 SIP_UDP_SRV_PREFIX_n ..................197 SIP_TCP_SRV_PREFIX_n ..................198 SIP_100REL_ENABLE_n ..................198 SIP_INVITE_EXPIRE_n ....................198 SIP_18X_RTX_INTVL_n ...................199 SIP_PRSNC_ADDR_n ....................199 SIP_PRSNC_PORT_n ....................199 SIP_2NDPRSNC_ADDR_n ..................200 SIP_2NDPRSNC_PORT_n ..................200 USE_DEL_REG_OPEN_n ..................200 USE_DEL_REG_CLOSE_n ..................200...
Page 13: Administrator Guide
Table of Contents Registering One-touch Buttons and BLF Buttons .............212 Setting the Feature Number to Access Voice Mail ............212 Registering Flexible Buttons ..................212 Customizing the Phone ....................212 Adding Applications .....................213 Dial Plan .........................214 6.6.1 Dial Plan Settings ......................215 7 Firmware Update ..................219 General Information on Firmware Update ..............220 Firmware Update Settings ....................220 Executing Firmware Update ..................221...
Page 14 Table of Contents Administrator Guide Document Version 2012-07...
Page 15: Initial Setup
Section 1 Initial Setup This section provides an overview of the setup procedures for the unit. Document Version 2012-07 Administrator Guide...
Page 16: Setup
You can select the language for the Web user interface. Note • To select the display language for the unit, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). • To select the display language for the Web user interface, see 4.5.1 Web Language.
Page 17: Ethernet Settings
Section 1 Initial Setup Note • If you selected [Use the following settings] in step 4, enter the addresses for DNS1 (primary DNS server) and, if necessary, DNS2 (secondary DNS server) manually. To use a static IP address Press on the Home screen, and then tap [Settings]. Tap [Network] and then select [Basic Network settings].
Page 18: Other Network Settings
Section 1 Initial Setup Note • For details about the administrator password, see 3.1.2 Phone User Interface Administrator Menu. • When both [Use LLDP] and [Use VLAN] are checked, VLAN settings are prioritized. Date and Time (NTP Server) Settings The following procedure explains how to set the date and time using a NTP (Network Time Protocol) server via the unit.
Page 19: Nat (Network Address Translation) Setup
Section 1 Initial Setup 1.1.4.2 NAT (Network Address Translation) Setup This section provides information about configuring a router that uses NAT. Internet Global IP address: xxx.yyy.zzz.127 Router Switching SIP Phone Private IP address: Private IP address: 192.168.228.11 192.168.228.12 If the unit is connected to a network that uses a NAT router and a private IP address is assigned to each terminal on the network, depending on your phone system’s setup, you might need to configure the unit and router so as to use NAT Traversal techniques.
Page 20: Global Address Detection
Section 1 Initial Setup RTP (Real-time Transport Protocol) Setup If the unit is connected to a network that uses a NAT router and a private IP address is assigned to each terminal on the network, you must configure the RTP function for the unit and router so that the units can perform voice transmission between each other using a peer-to-peer connection.
Page 21: General Information On Programming
Section 2 General Information on Programming This section describes the various ways of programming the unit. Document Version 2012-07 Administrator Guide...
Page 22: Overview Of Programming
You can change the language used on the LCD. Because the language settings for the LCD of the unit are not synchronized, you must set the languages individually for the unit. For details about changing the setting, refer to the Operating Instructions on the Panasonic Web site (® see Introduction).
Page 23: Web User Interface Programming
Section 2 General Information on Programming 2.3 Web User Interface Programming After connecting the unit to your network, you can configure the unit’s settings by accessing the Web user interface from a PC connected to the same network. For details, see Section 4 Web User Interface Programming.
Page 24: Configuration File Programming
Section 2 General Information on Programming 2.4 Configuration File Programming You can make settings by creating a configuration file in advance (® see 2.4.2 Pre-provisioning). Also, the unit can be set by downloading configuration files from a server (® see 2.4.3 Provisioning). For details about programming configuration files, see Section 5 Configuration File Programming.
Page 25: Configuration File Programming Methods
TFTP server Used to store configuration The unit will download the configuration file files, and is set as the access "KX-UT670.cfg" stored in the root directory of the point for downloading them TFTP server. automatically. Document Version 2012-07 Administrator Guide...
Page 26: Pre-Provisioning Setting Example
IP address range assigned by DHCP server 192.168.0.16 to 192.168.0.63 File name of the configuration file used for KX-UT670.cfg pre-provisioning The setting example as set in KX-UT670.cfg CFG_STANDARD_FILE_PATH="http:// provisioning.example.com/Config{MAC}.cfg" Note • "{MAC}" is replaced by the MAC address of the unit.
Page 27: Provisioning
Section 2 General Information on Programming Step 2 tftp://192.168.0.130/ The unit downloads the configuration file for KX-UT670.cfg pre-provisioning from the TFTP server. KX-UT670.cfg SIP Phone TFTP Server Step 3 The URL of the server where the configuration file for provisioning is stored (provisioning http://provisioning.example.com/...
Page 28: Downloading Configuration Files
Confirm that the provisioning server’s IP address/FQDN and directory are correct, and store the configuration files in the directory (e.g., http://provisioning.example.com/Panasonic/Config_Sample.cfg). Enter the IP address of the unit into the PC’s Web browser (® see 4.2.4 Accessing the Web User Interface).
Page 29: Timing Of Downloading
Section 2 General Information on Programming Timing of Downloading A unit downloads configuration files when it starts up, at regular intervals, and when directed to do so by the server. In addition, you can prohibit units from downloading the configuration files. For details about the settings, see 4.8.2 Provisioning Maintenance and 5.4.5 Provisioning Settings.
Page 30 Section 2 General Information on Programming Download Timing Explanation At a specified time each day After the unit is powered on, it will check for and download configuration files once per day at the specified time. CFG_RESYNC_TIME="02:00" Provisioning SIP Phone Server Check Power On...
Page 31: Provisioning Server Setting Example
Section 2 General Information on Programming Download Timing Explanation None (prohibited) If you want to prohibit units from changing their settings by downloading configuration files, you can enable this function. The following operations will be prohibited: – Provisioning at startup –...
Page 32: Encryption
Section 2 General Information on Programming Example Provisioning Direction from the Server The following figure shows an example NOTIFY message from the server, directing the units to perform provisioning. The text "check-sync" is specified for "CFG_RESYNC_FROM_SIP". NOTIFY sip:1234567890@sip.example.com SIP/2.0 Via: SIP/2.0/UDP xxx.xxx.xxx.xxx:5060;branch=abcdef-ghijkl From: sip:prov@sip.example.com To: sip:1234567890@sip.example.com Date: Thu, 1 Jan 2009 01:01:01 GMT...
Page 33: Xml Structure
• The configuration file does not necessarily need to have the ".xml" extension. However, it must start with a comment line containing "# Panasonic SIP Phone Standard Format File #". • If you are transferring configuration files using an encryption key (® see 2.4.3.6 Encryption), the file extension must be changed accordingly.
Page 34 Section 2 General Information on Programming Example: UserAgentPort[n] SIP_SRC_PORT_[n] <UserAgentPort1 SIP_SRC_PORT_1="5060" /> <UserAgentPort2 SIP_SRC_PORT_2="5070" /> <UserAgentPort3 SIP_SRC_PORT_3="5080" /> <UserAgentPort4 SIP_SRC_PORT_4="5090" /> <UserAgentPort5 SIP_SRC_PORT_5="5100" /> <UserAgentPort6 SIP_SRC_PORT_6="5110" /> • Certain parameter names end with "[x]". This signifies that these settings can be made to each button individually.
Page 35: Xml Element/Attribute Configuration Parameter Table
Section 2 General Information on Programming 2.4.4.2 XML Element/Attribute Configuration Parameter Table Attribute Element Ref. (Configuration Parameter) PANASipPhoneConfig – – – – – – Prof – – Enable PROFILE_ENABLE[n] Page 190 DTMFMethod OUTBANDDTMF_[n] Page 182 DigitMap DIAL_PLAN_[n] Page 185 – –...
Page 36 Section 2 General Information on Programming Attribute Element Ref. (Configuration Parameter) RegisterExpires REG_EXPIRE_TIME_[n] Page 192 RegisterRetryInterval REG_RTX_INTVL_[n] Page 203 DSCPMark DSCP_SIP_[n] Page 193 X_P_IPTEL_RegisterInte REG_INTERVAL_RATE_[n] Page 193 rvalRate DetectReceiveToHeader SIP_RCV_DET_HEADER_[n] Page 206 X_P_IPTEL_SIPProxyServ SIP_2NDPROXY_ADDR_[n] Page 194 X_P_IPTEL_SIPProxyServ SIP_2NDPROXY_PORT_[n] Page 194 erPort2 X_P_IPTEL_SIPRegistrar SIP_2NDRGSTR_ADDR_[n]...
Page 37 Section 2 General Information on Programming Attribute Element Ref. (Configuration Parameter) ButtonMap – – Button ID="[x]" ([x]:1–24) – FacilityAction FLEX_BUTTON_FACILITY_ACT[x] Page 175 FacilityActionArgume FLEX_BUTTON_FACILITY_ARG[x] Page 175 ButtonMessage FLEX_BUTTON_LABEL[x] Page 176 Codec – – PacketizationPeriod RTP_PTIME Page 181 Line ID="[n]" – Enable LINE_ENABLE_[n] Page 189...
Page 38 Section 2 General Information on Programming Attribute Element Ref. (Configuration Parameter) X_P_IPTEL_ResourceLi RESOURCELIST_URI_[n] Page 187 stUri Codec – – List ID="[y]" ([y]:0–4) – Enable CODEC_ENABLE[y]_[n] Page 177 Priority CODEC_PRIORITY[y]_[n] Page 177 X_P_IPTEL_SIP – – SessionTimer SIP_SESSION_TIME_[n] Page 193 SessionMethod SIP_SESSION_METHOD_[n] Page 193 FailoverEnable SIP_FOVR_NORSP_[n]...
Page 39 Section 2 General Information on Programming Attribute Element Ref. (Configuration Parameter) SubscribeIntervalRat SUB_INTERVAL_RATE_[n] Page 204 HoldReceiveEnable SIP_HOLD_HOLDRECEIVE_[n] Page 209 ContactHeaderOnACK SIP_CONTACT_ON_ACK_[n] Page 207 AnonymousDisplayName SIP_ANM_DISPNAME_[n] Page 205 AnonymousUserName SIP_ANM_USERNAME_[n] Page 205 AnonymousHostName SIP_ANM_HOSTNAME_[n] Page 206 PreferredIDEnable SIP_P_PREFERRED_ID_[n] Page 203 PrivacyEnable SIP_PRIVACY_[n] Page 203 AddDiversionHeader...
Page 40 Section 2 General Information on Programming Attribute Element Ref. (Configuration Parameter) Version HTTP_VER Page 155 CustomWebPage CUSTOM_WEB_PAGE Page 159 UserAgent HTTP_USER_AGENT Page 155 SSLVerify HTTP_SSL_VERIFY Page 156 CertificateFileURL CFG_ROOT_CERTIFICATE_PATH Page 156 X_P_IPTEL_Codec – – CodecG711requirement CODEC_G711_REQ Page 176 CodecG729Parameter CODEC_G729_PARAM Page 177 X_P_IPTEL_STUN –...
Page 41 Section 2 General Information on Programming Attribute Element Ref. (Configuration Parameter) CallReject SIP_RESPONSE_CODE_CALL_REJECT Page 210 X_P_IPTEL_LLDP – – Enable LLDP_ENABLE Page 151 Interval LLDP_INTERVAL Page 152 PcID LLDP_VLAN_ID_PC Page 152 PcPriority LLDP_VLAN_PRI_PC Page 152 X_P_IPTEL_VLAN – – Enable VLAN_ENABLE Page 152 IpPhoneID VLAN_ID_IP_PHONE Page 153...
Page 42 Section 2 General Information on Programming Attribute Element Ref. (Configuration Parameter) Enable FIRM_UPGRADE_ENABLE Page 143 Version FIRM_VERSION Page 143 FirmwareFileURL FIRM_FILE_PATH Page 144 X_P_IPTEL_CallCtrl – – VMSubscribeEnable VM_SUBSCRIBE_ENABLE Page 159 TalkPackageEnable TALK_PACKAGE Page 162 HoldPackageEnable HOLD_PACKAGE Page 162 RingingOffSettingEnable RINGING_OFF_SETTING_ENABLE Page 163 AutoCallHoldEnable AUTO_CALL_HOLD...
Page 43 Section 2 General Information on Programming Attribute Element Ref. (Configuration Parameter) PickupDirect NUM_PLAN_PICKUP_DIRECT Page 162 X_P_IPTEL_DTMF – – SignalLen DTMF_SIGNAL_LEN Page 184 InterDigitLen DTMF_INTDIGIT_TIM Page 184 X_P_IPTEL_TelSetting – – DisplayNameReplace DISPLAY_NAME_REPLACE Page 172 NumberMatchingLowerDigi NUMBER_MATCHING_LOWER_DIGIT Page 172 NumberMatchingUpperDigit NUMBER_MATCHING_UPPER_DIGIT Page 172 UserInterface –...
Page 44 Section 2 General Information on Programming Attribute Element Ref. (Configuration Parameter) Gain DIAL_TONE4_GAIN Page 167 Timing DIAL_TONE4_TIMING Page 167 Description4 – – Frequency BUSY_TONE_FRQ Page 168 Gain BUSY_TONE_GAIN Page 168 Timing BUSY_TONE_TIMING Page 168 Description5 – – Frequency REORDER_TONE_FRQ Page 169 Gain REORDER_TONE_GAIN Page 169...
Page 45: Editing Xml Configuration Files On Your Pc
Panasonic Web site (® see Introduction). Prepare an SD card. For details about supported SD cards, refer to the Panasonic Web site (® see Introduction). Create a configuration file using a computer’s text editor (® see 5.2.1 Configuration File Specifications for Plain Text Provisioning).
Page 46: Priority Of Setting Methods
Section 2 General Information on Programming 2.5 Priority of Setting Methods The same settings can be configured by different configuration methods: provisioning, Web user interface programming, etc. This section explains which value is applied when the same setting is specified by multiple methods.
Page 47: Phone User Interface Programming
Section 3 Phone User Interface Programming This section explains how to configure the unit through the phone user interface. Document Version 2012-07 Administrator Guide...
Page 48: Phone User Interface Programming
Operating Instructions. For details about the other available features, settings and operations on the phone user interface, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). 3.1.1 Direct Commands The following table shows additional features programmable with direct commands. These commands are hidden from end users.
Page 49: Phone User Interface Administrator Menu
Section 3 Phone User Interface Programming Tap [OK] to confirm the reset. Notice • For security reasons, it is recommended that the passwords are set again immediately (® see 4.5.2 Administrator Password or 4.5.3 Change User Password). 3.1.2 Phone User Interface Administrator Menu The unit’s administrator password is necessary to access the [Administration] menu on the unit.
Page 50 Section 3 Phone User Interface Programming Tap [Administration], enter the administrator password, and tap [OK]. Tap [Administrator password], enter the new password, and enter it again for confirmation. Tap [OK]. Tap [Exit] to logout. Note • You can also change the administrator password using Web user interface programming (® see 4.5.2.1 Change Administrator Password) or configuration file programming (®...
Page 51: Web User Interface Programming
Section 4 Web User Interface Programming This section provides information about the settings available in the Web user interface. Document Version 2012-07 Administrator Guide...
Page 52: Web User Interface Setting List
Section 4 Web User Interface Programming 4.1 Web User Interface Setting List The following tables show all the settings that you can configure from the Web user interface and the access levels. For details about each setting, see the reference pages listed. For details about setting up Web user interface programming, see 2.3 Web User Interface Programming.
Page 53 Section 4 Web User Interface Programming Network Access Level Menu Item Section Title Setting Ref. Basic Network Connection Mode Connection Mode ü ü Page 70 Settings DHCP Settings Host Name ü Page 70 Domain Name Server ü ü Page 71 Static Settings Static IP Address ü...
Page 54 Section 4 Web User Interface Programming Access Level Menu Item Section Title Setting Ref. Global Address Global Address Detection Method ü Page 79 Detection Detection Detection Interval ü Page 80 STUN Server STUN Server Address ü Page 80 STUN Server Port ü...
Page 55 Section 4 Web User Interface Programming VoIP Access Level Menu Item Section Title Setting Ref. SIP Settings SIP Setting SIP User Agent ü Page 88 SIP Settings Phone Number Phone Number ü Page 89 [Line 1]–[Line 6] SIP URI ü Page 89 SIP Server Registrar Server Address...
Page 56 Section 4 Web User Interface Programming Access Level Menu Item Section Title Setting Ref. SIP extensions Supports 100rel (RFC 3262) ü Page 96 Supports Session Timer (RFC ü Page 96 4028) NAT Identity Keep Alive Interval ü Page 96 Supports Rport (RFC 3581) ü...
Page 57 Section 4 Web User Interface Programming Access Level Menu Item Section Title Setting Ref. VoIP Settings Quality of Service (QoS) RTP Packet QoS (DSCP) ü Page 100 [Line 1]–[Line 6] RTCP Packet QoS (DSCP) ü Page 100 Statistical Information RTCP Enable ü...
Page 58 Section 4 Web User Interface Programming Telephone Access Level Menu Item Section Title Setting Ref. Call Control Call Control Send SUBSCRIBE to Voice ü Page 105 Mail Server Conference Server URI ü Page 106 Inter-digit Timeout ü Page 106 Timer for Dial Plan ü...
Page 59 Section 4 Web User Interface Programming Access Level Menu Item Section Title Setting Ref. Call Control [Line Call Control Display Name ü ü Page 109 1]–[Line 6] Voice Mail Access Number ü Page 109 Enable Shared Call ü Page 110 Synchronize Do Not Disturb ü...
Page 60 Section 4 Web User Interface Programming Access Level Menu Item Section Title Setting Ref. Telephone Telephone Settings Number Matching Lower ü Page 120 Settings Digit Number Matching Upper ü Page 121 Digit The access levels are abbreviated as follows: U: User; A: Administrator A check mark indicates that the setting is available for that access level.
Page 61: General Information On Web User Interface Programming
Section 4 Web User Interface Programming 4.2 General Information on Web User Interface Programming 4.2.1 Password for Web User Interface Programming To program the unit via the Web user interface, a login account is required. There are 2 types of accounts, and each has different access privileges.
Page 62: Opening/Closing The Web Port
Opening/Closing the Web Port To access the Web user interface, you must open the unit’s Web port beforehand. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). Configuring Settings from the Unit To open the unit’s Web port Press on the Home screen, and then tap [Settings].
Page 63: Accessing The Web User Interface
Section 4 Web User Interface Programming Password Account Target User Password Restrictions (default) (default) Administrator Network admin adminpass • When logged in as Administrator, administrators, you can change the password for etc. both the User and Administrator accounts (® see 4.5.2 Administrator Password).
Page 64: Controls On The Window
Section 4 Web User Interface Programming • The default ID for the Administrator account is "admin", and the default password is "adminpass". The ID cannot be changed from the Web user interface, but it can be changed through configuration file programming. The Web user interface window is displayed.
Page 65: Entering Characters
Section 4 Web User Interface Programming Button Function Save Applies changes and displays a result message (® see 4.9 Result Messages in this section). Cancel Discards changes. The settings on the current screen will return to the values they had before being changed. Refresh Updates the status information displayed on the screen.
Page 66: Status
Section 4 Web User Interface Programming 4.3 Status This section provides detailed descriptions about all the settings classified under the [Status] tab. 4.3.1 Version Information This screen allows you to view the current version information such as the model number and the firmware version of the unit.
Page 67: Network Status
Section 4 Web User Interface Programming Clicking [Refresh] updates the information displayed on the screen. 4.3.2.1 Network Status MAC Address Description Indicates the MAC address of the unit (reference only). Ethernet Link Status (LAN Port) Description Indicates the current connection status of the Ethernet LAN port (reference only).
Page 68: Default Gateway
Section 4 Web User Interface Programming Default Gateway Description Indicates the specified IP address of the default gateway for the network (reference only). Note • If the default gateway address is not specified, this field will be left blank. DNS1 Description Indicates the specified IP address of the primary DNS server (reference only).
Page 69: Voip Status
Section 4 Web User Interface Programming 4.3.3.1 VoIP Status Line No. Description Indicates the line number to which a phone number is assigned (reference only). Phone Number Description Indicates the currently assigned phone numbers (reference only). Note • The corresponding field is blank if a line has not yet been leased or if the unit has not been configured.
Page 70: Connection Mode
Section 4 Web User Interface Programming unit using the phone user interface. In addition, if the IP address of the PC from which you try to access the Web user interface has been changed, close the Web port once by selecting [Off] for [Embedded web] on the unit (®...
Page 71: Domain Name Server
Section 4 Web User Interface Programming Value Range Max. 63 characters Note • You cannot leave this field empty. • If "{MODEL}" is included in this parameter, it will be replaced with the unit’s model name. Default Value {MODEL} Domain Name Server Description Selects whether to receive DNS server addresses automatically or to assign a DNS server addresses (up to 2) manually.
Page 72: Subnet Mask
Section 4 Web User Interface Programming Subnet Mask Description Specifies the subnet mask for the unit. Note • This setting is available only when [Connection Mode] is set to [Static]. Value Range Max. 15 characters Default Value Not stored. Phone User Interface Network Settings (Page 16) Reference Default Gateway...
Page 73: Ethernet Port Settings
To access it again, you need to correct the speed/duplex settings or perform IP Reset through phone user interface programming. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). 4.4.2.1 Link Speed/Duplex Mode...
Page 74: Pc Port
Section 4 Web User Interface Programming Value Range • Auto Negotiation • 100 Mbps/Full Duplex • 100 Mbps/Half Duplex • 10 Mbps/Full Duplex • 10 Mbps/Half Duplex Default Value Auto Negotiation Phone User Interface Ethernet Settings (Page 17) Reference PC Port Description Selects the connection mode (link speed and duplex mode) of the PC port.
Page 75: Pc (Vlan Id)
Section 4 Web User Interface Programming Configuration File Reference LLDP_INTERVAL (Page 152) PC (VLAN ID) Description Specifies the VLAN ID of the PC port when the LLDP feature is enabled. Value Range 0–4094 Default Value Phone User Interface Ethernet Settings (Page 17) Reference Configuration File Reference LLDP_VLAN_ID_PC (Page 152)
Page 76: Ip Phone (Priority)
Section 4 Web User Interface Programming Phone User Interface Ethernet Settings (Page 17) Reference Configuration File Reference VLAN_ID_IP_PHONE (Page 153) IP Phone (Priority) Description Selects the priority number for the unit. Value Range 0–7 Default Value Phone User Interface Ethernet Settings (Page 17) Reference Configuration File Reference VLAN_PRI_IP_PHONE (Page 153)
Page 77: Http Client Settings
Section 4 Web User Interface Programming 4.4.3 HTTP Client Settings This screen allows you to change the HTTP client settings for the unit. Configure proxy settings as necessary, according to your network setup. The proxy server is used when accessing the HTTP server of your phone system, downloading configuration files, and when using the unit’s Web browser.
Page 78: Http Authentication
Section 4 Web User Interface Programming Value Range Max. 40 characters Note • You cannot leave this field empty. • If "{mac}" is included in this field, it will be replaced with the unit’s MAC address in lower-case. • If "{MAC}" is included in this field, it will be replaced with the unit’s MAC address in upper-case.
Page 79: Proxy Server Address
Section 4 Web User Interface Programming Proxy Server Address Description Specifies the IP address or FQDN of the proxy server. Value Range Max. 127 characters Note • You cannot leave this field empty if [Enable Proxy] is set to [Yes]. Default Value Not stored.
Page 80: Detection Interval
Section 4 Web User Interface Programming Default Value STUN Detection Interval Description Specifies the interval, in seconds, to wait between attempts to detect the global IP address. Value Range 0, 10–65535 (0: Disable) Note • When [Detection Method] is set to [SIP], the value "0" disables detection and a value other than "0"...
Page 81: Global Ip Address
Section 4 Web User Interface Programming packets might be blocked by the router, depending on the SIP server. To avoid this problem, this setting is required. For details, see 1.1.4.2 NAT (Network Address Translation) Setup. 4.4.5.1 Global IP Address Global IP Address Description Specifies the global IP address of your network.
Page 82: External Rtp Port
Section 4 Web User Interface Programming Default Value 4.4.5.3 External RTP Port Channel 1–25 Description Specifies the external RTP port number used for voice communication for each channel. Value Range 0, 1024–49150 (0: Disable, even number only) Note • Each channel must be set to a unique port number, and all port numbers must be an even number.
Page 83: Web Language
Section 4 Web User Interface Programming • The language used for the unit remains unchanged even if the language for the Web user interface is changed. 4.5.1.1 Web Language Language Description Selects the language used for the Web user interface. Value Range •...
Page 84: Change Administrator Password
Section 4 Web User Interface Programming Unauthorized"). This restriction only applies the first time you attempt to log in after changing the password. In all other circumstances, an error occurs after 3 unsuccessful login attempts. 4.5.2.1 Change Administrator Password Current Password Description Specifies the current password to use to authenticate the Administrator account when logging in to the Web user interface.
Page 85: Change User Password
Section 4 Web User Interface Programming Default Value Not stored. Phone User Interface To change the administrator password (Page 49) Reference Configuration File Reference ADMIN_PASS (Page 140) 4.5.3 Change User Password This screen allows you to change the password used to authenticate the User account when logging in to the Web user interface.
Page 86: Confirm New Password
Section 4 Web User Interface Programming Default Value Not stored. Note • When a user logs in to the Web user interface for the first time, after clicking OK on the authentication dialog box, the [Change User Password] screen is displayed automatically to make the user set a password.
Page 87: Port Close Timer
Section 4 Web User Interface Programming Default Value Note • When you change the default value of the port number to a value other than "80", such as "8080", enter the URL for accessing the Web user interface using the following format: "http://192.168.0.100:8080/"...
Page 88: Sip Setting
Section 4 Web User Interface Programming 4.6.1.1 SIP Setting SIP User Agent Description Specifies the text string to send as the user agent in the headers of SIP messages. Value Range Max. 40 characters Note • You cannot leave this field empty. •...
Page 89: Phone Number
Section 4 Web User Interface Programming 4.6.2.1 Phone Number Phone Number Description Specifies the phone number to use as the user ID required for registration to the SIP registrar server. Note • When registering using a user ID that is not a phone number, you should use the [SIP URI] setting.
Page 90: Proxy Server Address
Section 4 Web User Interface Programming Value Range 1–65535 Default Value 5060 Configuration File Reference SIP_RGSTR_PORT_n (Page 192) Proxy Server Address Description Specifies the IP address or FQDN of the SIP proxy server. Value Range Max. 127 characters Default Value Not stored.
Page 91: Outbound Proxy Server
Section 4 Web User Interface Programming 4.6.2.3 Outbound Proxy Server Outbound Proxy Server Address Description Specifies the IP address or FQDN of the SIP outbound proxy server. Value Range Max. 127 characters Default Value Not stored. Configuration File Reference SIP_OUTPROXY_ADDR_n (Page 204) Outbound Proxy Server Port Description Specifies the port number to use for communication with the SIP...
Page 92: Sip Authentication
Section 4 Web User Interface Programming Value Range 1024–49151 Note • You cannot specify here the same port number as any of the port numbers in [Channel 1–25] in 4.4.5.3 External RTP Port (if they are configured). In addition, you cannot specify a port number that is 1 greater than a port number specified in [Channel 1–25].
Page 93: Srv Lookup Prefix For Udp
Section 4 Web User Interface Programming Value Range • • Note • If you select [Yes], the unit will perform a DNS SRV lookup for a SIP registrar server, SIP proxy server, SIP outbound proxy server, or SIP presence server. If you select [No], the unit will not perform a DNS SRV lookup for a SIP registrar server, SIP proxy server, SIP outbound proxy server, or SIP presence server.
Page 94: Timer Settings
Section 4 Web User Interface Programming Value Range • • Default Value Configuration File Reference SIP_TRANSPORT_n (Page 205) 4.6.2.9 Timer Settings T1 Timer Description Selects the default interval, in milliseconds, between transmissions of SIP messages. For details, refer to RFC 3261. Value Range •...
Page 95: Timer D
Section 4 Web User Interface Programming Timer D Description Specifies the value of SIP timer D (wait time for answer resending), in milliseconds. For details, refer to RFC 3261. Value Range 0, 250–64000 Default Value 5000 Configuration File Reference SIP_TIMER_D_n (Page 207) Timer F Description Specifies the value of SIP timer F (non-INVITE transaction timeout...
Page 96: Sip Extensions
Section 4 Web User Interface Programming Default Value Configuration File Reference DSCP_SIP_n (Page 193) 4.6.2.11 SIP extensions Supports 100rel (RFC 3262) Description Selects whether to add the option tag 100rel to the "Supported" header of the INVITE message. For details, refer to RFC 3262. Value Range •...
Page 97: Supports Rport (Rfc 3581)
Section 4 Web User Interface Programming Supports Rport (RFC 3581) Description Selects whether to add the "rport" parameter to the top Via header field value of requests generated. For details, refer to RFC 3581. Value Range • • Default Value Configuration File Reference SIP_ADD_RPORT_n (Page 201) 4.6.2.13 Security...
Page 98: Voip Settings
Section 4 Web User Interface Programming 4.6.3 VoIP Settings This screen allows you to change the VoIP settings that are common to all lines. 4.6.3.1 RTP Settings RTP Packet Time Description Selects the interval, in milliseconds, between transmissions of RTP packets.
Page 99: Maximum Rtp Port Number
Section 4 Web User Interface Programming Value Range 1024–48750 (even number only) Note • The value for this setting must be less than or equal to "[Maximum RTP Port Number] - 400". • Changing this setting may affect the number of simultaneous calls that can be made.
Page 100: Voip Settings [Line 1]-[Line 6]
Section 4 Web User Interface Programming 4.6.4 VoIP Settings [Line 1]–[Line 6] This screen allows you to change the VoIP settings that are specific to each line. 4.6.4.1 Quality of Service (QoS) RTP Packet QoS (DSCP) Description Selects the DSCP level of DiffServ applied to RTP packets. Value Range 0–63 Default Value...
Page 101: Statistical Information
Section 4 Web User Interface Programming 4.6.4.2 Statistical Information RTCP Enable Description Selects whether to enable or disable RTCP (Real-Time Transport Control Protocol). For details, refer to RFC 3550. • Value Range • Default Value Configuration File Reference RTCP_ENABLE_n (Page 181) RTCP Interval Description Specifies the interval, in seconds, between RTCP packets.
Page 102: Initial Delay
Section 4 Web User Interface Programming Value Range 1 or 2 (´ 10 ms) Note • This setting is subject to the following conditions: – This value must be less than or equal to [Initial Delay] – This value must be less than [Maximum Delay] –...
Page 103: Call Hold
Section 4 Web User Interface Programming Value Range • • Note • If you select [Yes], DTMF tones will be sent in the SIP INFO message. If you select [No], the method selected in [DTMF Type] will be used. Default Value Configuration File Reference DTMF_RELAY_n (Page 183) 4.6.4.5 Call Hold...
Page 104: Pcma (Enable)
Section 4 Web User Interface Programming PCMA (Enable) Description Selects whether to enable the PCMA codec for voice data transmission. Value Range • • Default Value Configuration File Reference CODEC_ENABLEx_n (Page 177) PCMA (Priority) Description Specifies the numerical order usage priority for the PCMA codec. Value Range 1–255 Default Value...
Page 105: Pcmu (Priority)
Section 4 Web User Interface Programming PCMU (Priority) Description Specifies the numerical order usage priority for the PCMU codec. Value Range 1–255 Default Value Configuration File Reference CODEC_PRIORITYx_n (Page 177) 4.7 Telephone This section provides detailed descriptions about all the settings classified under the [Telephone] tab. 4.7.1 Call Control This screen allows you to configure various call features that are common to all lines.
Page 106: Conference Server Uri
Section 4 Web User Interface Programming Default Value Configuration File Reference VM_SUBSCRIBE_ENABLE (Page 159) Conference Server URI Description Specifies the URI for a conference server, which consists of "sip:", a user part, the "@" symbol, and a host part, for example, "sip:conference@example.com".
Page 107: Country Calling Code
Section 4 Web User Interface Programming Default Value Not stored. Configuration File Reference INTERNATIONAL_ACCESS_CODE (Page 161) Country Calling Code Description Specifies the country/area calling code to be used for comparative purposes when dialing a number from the incoming call log that contains a "+"...
Page 108: Flash Hook Event
Section 4 Web User Interface Programming Flash Hook Event Description Specifies the type of signal sent when sending a flash hook event. Value Range • Signal • flashhook Default Value Signal Configuration File Reference FLASHHOOK_CONTENT_TYPE (Page 188) Directed Call Pickup Description Specifies the feature number assigned to a BLF for performing call pickup.
Page 109: Call Control [Line 1]-[Line 6]
Section 4 Web User Interface Programming 4.7.2 Call Control [Line 1]–[Line 6] This screen allows you to configure various call features that are specific to each line. 4.7.2.1 Call Control Display Name Description Specifies the name to display as the caller on the other party’s phone when you make a call.
Page 110: Enable Shared Call
Section 4 Web User Interface Programming Enable Shared Call Description Selects whether to enable the Shared Call feature of the SIP server, which is used to share one line among the units. Note • You cannot set both [Enable Shared Call] and [Synchronize Do Not Disturb and Call Forward] to [Yes] at the same time.
Page 111: Resource List Uri
Section 4 Web User Interface Programming Resource List URI Description Specifies the Uniform Resource Identifier string for the resource list, which consists of "sip:", a user part, the "@" symbol, and a host part, for example, "sip:user@example.com". For details, refer to RFC 4662. Note •...
Page 112: Call Features
Section 4 Web User Interface Programming Value Range • • Note • If you select [Yes], calls will be made even if the dialed number does not match the dial formats specified in [Dial Plan] (i.e., dial plan filtering is disabled). If you select [No], calls will not be made if the dialed number does not match one of the dial formats specified in [Dial Plan] (i.e., dial plan filtering is enabled).
Page 113: Do Not Disturb
Section 4 Web User Interface Programming Do Not Disturb Description Selects whether to enable the Do Not Disturb feature for incoming calls. Note • If Do Not Disturb has been enabled on the server, the server rejects incoming calls and the unit does not receive any calls, even if you have selected [No] for this setting.
Page 114: Unconditional (Phone Number)
Section 4 Web User Interface Programming Unconditional (Phone Number) Description Specifies the phone number of the destination to forward all incoming calls to. Note • If you change this setting when [Synchronize Do Not Disturb and Call Forward] is set to [Yes], the change to this setting is not immediately applied on this screen.
Page 115: Busy (Phone Number)
Section 4 Web User Interface Programming Busy (Phone Number) Description Specifies the phone number of the destination to forward calls to when the line is in use. Note • If you change this setting when [Synchronize Do Not Disturb and Call Forward] is set to [Yes], the change to this setting is not immediately applied on this screen.
Page 116: No Answer (Phone Number)
Section 4 Web User Interface Programming No Answer (Phone Number) Description Specifies the phone number of the destination to forward calls to when a call is not answered after it has rung a specified number of times. Note • If you change this setting when [Synchronize Do Not Disturb and Call Forward] is set to [Yes], the change to this setting is not immediately applied on this screen.
Page 117: Tone Settings
Section 4 Web User Interface Programming 4.7.3 Tone Settings This screen allows you to configure the dual-tone frequencies and ringtone patterns of each tone. 4.7.3.1 Dial Tone Tone Frequencies Description Specifies the dual-tone frequencies, in hertz, of dial tones using 2 whole numbers separated by a comma.
Page 118: Busy Tone
Section 4 Web User Interface Programming Value Range 0–16000 (0: Infinite time) Note • The unit will not play the tone for the duration of the first value, play it for the duration of the second value, stop it for the duration of the third value, play it again for the duration of the fourth value, and so on.
Page 119: Tone Timings
Section 4 Web User Interface Programming Value Range 0, 200–2000 (0: No tone) Default Value 440,480 Configuration File Reference RINGBACK_TONE_FRQ (Page 169) Tone Timings Description Specifies the pattern, in milliseconds, of ringback tones using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas. Note •...
Page 120: Reorder Tone
Section 4 Web User Interface Programming 4.7.3.5 Reorder Tone Tone Frequencies Description Specifies the dual-tone frequencies, in hertz, of reorder tones using 2 whole numbers separated by a comma. Value Range 0, 200–2000 (0: No tone) Default Value 480,620 Configuration File Reference REORDER_TONE_FRQ (Page 169) Tone Timings Description...
Page 121: Number Matching Upper Digit
Section 4 Web User Interface Programming Value Range 0–15 Default Value Configuration File Reference NUMBER_MATCHING_LOWER_DIGIT (Page 172) Number Matching Upper Digit Description Specifies the maximum number of digits with which to match a phonebook entry with an incoming call’s caller ID. To specify exact matching of entire numbers only, specify "0".
Page 122: Firmware File Url
Section 4 Web User Interface Programming Value Range • • Default Value Configuration File Reference FIRM_UPGRADE_ENABLE (Page 143) Firmware File URL Description Specifies the URL where the firmware file is stored. Note • This setting is available only when [Enable Firmware Update] is set to [Yes].
Page 123: Provisioning Maintenance
Section 4 Web User Interface Programming 4.8.2.1 Provisioning Maintenance Enable Provisioning Description Selects whether the unit is automatically configured by downloading the configuration files from the provisioning server of your phone system. • Value Range • Default Value Configuration File Reference PROVISION_ENABLE (Page 145) Standard File URL Description...
Page 124: Master File Url
Section 4 Web User Interface Programming Master File URL Description Specifies the URL of the master configuration file, which is used when all units need the same settings. Note • When you change this setting, set [Enable Provisioning] to [Yes] at the same time. Value Range Max.
Page 125: Reset To Defaults
Section 4 Web User Interface Programming Value Range Max. 15 characters Note • You cannot leave this field empty. Default Value check-sync Configuration File Reference CFG_RESYNC_FROM_SIP (Page 151) 4.8.3 Reset to Defaults This screen allows you to reset the settings made through the Web user interface to their default values by clicking [Reset Web Settings].
Page 126: Result Messages
Section 4 Web User Interface Programming 4.9 Result Messages When you click [Save] after changing the settings on the current configuration screen, one of the following messages will appear in the upper-left area of the current configuration screen: Result Message Description Applicable Screens Complete...
Page 127: Configuration File Programming
Section 5 Configuration File Programming This section provides information about the configuration parameters used in the configuration files. Document Version 2012-07 Administrator Guide...
Page 128: Configuration File Parameter List
Section 5 Configuration File Programming 5.1 Configuration File Parameter List The following tables show all the parameters that can be programmed using configuration file programming. For details about each parameter, see the reference pages listed. System Settings Category Parameter Name Ref.
Page 129: Network Settings
Section 5 Configuration File Programming Network Settings Category Parameter Name Ref. Ethernet Port Settings Page 151 LLDP_ENABLE Page 152 LLDP_INTERVAL Page 152 LLDP_VLAN_ID_PC Page 152 LLDP_VLAN_PRI_PC Page 152 VLAN_ENABLE Page 153 VLAN_ID_IP_PHONE Page 153 VLAN_PRI_IP_PHONE Page 154 VLAN_ID_PC Page 154 VLAN_PRI_PC HTTP Settings HTTPD_PORTOPEN_AUTO...
Page 130 Section 5 Configuration File Programming Category Parameter Name Ref. Page 160 INTDIGIT_TIM Page 160 MACRODIGIT_TIM Page 161 INTERNATIONAL_ACCESS_CODE Page 161 COUNTRY_CALLING_CODE Page 161 NATIONAL_ACCESS_CODE Page 161 DEFAULT_LINE_SELECT DATA_LINE_MODE Page 162 Page 162 NUM_PLAN_PICKUP_DIRECT TALK_PACKAGE Page 162 HOLD_PACKAGE Page 162 HOLD_RECALL_TIM Page 163 AUTO_ANS_RING_TIM Page 163...
Page 131 Section 5 Configuration File Programming Category Parameter Name Ref. Page 169 REORDER_TONE_FRQ REORDER_TONE_GAIN Page 169 Page 169 REORDER_TONE_TIMING Page 169 RINGBACK_TONE_FRQ RINGBACK_TONE_GAIN Page 170 Page 170 RINGBACK_TONE_TIMING HOLD_ALARM_FRQ Page 170 HOLD_ALARM_GAIN Page 170 HOLD_ALARM_TIMING Page 170 CW_TONE1_FRQ Page 171 CW_TONE1_GAIN Page 171 CW_TONE1_TIMING Page 171...
Page 132: Line Settings
Section 5 Configuration File Programming VoIP Settings Category Parameter Name Ref. Codec Settings CODEC_G711_REQ Page 176 CODEC_G729_PARAM Page 177 Page 177 CODEC_ENABLEx_n Page 177 CODEC_PRIORITYx_n RTP Settings Page 178 DSCP_RTP_n Page 178 DSCP_RTCP_n Page 179 RTCP_INTVL_n Page 179 MAX_DELAY_n Page 179 MIN_DELAY_n Page 180 NOM_DELAY_n...
Page 133 Section 5 Configuration File Programming Category Parameter Name Ref. Page 186 FWD_DND_SYNCHRO_ENABLE_n Page 187 RESOURCELIST_URI_n CW_ENABLE_n Page 187 Page 187 FLASH_RECALL_TERMINATE Page 188 FLASHHOOK_CONTENT_TYPE VOICE_MESSAGE_AVAILABLE Page 188 SIP Settings Page 188 SIP_USER_AGENT Page 189 PHONE_NUMBER_n Page 189 SIP_URI_n LINE_ENABLE_n Page 189 PROFILE_ENABLEn Page 190 Page 190...
Page 134 Section 5 Configuration File Programming Category Parameter Name Ref. SIP_REFRESHER_n Page 197 Page 197 SIP_DNSSRV_ENA_n Page 197 SIP_UDP_SRV_PREFIX_n Page 198 SIP_TCP_SRV_PREFIX_n Page 198 SIP_100REL_ENABLE_n SIP_INVITE_EXPIRE_n Page 198 SIP_18X_RTX_INTVL_n Page 199 Page 199 SIP_PRSNC_ADDR_n Page 199 SIP_PRSNC_PORT_n SIP_2NDPRSNC_ADDR_n Page 200 SIP_2NDPRSNC_PORT_n Page 200 USE_DEL_REG_OPEN_n Page 200...
Page 135: General Information On The Configuration Files
Comment lines that start with "#" • Configuration files must start with a comment line containing the following designated character sequence (44 bytes): # Panasonic SIP Phone Standard Format File # The hexadecimal notation of this sequence is: Document Version 2012-07 Administrator Guide...
Page 136: Configuration File Parameters
To prevent the designated character sequence being altered by chance, it is recommended that the configuration file starts with the comment line shown below: # Panasonic SIP Phone Standard Format File # DO NOT CHANGE THIS LINE! • Configuration files must end with an empty line.
Page 137: Characters Available For String Values
Available ASCII characters are shown on a white background in the following table: 5.3 Configuration File Examples The following examples of configuration files are provided on the Panasonic Web site (® see Introduction). • Simplified Example of the Configuration File •...
Page 138: Examples Of Codec Settings
The following listing shows an example of a configuration file that contains incorrect formatting: An improper description is entered in the first line. A configuration file must start with the designated character sequence "# Panasonic SIP Phone Standard Format File #". Administrator Guide...
Page 139: Incorrect Example
Section 5 Configuration File Programming Comment lines start in the middle of the lines. Space characters are inserted in the middle of the setting line. A specified value is not in the range allowed for that setting. Incorrect Example # This is a simplified sample configuration file. ############################################################ # Configuration Setting # ############################################################...
Page 140: System Settings
Section 5 Configuration File Programming 5.4 System Settings 5.4.1 Login Account Settings ADMIN_ID Value Format String Description Specifies the account ID used to access the Web user interface with the Administrator account. Value Range Max. 16 characters (except ", &, ', :, <, >, and space) Note •...
Page 141: System Time Settings
Section 5 Configuration File Programming Description Specifies the password to use to authenticate the User account when logging in to the Web user interface. Value Range 6–16 characters (except ", &, ', :, <, >, and space) Default Value Empty string (only before a user accesses the Web user interface for the first time) Web User Interface Reference •...
Page 142 Section 5 Configuration File Programming Value Range -110001–130001 Note • Only the following values are available: -110001 (Midway Island [GMT-11:00]), -100001 (Hawaii [GMT-10:00]), -90001 (Gambier [GMT-9:00]), -90002 (Alaska [GMT-9:00]), -80001 (Tijuana [GMT-8:00]), -80002 (Pacific Time [GMT-8:00]), -70001 (Chihuahua [GMT-7:00]), -70002 (Mountain Time [GMT-7:00]), -70003 (Arizona [GMT-7:00]), -60001 (Saskatchewan [GMT-6:00]), -60002 (Mexico City [GMT-6:00]), -60003 (Central Time [GMT-6:00]), -60004...
Page 143: Syslog Settings
Section 5 Configuration File Programming Default Value 1 (Casablanca [GMT+0:00]) 5.4.3 Syslog Settings SYSLOG_ADDR Value Format String Description Specifies the IP address or FQDN of the syslog server. Value Range Max. 127 characters (IP address in dotted-decimal notation or FQDN) Default Value Empty string SYSLOG_PORT...
Page 144: Firm_File_Path
Section 5 Configuration File Programming Description Specifies the firmware version of the unit. Note • Changing this setting may require restarting the unit. Value Range 00.000–15.999 Default Value Empty string FIRM_FILE_PATH Value Format String Description Specifies the URL where the firmware file is stored. Note •...
Page 145: Provision_Enable
Section 5 Configuration File Programming Description Specifies whether to enable the unit to look for option 66 to receive the TFTP server address or FQDN from the DHCP server. Note • The unit will try to download configuration files through the TFTP server, the IP address or FQDN of which is specified in the option number 66 field.
Page 146: Cfg_Product_File_Path
Section 5 Configuration File Programming Value Range Max. 500 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>" – "<user>" must be less than 128 characters. – "<password>" must be less than 128 characters. – "<user>:<password>@" may be empty. –...
Page 147: Cfg_Master_File_Path
Section 5 Configuration File Programming Value Range Max. 500 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>" – "<user>" must be less than 128 characters. – "<password>" must be less than 128 characters. – "<user>:<password>@" may be empty. –...
Page 148: Cfg_File_Key1
Section 5 Configuration File Programming Value Range Max. 500 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>" – "<user>" must be less than 128 characters. – "<password>" must be less than 128 characters. – "<user>:<password>@" may be empty. –...
Page 149: Cfg_File_Key2
Section 5 Configuration File Programming CFG_FILE_KEY2 Value Format String Description Specifies the encryption key (password) used to decrypt configuration files. Note • If the extension of the configuration file is ".e2c", the configuration file will be decrypted using this key. Value Range 32-byte characters Note...
Page 150: Cfg_Cyclic_Intvl
Section 5 Configuration File Programming Description Specifies whether the unit periodically checks for updates of configuration files. Value Range • Y (Enable periodic synchronization of configuration files) • N (Disable periodic synchronization of configuration files) Default Value Web User Interface Reference Cyclic Auto Resync (Page 124) CFG_CYCLIC_INTVL Value Format...
Page 151: Cfg_Resync_From_Sip
Section 5 Configuration File Programming Value Range 00:00–23:59 Note • If the value for this setting is any valid value other than an empty string, the unit downloads the configuration files at the fixed time, and the settings specified in "CFG_CYCLIC", "CFG_CYCLIC_INTVL", and "CFG_RTRY_INTVL"...
Page 152: Lldp_Interval
Section 5 Configuration File Programming Web User Interface Reference LLDP (Page 74) LLDP_INTERVAL Value Format Integer Description Specifies the interval, in seconds, between sending each LLDP frame. Value Range 1–3600 Default Value Phone User Interface Ethernet Settings (Page 17) Reference Web User Interface Reference LLDP-MED Interval timer (Page 74) LLDP_VLAN_ID_PC...
Page 153: Vlan_Id_Ip_Phone
Section 5 Configuration File Programming Description Specifies whether to use the VLAN feature to perform VoIP communication securely. Note • This setting is available only when "NW_SETTING_ENABLE" is set to "N". • If this setting is configured through phone user interface programming, changes via configuration file programming are ignored.
Page 154: Vlan_Id_Pc
Section 5 Configuration File Programming Value Range 0–7 Default Value Phone User Interface Ethernet Settings (Page 17) Reference Web User Interface Reference IP Phone (Priority) (Page 76) VLAN_ID_PC Value Format Integer Description Specifies the VLAN ID for the PC. Note •...
Page 155: Http_Ver
Section 5 Configuration File Programming Description Specifies whether the unit’s Web port is always open. Value Range • Y (Web port is always open) • N (Web port is closed [can be opened temporarily through phone user interface programming]) Notice •...
Page 156: Http_Ssl_Verify
Section 5 Configuration File Programming Default Value Panasonic_{MODEL}/{fwver} ({mac}) Web User Interface Reference HTTP User Agent (Page 77) HTTP_SSL_VERIFY Value Format Integer Description Specifies whether to enable the verification of the root certificate. Value Range • 0 (No verification of root certificate) •...
Page 157: Time Adjust Settings
Section 5 Configuration File Programming 5.5.3 Time Adjust Settings NTP_ADDR Value Format String Description Specifies the IP address or FQDN of the NTP server. Note • If NTP settings are performed via the unit, this setting is disabled. Value Range Max.
Page 158: Stun_Serv_Port
Section 5 Configuration File Programming Value Range Max. 127 characters (IP address in dotted-decimal notation or FQDN) Default Value Empty string Web User Interface Reference STUN Server Address (Page 80) STUN_SERV_PORT Value Format Integer Description Specifies the port number of the STUN server. Value Range 1–65535 Default Value...
Page 159: Custom_Web_Page
Section 5 Configuration File Programming Description Specifies whether to enable network and NTP server settings from the unit. Note • If you change this setting to "N" when network or NTP server settings have been made through Web user interface programming (®...
Page 160: Conference_Server_Uri
Section 5 Configuration File Programming CONFERENCE_SERVER_URI Value Format String Description Specifies the URI for a conference server, which consists of "sip:", a user part, the "@" symbol, and a host part, for example, "sip:conference@example.com". Note • In a SIP URI, the user part ("conference" in the example above) can contain up to 63 characters, and the host part ("example.com"...
Page 161: International_Access_Code
Section 5 Configuration File Programming Default Value Web User Interface Reference Timer for Dial Plan (Page 106) INTERNATIONAL_ACCESS_CODE Value Format String Description Specifies the number to be shown in the place of the first "+" symbol when the phone number for incoming international calls contains "+". Value Range Max.
Page 162: Data_Line_Mode
Section 5 Configuration File Programming Value Range 1–6 Default Value Web User Interface Reference Default Line for Outgoing (Page 107) DATA_LINE_MODE Value Format Boolean Description Specifies whether to enable sending and receiving using data line mode. Value Range • Y (Enable Data Line Mode) •...
Page 163: Hold_Recall_Tim
Section 5 Configuration File Programming Description Specifies whether to enable the Click to Hold function. Note • When this parameter is set to "Y", "hold" is added to the Allow-Events header. • Value Range Y (Enable Hold Package) • N (Disable Hold Package) Default Value HOLD_RECALL_TIM Value Format...
Page 164: Redialkey_Calllog_Enable
Section 5 Configuration File Programming Value Range • Y (Enable Auto Call Hold) • N (Disable Auto Call Hold) Default Value REDIALKEY_CALLLOG_ENABLE Value Format Boolean Description Specifies whether the call log is displayed when [Redial] is tapped while on-hook. Value Range •...
Page 165: Tone_Len_Disconnect_Handsfree
• This setting does not affect the iWnn IME Keyboard. For details about available keyboards, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). • If touch tones or selection tones are configured through phone user interface programming, changes to this setting are ignored.
Page 166: Tone Settings
Section 5 Configuration File Programming 5.6.2 Tone Settings DIAL_TONE1_FRQ Value Format Comma-separated Integer Description Specifies the dual-tone frequencies, in hertz, of Dial Tone 1 using 2 whole numbers separated by a comma. Value Range 0, 200–2000 (0: No tone) Default Value 350,440 Web User Interface Reference Tone Frequencies (Page 117)
Page 167: Dial_Tone2_Gain
Section 5 Configuration File Programming DIAL_TONE2_GAIN Value Format Integer Description Specifies the gain, in decibels, of Dial Tone 2. Value Range -24–6 Default Value DIAL_TONE2_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of Dial Tone 2 using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas.
Page 168: Busy_Tone_Frq
Section 5 Configuration File Programming Description Specifies the pattern, in milliseconds, of Dial Tone 4 (stutter dial tones) to notify that a voice mail is waiting, using up to 22 whole numbers (off 1, on 1, off 2, on 2…) separated by commas. Note •...
Page 169: Reorder_Tone_Frq
Section 5 Configuration File Programming REORDER_TONE_FRQ Value Format Comma-separated Integer Description Specifies the dual-tone frequencies, in hertz, of reorder tones using 2 whole numbers separated by a comma. Value Range 0, 200–2000 (0: No tone) Default Value 480,620 Web User Interface Reference Tone Frequencies (Page 120) REORDER_TONE_GAIN Value Format...
Page 170: Ringback_Tone_Gain
Section 5 Configuration File Programming RINGBACK_TONE_GAIN Value Format Integer Description Specifies the gain, in decibels, of the ringback tone. Value Range -24–6 Default Value RINGBACK_TONE_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of ringback tones using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas.
Page 171: Cw_Tone1_Frq
Section 5 Configuration File Programming Value Range 0–16000 (0: Infinite time) Default Value 120,14880 CW_TONE1_FRQ Value Format Comma-separated Integer Description Specifies the dual-tone frequencies, in hertz, of call waiting tone 1 using 2 whole numbers separated by a comma. Value Range 0, 200–2000 (0: No tone) Default Value CW_TONE1_GAIN...
Page 172: Hold_Tone_Timing
Section 5 Configuration File Programming Value Range -24–6 Default Value HOLD_TONE_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of the hold tone using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas. Note •...
Page 173: Display_Date_Pattern
Section 5 Configuration File Programming Description Specifies the maximum number of digits with which to match a phonebook entry with an incoming call’s caller ID. To specify exact matching of entire numbers only, specify "0" for this parameter and "NUMBER_MATCHING_LOWER_DIGIT". Value Range 0–15 Default Value...
Page 174: Pound_Key_Delimiter_Enable
Section 5 Configuration File Programming Description Selects the language to use for the menus and display items on the phone. Note • If the language locale is configured through phone user interface programming, changes to this setting are ignored. Value Range Only the following values are available: •...
Page 175: Logo_Uri_Phone
Section 5 Configuration File Programming Description Specifies the URI of the wallpaper of the unit’s Phone screen. Note • Only a JPEG, PNG, or GIF format file that is 5 MB or less can be used. (BMP format files cannot be used.) Value Range Max.
Page 176: Flex_Button_Labelx
X_PANASONIC_IPTEL_HEADSET: not available – X_PANASONIC_IPTEL_CONTACT: 1–32 digit number – X_PANASONIC_IPTEL_ONETOUCH: 1–32 digit number For details about flexible buttons, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). Default Value FLEX_BUTTON_LABELx Value Format String Description Specifies the message to be displayed on the screen when the flexible button is pressed.
Page 177: Codec_G729_Param
Section 5 Configuration File Programming CODEC_G729_PARAM Value Format Integer Description Specifies whether to add an attribute line, "a=fmtp:18 annexb=no", to SDP when "CODEC_ENABLEx_n" is set to "G729A". Value Range • 0 (Do not add "a=fmtp:18 annexb=no") • 1 (Add "a=fmtp:18 annexb=no") Default Value CODEC_ENABLEx_n Parameter Name Example...
Page 178: Rtp Settings
Section 5 Configuration File Programming Description Specifies the priority order for the codec. Note • The "x" character in the parameter title should be changed to one of the following numbers, according to the codec to be changed. – 0: G.722 –...
Page 179: Rtcp_Intvl_N
Section 5 Configuration File Programming RTCP_INTVL_n Parameter Name Example RTCP_INTVL_1, RTCP_INTVL_2, …, RTCP_INTVL_6 Value Format Integer Description Specifies the interval, in seconds, between RTCP packets. Value Range 5–65535 Default Value Web User Interface Reference RTCP Interval (Page 101) MAX_DELAY_n Parameter Name Example MAX_DELAY_1, MAX_DELAY_2, …, MAX_DELAY_6 Value Format Integer...
Page 180: Nom_Delay_N
Section 5 Configuration File Programming NOM_DELAY_n Parameter Name Example NOM_DELAY_1, NOM_DELAY_2, …, NOM_DELAY_6 Value Format Integer Description Specifies the initial delay, in 10-millisecond units, of the jitter buffer. Value Range 1–7 (´ 10 ms) Note • This setting is subject to the following conditions: –...
Page 181: Rtp_Ptime
Section 5 Configuration File Programming Description Specifies the highest port number that the unit will use for RTP packets. Note • If port numbers are specified in [Channel 1–25] in 4.4.5.3 External RTP Port in the Web user interface, this setting is ignored and the corresponding external RTP port is enabled.
Page 182: Rtcp_Send_By_Sdp_N
Section 5 Configuration File Programming RTCP_SEND_BY_SDP_n Parameter Name Example RTCP_SEND_BY_SDP_1, RTCP_SEND_BY_SDP_2, …, RTCP_SEND_BY_SDP_6 Value Format Integer Description Specifies whether to send RTCP signals by SDP (Session Description Protocol). Value Range 0–1 – 0: Send RTCP signals using the value specified in "RTCP_INTVL_n", if the "RTCP_ENABLE_n"...
Page 183: Dtmf_Relay_N
Section 5 Configuration File Programming DTMF_RELAY_n Parameter Name Example DTMF_RELAY_1, DTMF_RELAY_2, ..., DTMF_RELAY_6 Value Format Boolean Description Selects whether DTMF tones are sent in the SIP INFO message. Value Range • • Note • If set to "Y", DTMF tones will be sent in the SIP INFO message. •...
Page 184: Dtmf_Signal_Len
Section 5 Configuration File Programming Web User Interface Reference Supports RFC 2543 (c=0.0.0.0) (Page 103) DTMF_SIGNAL_LEN Value Format Integer Description Specifies the length of the DTMF signal, in milliseconds. Value Range 60–200 (in 5 millisecond units) Default Value DTMF_INTDIGIT_TIM Value Format Integer Description Specifies the interval, in milliseconds, between DTMF signals.
Page 185: Dial_Plan_N
Section 5 Configuration File Programming Description Specifies the phone number used to access the voice mail server. Note • Your phone system must support voice mail. Value Range Max. 32 characters Default Value Empty string Web User Interface Reference Voice Mail Access Number (Page 109) DIAL_PLAN_n Parameter Name Example DIAL_PLAN_1, DIAL_PLAN_2, …, DIAL_PLAN_6...
Page 186: Shared_Call_Enable_N
Section 5 Configuration File Programming SHARED_CALL_ENABLE_n Parameter Name Example SHARED_CALL_ENABLE_1, SHARED_CALL_ENABLE_2, ..., SHARED_CALL_ENABLE_6 Value Format Boolean Description Specifies whether to enable the Shared Call feature of the SIP server, which is used to share one line among the units. Note •...
Page 187: Resourcelist_Uri_N
Section 5 Configuration File Programming RESOURCELIST_URI_n Parameter Name Example RESOURCELIST_URI_1, RESOURCELIST_URI_2, …, RESOURCELIST_URI_6 Value Format String Description Specifies the Uniform Resource Identifier string for the resource list, which consists of "sip:", a user part, the "@" symbol, and a host part, for example, "sip:user@example.com".
Page 188: Flashhook_Content_Type
Section 5 Configuration File Programming FLASHHOOK_CONTENT_TYPE Value Format String Description Specifies the type of signal sent when sending a flash hook event. • Value Range Signal • flashhook Default Value Signal Web User Interface Reference Flash Hook Event (Page 108) VOICE_MESSAGE_AVAILABLE Value Format Boolean...
Page 189: Phone_Number_N
Section 5 Configuration File Programming PHONE_NUMBER_n Parameter Name Example PHONE_NUMBER_1, PHONE_NUMBER_2, …, PHONE_NUMBER_6 Value Format String Description Specifies the phone number to use as the user ID required for registration to the SIP registrar server. Note • When registering using a user ID that is not a phone number, you should use the "SIP_URI_n"...
Page 190: Profile_Enablen
Section 5 Configuration File Programming Value Range • Disabled • Enabled Default Value Enabled PROFILE_ENABLEn Parameter Name Example PROFILE_ENABLE1, PROFILE_ENABLE2, …, PROFILE_ENABLE6 Value Format String Description Specifies whether a line is enabled or disabled. Note • Even when this parameter is enabled, if the "LINE_ENABLE_n"...
Page 191: Sip_Src_Port_N
Section 5 Configuration File Programming SIP_SRC_PORT_n Parameter Name Example SIP_SRC_PORT_1, SIP_SRC_PORT_2, …, SIP_SRC_PORT_6 Value Format Integer Description Specifies the source port number used by the unit for SIP communication. Value Range 1024–49151 Default Value 5060 (for SIP_SRC_PORT_1) 5070 (for SIP_SRC_PORT_2) 5080 (for SIP_SRC_PORT_3) 5090 (for SIP_SRC_PORT_4) 5100 (for SIP_SRC_PORT_5)
Page 192: Sip_Rgstr_Port_N
Section 5 Configuration File Programming Description Specifies the IP address or FQDN of the SIP registrar server. Value Range Max. 127 characters (IP address in dotted-decimal notation or FQDN) Default Value Empty string Web User Interface Reference Registrar Server Address (Page 89) SIP_RGSTR_PORT_n Parameter Name Example SIP_RGSTR_PORT_1, SIP_RGSTR_PORT_2, …,...
Page 193: Reg_Interval_Rate_N
Section 5 Configuration File Programming REG_INTERVAL_RATE_n Parameter Name Example REG_INTERVAL_RATE_1, REG_INTERVAL_RATE_2, …, REG_INTERVAL_RATE_6 Value Format Integer Description Specifies the percentage of the "expires" value after which to refresh registration by sending a new REGISTER message in the same dialog. Value Range 1–100 Default Value SIP_SESSION_TIME_n...
Page 194: Sip_2Ndproxy_Addr_N
Section 5 Configuration File Programming Default Value Web User Interface Reference SIP Packet QoS (DSCP) (Page 95) SIP_2NDPROXY_ADDR_n Parameter Name Example SIP_2NDPROXY_ADDR_1, SIP_2NDPROXY_ADDR_2, …, SIP_2NDPROXY_ADDR_6 Value Format String Description Specifies the IP address of the secondary SIP proxy server. Note •...
Page 195: Sip_2Ndrgstr_Port_N
Section 5 Configuration File Programming SIP_2NDRGSTR_PORT_n Parameter Name Example SIP_2NDRGSTR_PORT_1, SIP_2NDRGSTR_PORT_2, …, SIP_2NDRGSTR_PORT_6 Value Format Integer Description Specifies the port number to use for communication with the secondary SIP registrar server. Value Range 1–65535 Default Value 5060 SIP_TIMER_T1_n Parameter Name Example SIP_TIMER_T1_1, SIP_TIMER_T1_2, …, SIP_TIMER_T1_6 Value Format Integer...
Page 196: Sip_Timer_T4_N
Section 5 Configuration File Programming SIP_TIMER_T4_n Parameter Name Example SIP_TIMER_T4_1, SIP_TIMER_T4_2, …, SIP_TIMER_T4_6 Value Format Integer Description Specifies the maximum period, in seconds, that a message can remain on the network. Value Range • • • • • • Default Value SIP_FOVR_NORSP_n Parameter Name Example SIP_FOVR_NORSP_1, SIP_FOVR_NORSP_2, …,...
Page 197: Sip_Refresher_N
Section 5 Configuration File Programming SIP_REFRESHER_n Parameter Name Example SIP_REFRESHER_1, SIP_REFRESHER_2, …, SIP_REFRESHER_6 Value Format Integer Description Specifies whether to add the refresher parameter for Session Expire in SIP INVITE. Value Range 0–2 – 0: Do not add the refresher parameter –...
Page 198: Sip_Tcp_Srv_Prefix_N
Section 5 Configuration File Programming Value Range Max. 32 characters Default Value _sip._udp. Web User Interface Reference SRV lookup Prefix for UDP (Page 93) SIP_TCP_SRV_PREFIX_n Parameter Name Example SIP_TCP_SRV_PREFIX_1, SIP_TCP_SRV_PREFIX_2, …, SIP_TCP_SRV_PREFIX_6 Value Format String Description Specifies a prefix to add to the domain name when performing a DNS SRV lookup using TCP.
Page 199: Sip_18X_Rtx_Intvl_N
Section 5 Configuration File Programming Value Format Integer Description Specifies the period, in seconds, in which the INVITE message will expire. This value is set in the "Expires" header of the INVITE request. Value Range 0, 60–65535 (0: Disable) Default Value SIP_18X_RTX_INTVL_n Parameter Name Example SIP_18X_RTX_INTVL_1, SIP_18X_RTX_INTVL_2, …,...
Page 200: Sip_2Ndprsnc_Addr_N
Section 5 Configuration File Programming SIP_2NDPRSNC_ADDR_n Parameter Name Example SIP_2NDPRSNC_ADDR_1, SIP_2NDPRSNC_ADDR_2, …, SIP_2NDPRSNC_ADDR_6 Value Format String Description Specifies the IP address of the secondary presence server. Note • This setting is available only when "SIP_PRSNC_ADDR_n" is specified in IP address notation. Value Range IP address in dotted-decimal notation Default Value...
Page 201: Port_Punch_Intvl_N
Section 5 Configuration File Programming Description Specifies whether to enable the cancelation of registration before the SIP function shuts down when, for example, the configuration has changed. Value Range • Y (Enable registration cancelation before shutting down) • N (Disable registration cancelation before shutting down) Note •...
Page 202: Sip_Subs_Expire_N
Section 5 Configuration File Programming Value Format Boolean Description Specifies whether to add the port parameter to the Request-Line in the initial SIP request. Value Range • Y (Add the port parameter) • N (Do not add the port parameter) Note •...
Page 203: Reg_Rtx_Intvl_N
Section 5 Configuration File Programming REG_RTX_INTVL_n Parameter Name Example REG_RTX_INTVL_1, REG_RTX_INTVL_2, …, REG_RTX_INTVL_6 Value Format Integer Description Specifies the interval, in seconds, between transmissions of the REGISTER request when a registration results in failure (server no reply or error reply). Note •...
Page 204: Sdp_User_Id_N
Section 5 Configuration File Programming Value Range • Y (Add "user=phone") • N (Do not add "user=phone") Note • SIP URI example: – "sip:1111@tokyo.example.com;user=phone", when set to "Y" – "sip:1111@tokyo.example.com", when set to "N" Default Value SDP_USER_ID_n Parameter Name Example SDP_USER_ID_1, SDP_USER_ID_2, …, SDP_USER_ID_6 Value Format String...
Page 205: Sip_Outproxy_Port_N
Section 5 Configuration File Programming SIP_OUTPROXY_PORT_n Parameter Name Example SIP_OUTPROXY_PORT_1, SIP_OUTPROXY_PORT_2, …, SIP_OUTPROXY_PORT_6 Value Format Integer Description Specifies the port number to use for communication with the SIP outbound proxy server. Value Range 1–65535 Default Value 5060 Web User Interface Reference Outbound Proxy Server Port (Page 91) SIP_TRANSPORT_n Parameter Name Example...
Page 206: Sip_Anm_Hostname_N
Section 5 Configuration File Programming Value Range • 0 (Use normal user name) • 1 (Use "anonymous" for user name) • 2 (Do not send a user name) Default Value SIP_ANM_HOSTNAME_n Parameter Name Example SIP_ANM_HOSTNAME_1, SIP_ANM_HOSTNAME_2, …, SIP_ANM_HOSTNAME_6 Value Format Boolean Description Specifies whether to set an anonymous host name in the "From"...
Page 207: Sip_Contact_On_Ack_N
Section 5 Configuration File Programming Description Specifies whether to check the username part of the SIP URI in the "To" header when receiving the INVITE message with an incorrect target SIP URI. Value Range • Y (Enable username check) • N (Disable username check) Note •...
Page 208: Sip_Timer_F_N
Section 5 Configuration File Programming Default Value 5000 Web User Interface Reference Timer D (Page 95) SIP_TIMER_F_n Parameter Name Example SIP_TIMER_F_1, SIP_TIMER_F_2, …, SIP_TIMER_F_6 Value Format Integer Description Specifies the value of SIP timer F (non-INVITE transaction timeout timer), in milliseconds. For details, refer to RFC 3261. Value Range 250–64000 Default Value...
Page 209: Add_Expires_Header_N
Section 5 Configuration File Programming Description Specifies whether to add the attribute "transport=udp" to the SIP header URI. Value Range • Y (Add Transport UDP) • N (Do not add Transport UDP) Default Value ADD_EXPIRES_HEADER_n Parameter Name Example ADD_EXPIRES_HEADER_1, ADD_EXPIRES_HEADER_2, …, ADD_EXPIRES_HEADER_6 Value Format Boolean...
Page 210: Sip_Response_Code_Dnd
Section 5 Configuration File Programming SIP_RESPONSE_CODE_DND Value Format Integer Description Selects the response code when a call is received in Do Not Disturb mode. Value Range 400–699 Default Value SIP_RESPONSE_CODE_CALL_REJECT Value Format Integer Description Selects the response code when a call is rejected. Value Range 400–699 Default Value...
Page 211: Useful Telephone Functions
Section 6 Useful Telephone Functions This section explains some of the main telephone features. Document Version 2012-07 Administrator Guide...
Page 212: Registering One-Touch Buttons And Blf Buttons
You can register One-touch buttons and BLF (extension status display) buttons by setting the configuration file as shown below (® see 5.6.4 Flexible Button Settings). For more details about flexible buttons, refer to the Operating Instructions on the Panasonic Web site (® see Introduction).
Page 213: Adding Applications
Panasonic Web site (® see Introduction). Prepare an SD card. For details about supported SD cards, refer to the Panasonic Web site (® see Introduction). Save the application data in the root directory of the SD card. To install the application Press on the Home screen, and then tap [Settings].
Page 214: Dial Plan
Section 6 Useful Telephone Functions Note • For details about the administrator password, see 3.1.2 Phone User Interface Administrator Menu. 6.6 Dial Plan The dial plan settings control how numbers dialed by the user are transmitted over the network. Dial plan settings can be configured on a per-line basis.
Page 215: Dial Plan Settings
Section 6 Useful Telephone Functions [Dial Plan Flowchart] When a user dials a single digit on a unit, the following sequence of events begins. A user dials a single digit on the unit. The unit stores each digit dialed before the inter-digit timer expires.
Page 216: Available Values For The Dial Plan Field
Section 6 Useful Telephone Functions For details about available characters for the dial format, see Available Values for the Dial Plan Field in this section. Select [Yes] or [No] for [Call Even If Dial Plan Does Not Match]. • If you select [Yes], the call will be made even if the user dials a phone number that does not match the dial format in [Dial Plan].
Page 217: Dial Plan Example
Section 6 Useful Telephone Functions Element Available Value Description Macro Timer T, t Example: "1x.T" If the dialed phone number begins with "1", the call is made after a lapse of "T" seconds. • The value of "T" or "t" can be configured through the Web user interface (®...
Page 218 Section 6 Useful Telephone Functions • If the dialed phone number is "21", "91" and so on when [Call Even If Dial Plan Does Not Match] is set to [No], the call is denied after the inter-digit timer expires. Example: "[2346789]11|01[2-9]x.|[2-9]xxxxxxxxx" •...
Page 219: Firmware Update
Section 7 Firmware Update This section explains how to update the firmware of the unit. Document Version 2012-07 Administrator Guide...
Page 220: General Information On Firmware Update
Section 7 Firmware Update 7.1 General Information on Firmware Update You can update the unit’s firmware to improve the unit’s operation. You can configure the unit so that it automatically downloads the new firmware file from a specified location. The firmware update will be executed when the unit is restarted.
Page 221: Executing Firmware Update
Section 7 Firmware Update Configuration Parameter Example By setting the parameters as shown in the following example, the unit will automatically download the firmware file from the specified URL, "http://firm.example.com/firm/UT670_01.050.bin", and perform the update operation if the currently used firmware version is older than 01.050. Example FIRM_UPGRADE_ENABLE="Y"...
Page 222: Firmware Update Using The Sd Card
• When the update is complete, the unit will automatically restart. • The update procedure may change. The latest update procedure is provided on the Panasonic Web site (® see Introduction). • For details about the administrator password, see 3.1.2 Phone User Interface Administrator Menu.
Page 223: Backup And Restore
Section 8 Backup and Restore This section explains how to back up data from and restore data to the unit. Document Version 2012-07 Administrator Guide...
Page 224: Backup And Restore
You can back up user data (including Web programming settings) to an SD card, or restore data from the SD card. Only the built-in applications are stored on the SD card. Third-party applications cannot be backed up. The data is saved onto the SD card as follows: Folder name /sdcard/kx-ut670 Backup data file name YYYYMMDDHHMM(UTC)_backup.dat Note •...
Page 225 Section 8 Backup and Restore Note • After the restoring is completed, the unit will restart automatically. • You cannot operate the unit during the restore. • If the unit’s firmware version changes between backup and restore, the data cannot be restored. •...
Page 226 Section 8 Backup and Restore Administrator Guide Document Version 2012-07...
Page 227: Resetting The Unit
Section 9 Resetting the Unit This section explains how to reset the unit. Document Version 2012-07 Administrator Guide...
Page 228: Resetting To Factory Default And Clearing Data/Settings
® to select the resetting type, and then tap Note • For details about the key sheet, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). • Data stored on the SD card is not erased.
Page 229 Section 9 Resetting the Unit Note • The settings configured through the phone user interface only will not be reset. However, settings that can be configured through both the phone user interface and Web user interface will be reset. Document Version 2012-07 Administrator Guide...
Page 230 Section 9 Resetting the Unit Administrator Guide Document Version 2012-07...
Page 231: Troubleshooting
Section 10 Troubleshooting This section provides information about troubleshooting. Document Version 2012-07 Administrator Guide...
Page 232: Troubleshooting
Edited data is not saved. • If you open another screen while editing data, the data may not be saved. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). The Phone screen is not displayed after •...
Page 233 • The ringer volume is turned off. Adjust the ringer volume. For details about the operations, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). • Check the VoIP status in [Phone status] on the unit’s notification screen, or tap [Settings] ®...
Page 234 Cause/Solution Some keys on the USB keyboard do not • Check which keys can be used on the unit. For details, work. refer to the Operating Instructions on the Panasonic Web site (® see Introduction). Administrator Guide Document Version 2012-07...
Page 235: Checking The Status Of The Unit
Section 10 Troubleshooting Firmware Update Problem Cause/Solution Firmware update using the SD card does • Confirm that the firmware is saved in the root directory of not work. the SD card. • Firmware cannot be updated while on a call. End the current call.
Page 236 Section 10 Troubleshooting Administrator Guide Document Version 2012-07...
Page 237: Open Source Software
Section 11 Open Source Software Parts of this product use Open Source Software. Relevant conditions apply to this software. Panasonic cannot accept inquiries regarding the content of the following copyright and license information. Document Version 2012-07 Administrator Guide...
Page 238: License Information
Section 11 Open Source Software 11.1 License Information You can check the license information of open source software on the unit’s screen. To check the license information Press on the Home screen, and then tap [Settings]. Tap [About phone] and then select [Legal information]. Tap [Open source licenses].
Page 239: Appendix
Section 12 Appendix Document Version 2012-07 Administrator Guide...
Page 240: Revision History
Section 12 Appendix 12.1 Revision History 12.1.1 Software File Version 01.030 New Contents • 2.4.1 Configuration File Programming Methods (Page 25) • 2.4.4 XML Provisioning (Page 32) • 4.6.4.1 Quality of Service (QoS)—RTCP Packet QoS (DSCP) (Page 100) • 4.6.4.4 DTMF—DTMF Relay (Page 102) •...
Page 241: Software File Version 01.070
Section 12 Appendix • 5.2.1 Configuration File Specifications for Plain Text Provisioning (Page 135) • 5.4.2 System Time Settings—TIME_ZONE_COUNTRY (Page 141) • 10.1 Troubleshooting—SD Cards (Page 234) 12.1.2 Software File Version 01.070 New Contents • 4.4.2.2 LLDP Settings → LLDP (Page 74) →...
Page 242 Section 12 Appendix Administrator Guide Document Version 2012-07...
Page 243: Index
Index Document Version 2012-07 Administrator Guide...
Page 244 Index Change User Password Numerics Channel 1–25 1–30 Characters Available for String Values Checking the Status of the Unit CODEC Preferences Codec Settings 132, 176 Access Level 52, 62 Codec Settings, Examples Access Levels (IDs and Passwords) 61, 62 CODEC_ENABLEx_n Accessing the Web User Interface CODEC_G711_REQ ADD_EXPIRES_HEADER_n...
Page 245 Index DIAL_TONE4_GAIN FIRSTDIGIT_TIM DIAL_TONE4_TIMING Flash Hook Event Direct Commands Flash/Recall Button Directed Call Pickup FLASH_RECALL_TERMINATE DISCONNECTION_MODE FLASHHOOK_CONTENT_TYPE Display Name FLEX_BUTTON_FACILITY_ACTx DISPLAY_DATE_PATTERN FLEX_BUTTON_FACILITY_ARGx DISPLAY_NAME_n FLEX_BUTTON_LABELx DISPLAY_NAME_REPLACE Flexible Button Settings 131, 175 DISPLAY_TIME_PATTERN Flexible Buttons FWD_DND_SYNCHRO_ENABLE_n DNS Server DNS1 68, 72 DNS2 68, 72 G722 (Enable) Do Not Disturb...
Page 246 Index NUMBER_MATCHING_UPPER_DIGIT NW_SETTING_ENABLE LAN Port Language Language Selection 16, 22, 61, 82 Language Selection for the Unit One-touch Buttons Line 1–Line 6 ONHOOK_TRANSFER_ENABLE Line No. Opening/Closing the Web Port Line Settings 132, 184 OPTION66_ENABLE LINE_ENABLE_n OS Version Link Speed/Duplex Mode Other Network Settings LLDP OUTBANDDTMF_n...
Page 247 Index Registering One-touch Buttons and BLF Buttons SIP Source Port Registrar Server Address SIP URI Registrar Server Port SIP User Agent Related Documentation SIP_100REL_ENABLE_n Reliability of Provisional Responses 96, 198 SIP_18X_RTX_INTVL_n Reorder Tone SIP_2NDPROXY_ADDR_n REORDER_TONE_FRQ SIP_2NDPROXY_PORT_n REORDER_TONE_GAIN SIP_2NDPRSNC_ADDR_n REORDER_TONE_TIMING SIP_2NDPRSNC_PORT_n Reset SIP_2NDRGSTR_ADDR_n Reset to Defaults...
Page 248 Index Standard File URL Transport Protocol Static IP Address Transport Protocol for SIP Static NAPT Settings Troubleshooting Static Settings Statistical Information Status Unconditional (Enable Call Forward) Status Tab 52, 66 Unconditional (Phone Number) STUN Server 80, 157 USE_DEL_REG_CLOSE_n STUN Server Address USE_DEL_REG_OPEN_n STUN Server Port USER_ID...
Page 249 Notes Document Version 2012-07 Administrator Guide...
Page 250 Copyright: This material is copyrighted by Panasonic System Networks Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic System Networks Co., Ltd. Panasonic System Networks Co., Ltd. 2011...
