1 Getting Started

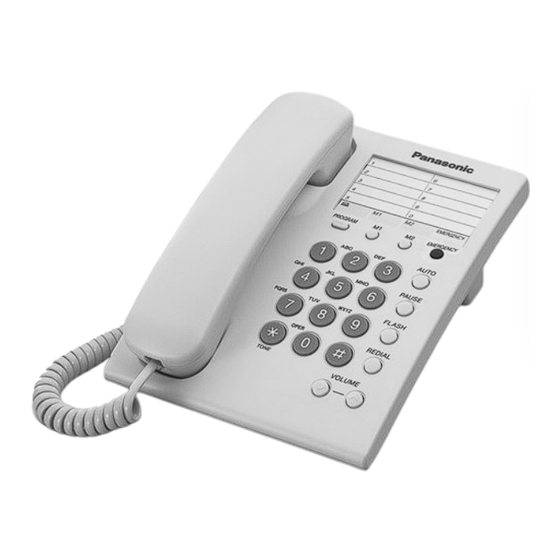

1-A Location of Controls
Integrated Telephone System
Operating Instructions
DIALING MODE Selector (1-B)
KX-TS550B
Model No.
RINGER Selector (1-B)
KX-TS550W
Pulse-or-tone dialing capability
($) (TONE) Button (5-B)
KX-TS550W
VOLUME (_), (^)
Buttons (2-A)
PLEASE READ BEFORE USE AND SAVE.
Panasonic World Wide Web:
http://www.panasonic.com
for customers in the USA or Puerto Rico
3 Speed Dialer
Attach your purchase receipt here.
For your future reference 3-A Storing Phone Numbers in Memory
Serial No.
You can store up to 10 phone numbers in the
(found on the bottom of the unit) memory stations. The dialing buttons ((0) to (9))
function as memory station numbers. Do not
Date of purchase
press any memory stations before storing to
prevent misoperation.
Name and address of dealer
1
Lift the handset.
2
Press (PROGRAM).
If you need assistance with the set-up or 3
Press (AUTO).
operation,
please call 1-800-211-PANA(7262) 4
Press a memory station number ((0) to (9)).
5
Enter a phone number up to 21 digits.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of
6
Press (PROGRAM).
America
One Panasonic Way, Secaucus, New Jersey 07094 7
When finished, hang up.
Panasonic Sales Company, ≥To store other numbers, repeat steps 1 through 7.
Division of Matsushita Electric of Puerto Rico, Inc.
≥If a pause is required for dialing, press (PAUSE) in
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial
Park Carolina, Puerto Rico 00985 step 5. A pause stored in a phone number counts as
one digit (5-C).
Printed in Mexico PQQX13992ZA F0803-0 D
Accessories (included)
(PROGRAM) Button (3-A, 4-A)
∑ Handset. . . . . . . one ∑ Telephone Line Cord
One-Touch Auto Dial
. . . . . . . . . . . . . one
Buttons ((M1), (M2)
Order No.
and (EMERGENCY) )
PQJXE0401Z (Black) Order No.
(4-A, 4-B)
PQJXE0411Z (White) PQJA10075Z
∑ Handset Cord. . . one
Order No.
PQJA212N (Black)
PQJA212M (White)
≥For extra orders, call 1-800-332-5368.
(AUTO) Button
(3-A)
(PAUSE) Button
(5-C)
(FLASH) Button (5-A)
(REDIAL) Button (2-A)
If you misprogram
Hang up.¤ Restart from step 1.
To erase a stored number
(PROGRAM)
Lift the handset.¤ Press
¤ (AUTO) ¤ the memory station number
(0) (9) ) of the phone number to be erased ¤
( to
¤ ¤ ¤ Hang up.
(PAUSE) (PROGRAM).
Speed Dial Card
Remove the speed dial card and use it as a name
or phone number index for the stored numbers.
For assistance, please call: 1-800-211-PANA(7262)
" Getting Started
1-B Settings
1 3
Connect the telephone line cord (1). Set the DIALING MODE selector to TONE.
≥If you cannot dial, set to PULSE.
2
Connect the handset cord (2), then confirm
the dial tone.
Single-Line
Telephone Jack (RJ11C)
Telephone Line Cord 4
Set the RINGER selector to HIGH, LOW or
1
OFF.
(Ex. "HIGH" is selected.)
DIALING MODE
Selector
RINGER Selector
2
≥When set to OFF, the unit will not ring.
Handset
Handset Cord
4
" Speed Dialer
3-B Dialing a Stored Number 4-A Storing Phone Numbers in Memory
1 You can store up to 3 phone numbers in the
Lift the handset.
one-touch auto dial buttons ((M1), (M2) or
2 Press (AUTO).
(EMERGENCY)).
Do not press any one-touch auto dial buttons
3 Press the memory station number ((0) to (9)).
before storing to prevent misoperation.
¤
≥The stored number is dialed.
≥The (REDIAL) button does not work for Speed Dialer. It is recommended that you program an
emergency number in the (EMERGENCY) button.
To dial the number again, hang up and repeat steps 1
to 3.
1
≥If the telephone line cord is disconnected more than Lift the handset.
3 days, the stored numbers may be erased. Store
2 Press (PROGRAM).
phone numbers again, if necessary.
3 Press a one-touch auto dial button ((M1), (M2)
or (EMERGENCY)).
4
Enter a phone number up to 21 digits.
5 Press (PROGRAM).
6
When finished, hang up.
≥To store other numbers, repeat steps 1 through 6.
For assistance, please call: 1-800-211-PANA(7262)
2 Making/Answering Calls
2-A Making Calls
DIALING MODE
TONE PULSE
RINGER
VOLUME (_), (^) Buttons
HIGH OFF
(REDIAL) Button
1
Lift the handset.
2
Dial a telephone number.
≥If you misdial, hang up and start again from step 1.
3
When finished talking, hang up.
One-Touch Dialer
≥If a pause is required for dialing, press (PAUSE) in
step 4. A pause stored in a phone number counts as
one digit (5-C).
≥WHEN PROGRAMMING EMERGENCY NUMBERS
AND(OR) MAKING TEST CALLS TO EMERGENCY
NUMBERS:
1) Remain on the line and briefly explain to the
dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such
as early morning or late evenings.
If you misprogram
Hang up.¤ Restart from step 1.
To erase a stored number
Lift the handset.¤ Press
¤ the one-touch auto dial button (
(EMERGENCY) ) of the phone number to be
erased ¤ ¤
(PAUSE) (PROGRAM)
To redial the last number dialed
Lift the handset. ¤ Press (REDIAL).
≥(REDIAL) will dial the last number you called
manually, not a Speed Dialer number (3-B) or
One-Touch Dialer number (4-B).
To adjust the receiver volume (6 levels) while
talking
To increase, press (^).
To decrease, press (_).
≥Each time you press the button, the volume level will
change.
≥After hanging up, the volume level will be saved.
2-B Answering Calls
1
When the unit rings, lift the handset.
2
When finished talking, hang up.
" One-Touch Dialer
4-B Dialing a Stored Number
1
Lift the handset.
2
Press the one-touch auto dial button ((M1),
(M2) or (EMERGENCY)).
≥The stored number is dialed.
≥The (REDIAL) button does not work for One-Touch
Dialer. To dial the number again, hang up and repeat
steps 1 and 2.
≥If the telephone line cord is disconnected more than
3 days, the stored numbers may be erased. Store
phone numbers again, if necessary.
(PROGRAM) ¤
(M1), (M2) or
.¤ Hang up.
